Front Bulkhead Lower Trim Replacement

Front Bulkhead Lower Trim Replacement

NOTE:

- Take care not to scratch the front bumper or the body.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front bumper Front Bumper.

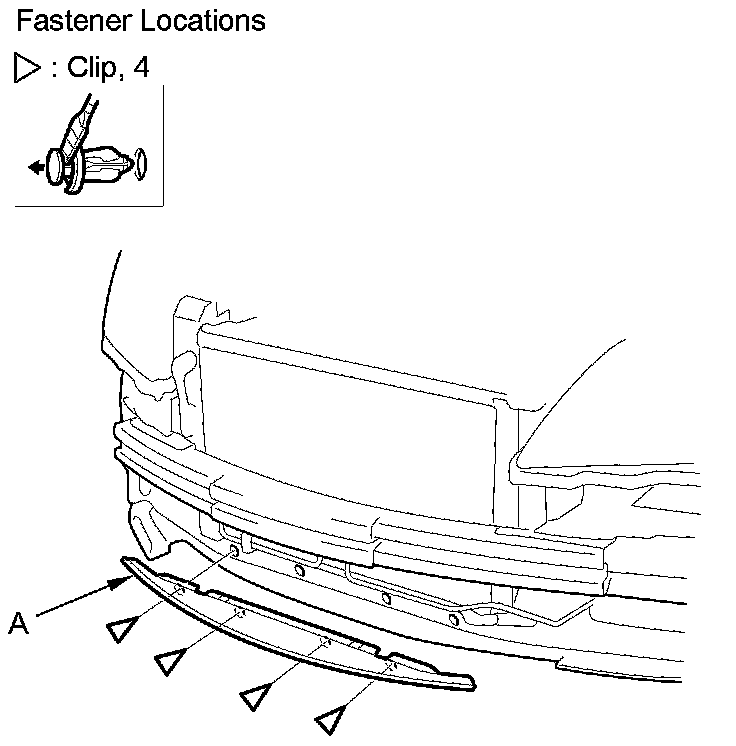

2. Remove the clips, then remove the front bulkhead lower trim (A).





3. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
