Floor Well Cover Carpet Removal/Installation

Floor Well Cover Carpet Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the center console or the second row center seat.

2. Remove both second row seats.

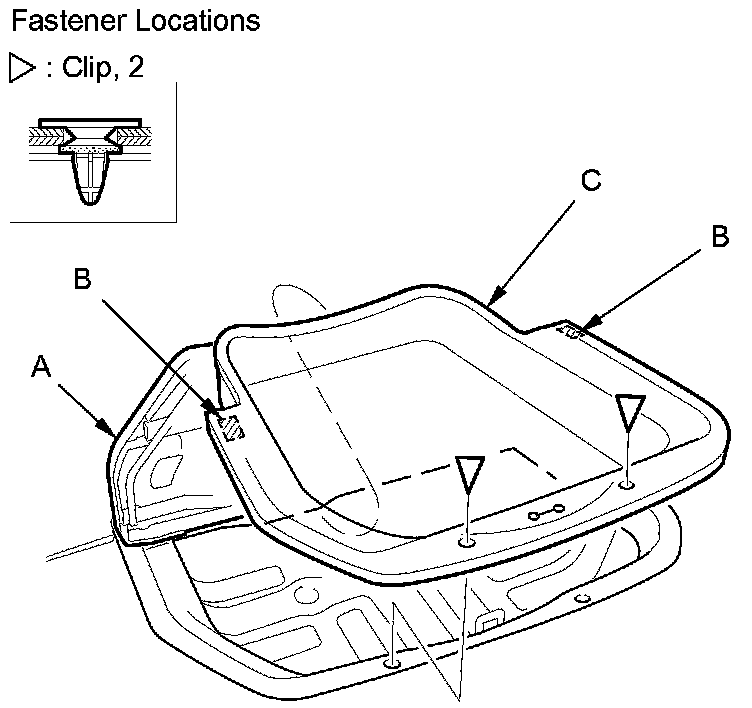

3. Open the floor well cover (A). Detach the clips, and release the Velcro fasteners (B), then remove the floor well cover carpet (C).





4. Install the floor well cover carpet in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the fasteners and the clips into place securely.
