Drink Holders: Service and Repair

Beverage Holder Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove the dashboard center lower cover Dashboard Center Lower Cover Removal/Installation.

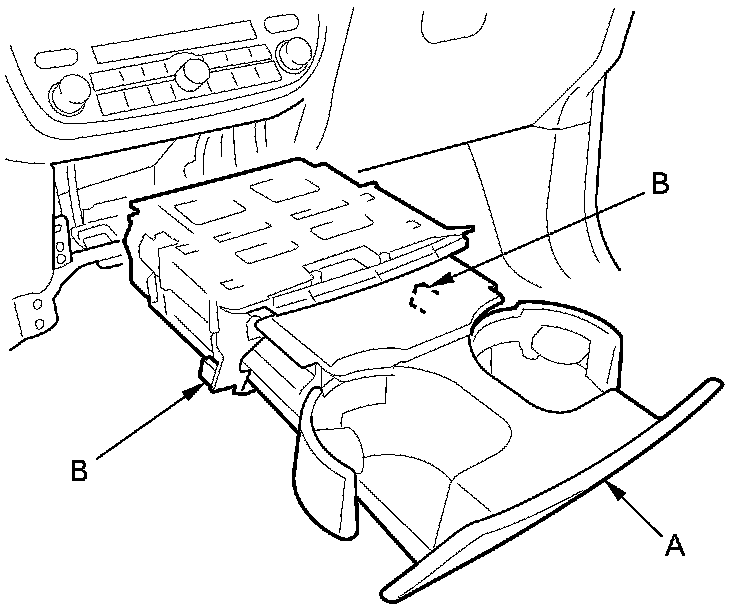

2. Open the beverage holder (A), and remove the screws.






3. Pull out the beverage holder (A) to release the bosses (B), then remove the holder.





4. Install the holder in the reverse order of removal.
