Glove Compartment Lock Cylinder: Service and Repair

Lower Glove Box Lock Cylinder Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the glove box or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the lower glove box Lower Glove Box Removal/Installation.

2. Remove the lid (A). Remove the screws, and remove the lock handle (B).

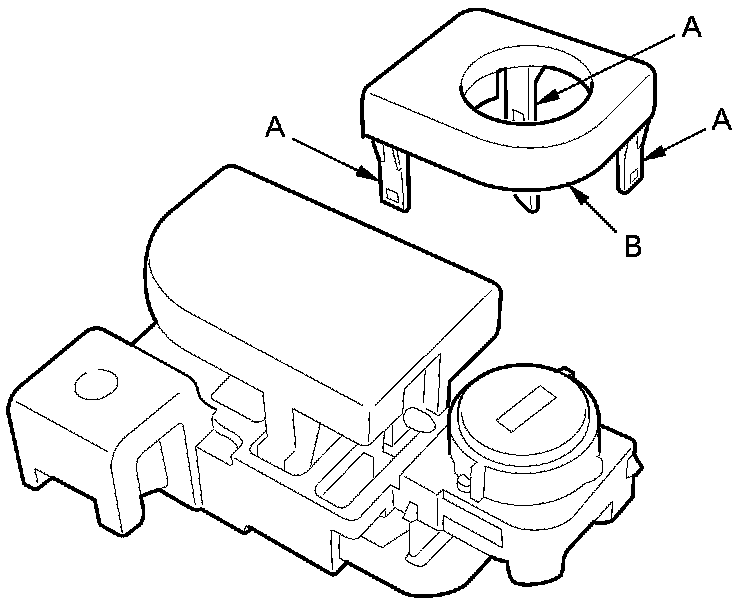

3. Release the hooks (A), then remove the lock cylinder cover (B).

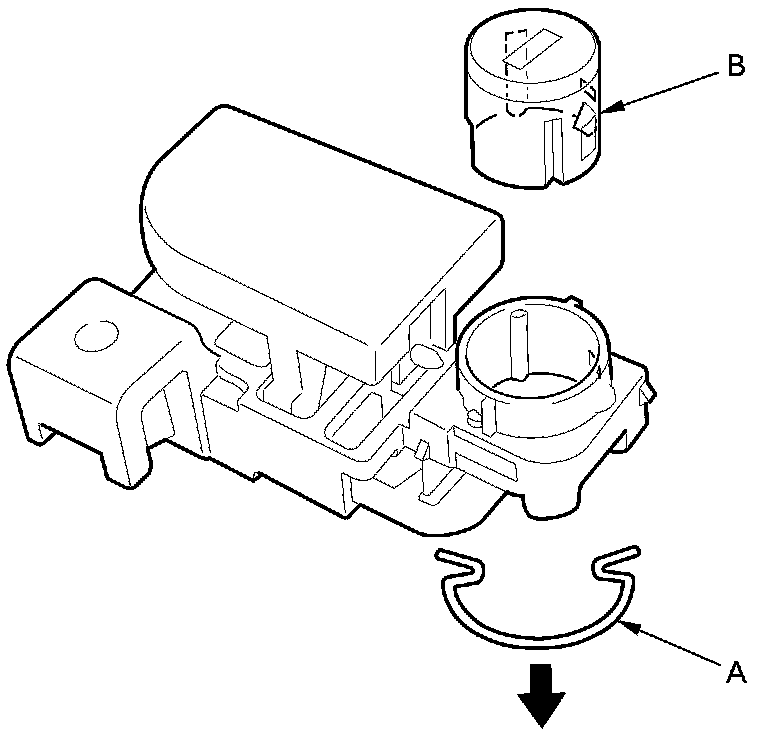

4. Pull one end of the retainer (A) out of its slot with a hook-shaped tool, then remove the lower glove box lock cylinder (B).

NOTE: Wear eye protection during this step.





5. Insert the retainer into the lock body, then push the lock cylinder into the lock cylinder body until it snaps into the retainer.

6. Install the lock cylinder in the reverse order of removal.
