Glove Compartment Lock: Service and Repair

Lower Glove Box Striker Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove the dashboard/steering hanger beam Dashboard/Steering Hanger Beam Removal/Installation.

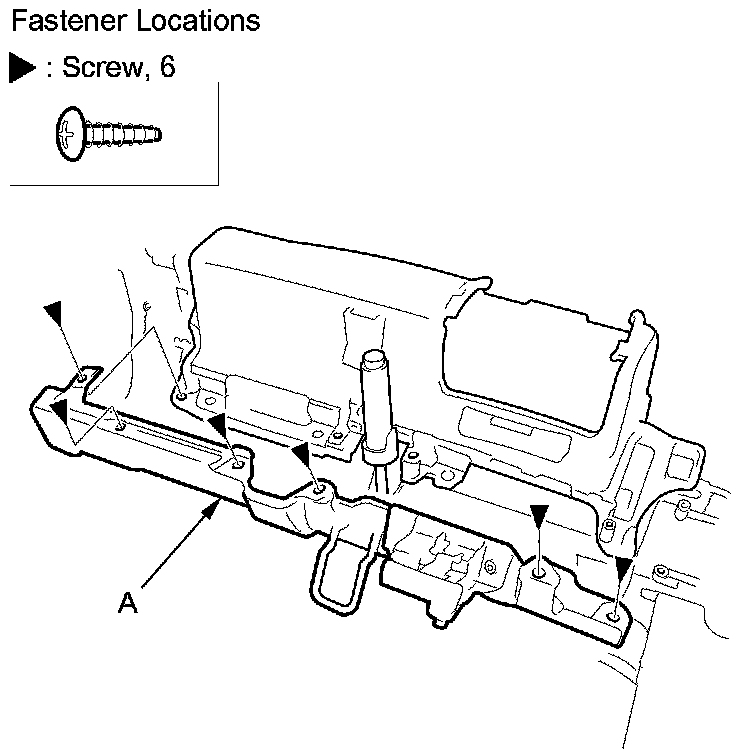

2. Remove the screws and the lower glove box striker (A).





3. Install the lower glove box striker in the reverse order of removal.
