Lower Glove Box Removal/Installation

Lower Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

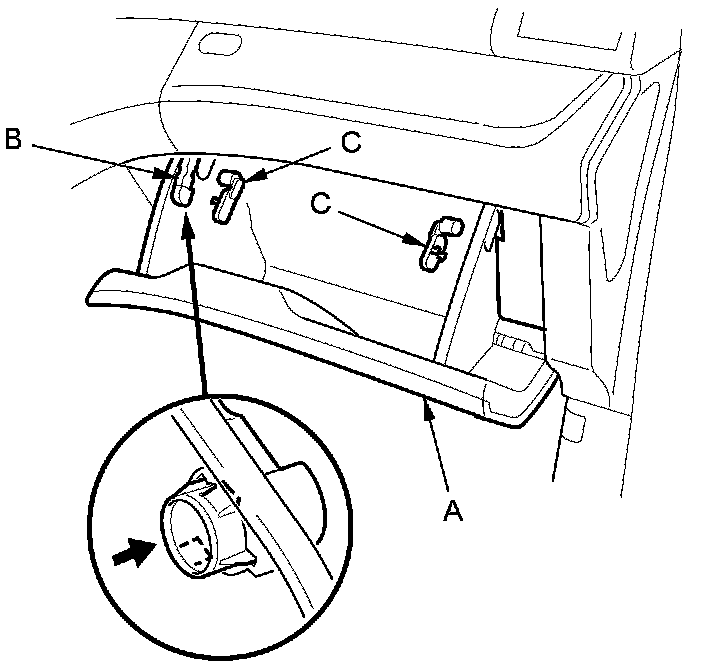

1. While holding the lower glove box (A), release the lower glove box damper (B), and remove the glove box stop (C) on each side.

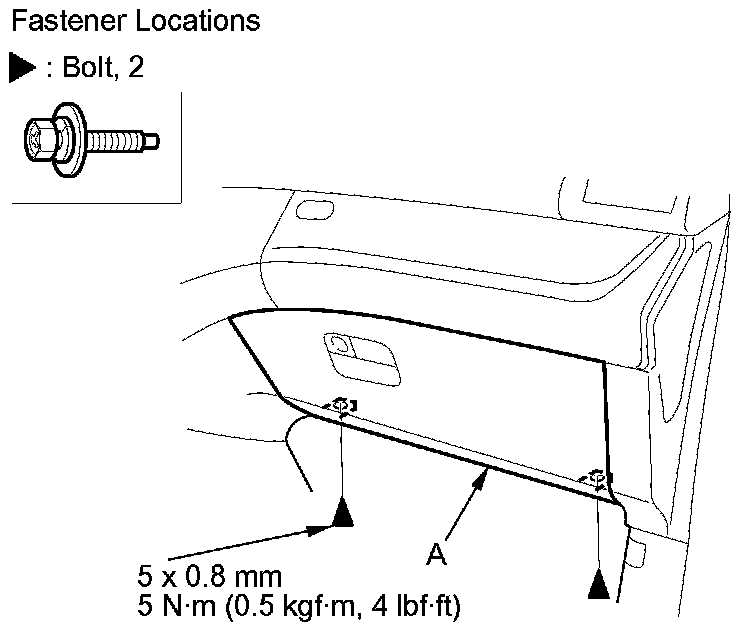

2. Remove the bolts, then remove the lower glove box (A).





3. Install the lower glove box in the reverse order of removal.
