Upper Glove Box Lid Damper Removal/Installation

Upper Glove Box Lid Damper Removal/Installation

NOTE: Take care not to scratch the glove box lid or the related parts.

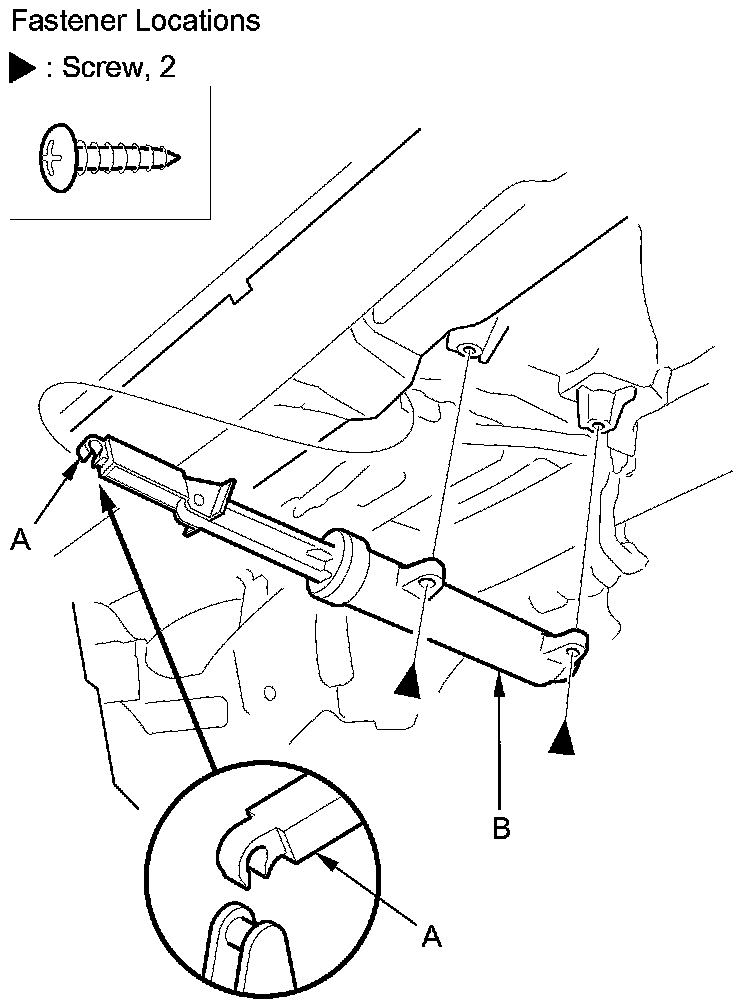

1. Disconnect the damper arm (A) from the upper glove box lid.





2. Remove the screws, then remove the upper glove box lid damper (B).

3. Install the damper in the reverse order of removal.
