Upper Glove Box Lid Removal/Installation

Upper Glove Box Lid Removal/Installation

NOTE: Take care not to scratch the glove box lid or the related parts.

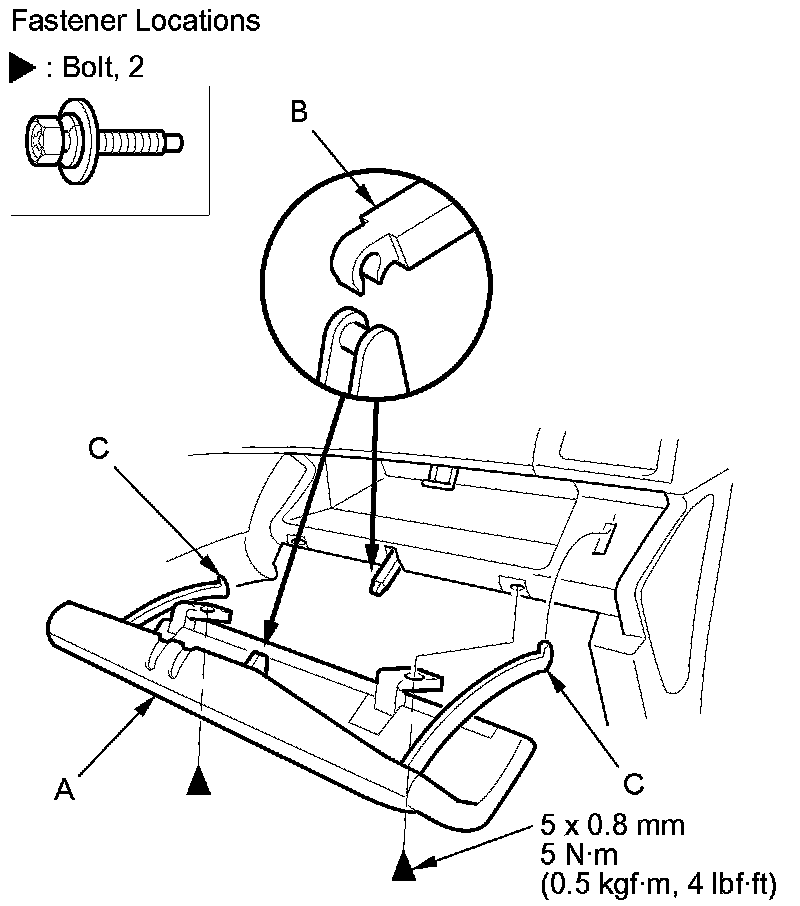

1. Remove the upper glove box lid (A).

1. Open the glove box.

2. Disconnect the damper arm (B).

3. Remove the bolts, release the hooks (C), and then remove the lid.





2. Install the lid in the reverse order of removal.
