Upper Glove Box Pocket Removal/Installation

Upper Glove Box Pocket Removal/Installation

NOTE: Take care not to scratch the upper glove box or the related parts.

1. Remove the lower glove box striker Service and Repair.

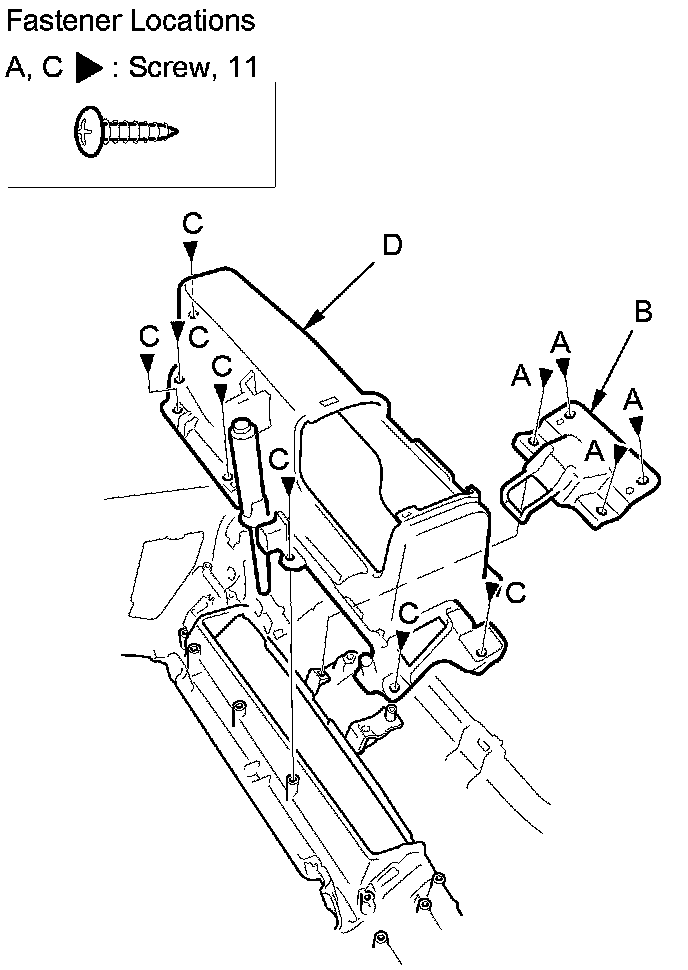

2. Remove the screws (A), and the upper glove box lid striker (B). Remove the screws (C) and the upper glove box pocket (D).





3. Install the pocket in the reverse order of removal.
