Front Passenger's Door Lock Switch Test

Front Passenger's Door Lock Switch Test

1. Remove the front passenger's power window switch Passenger's Power Window Switch Test/Replacement.

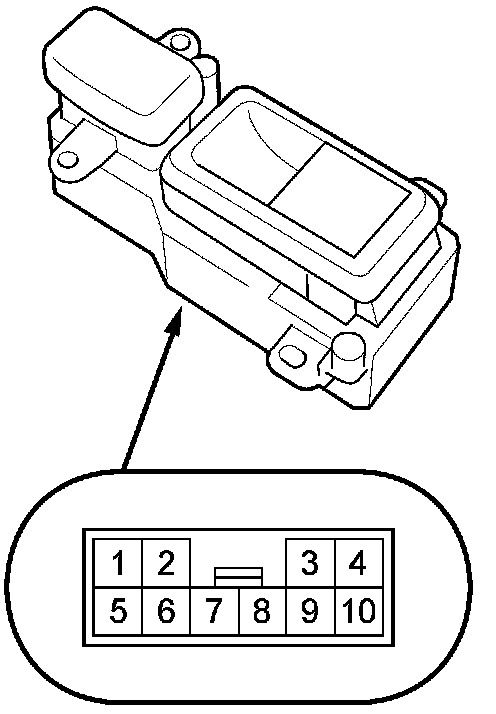

2. Disconnect the 10P connector from the switch.





3. Check for continuity between the terminals.

- There should be continuity between terminals No. 2 and No. 9 when the door lock switch is in the LOCK position and no continuity when the switch is in the UNLOCK position.
- There should be continuity between terminals No. 1 and No. 9 when the door lock switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

4. If the continuity is not as specified, replace the front passenger's power window assembly.
