Power Mirror Actuator Replacement (Without DPMS)

Power Mirror Actuator Replacement

Except '08-10 Touring models

Removal

1. Remove the mirror holder Mirror Holder Replacement and power mirror Power Mirror Replacement (Without DPMS).

2. Disconnect the 8P connector from the power mirror.

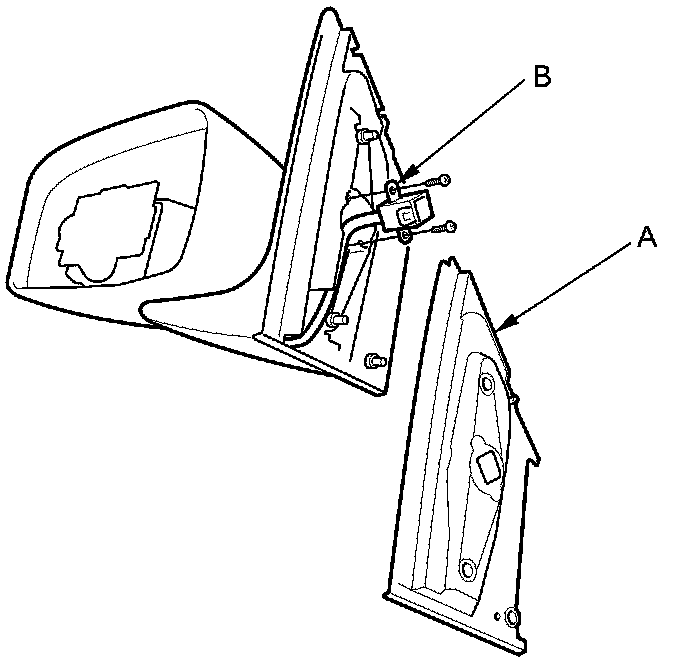

3. Remove the gasket (A), then remove the two screws from the 8P connector (B).





4. Record the terminal location and wire harness colors.

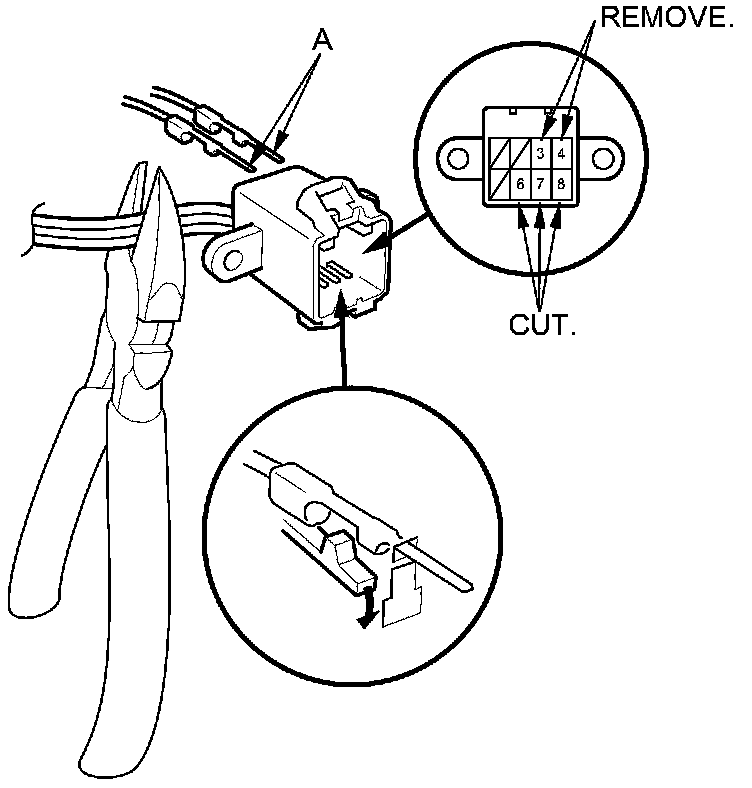

5. With mirror defogger: disconnect terminals No. 3 and No. 4 (A) of the mirror wire harness from the 8P connector.






6. Cut the wire harness with wire cutters.

7. Remove the three terminals from the connector.

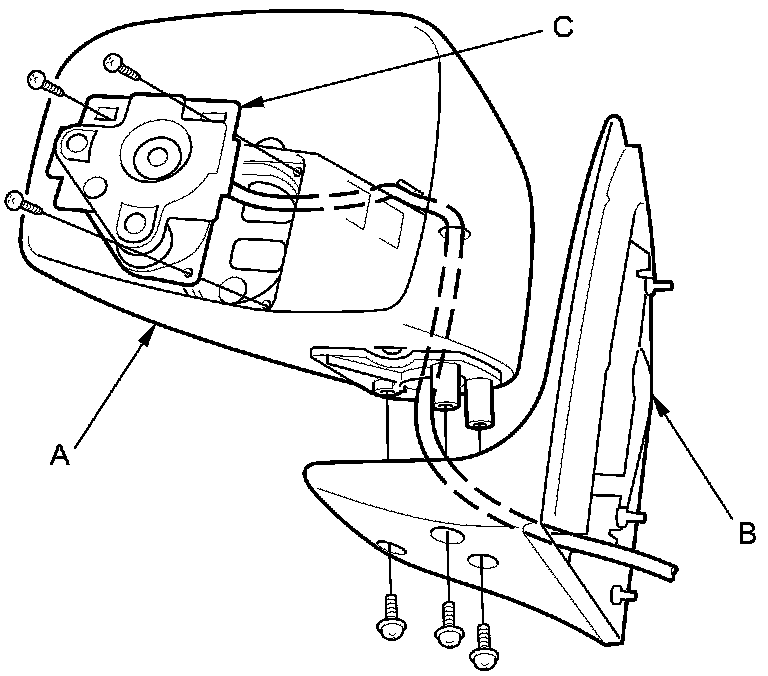

8. Remove the three screws and separate the housing (A) and bracket (B).





9. Remove the three screws and the power mirror actuator (C).

Installation

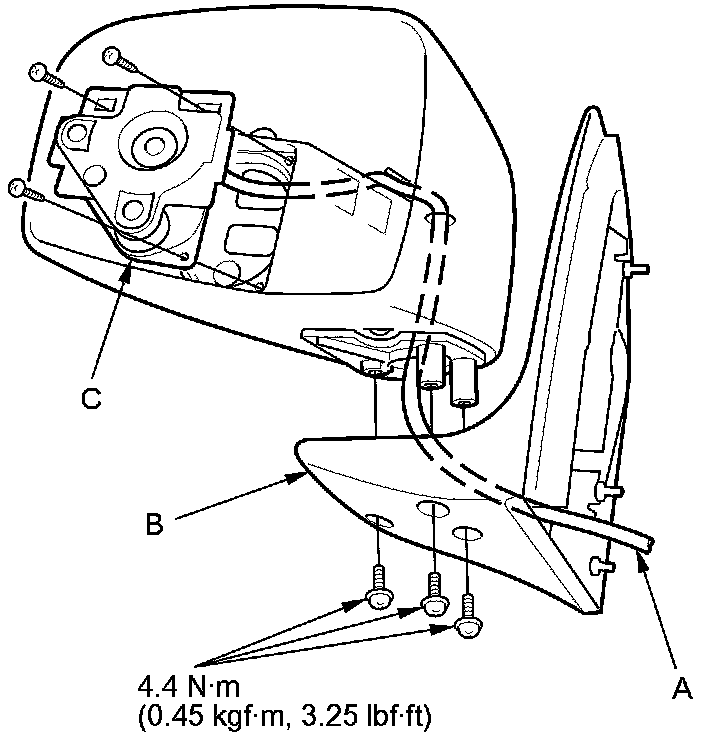

10. Route a new actuator harness (A) through the bracket (B), and install the actuator (C) in the reverse order of removal.

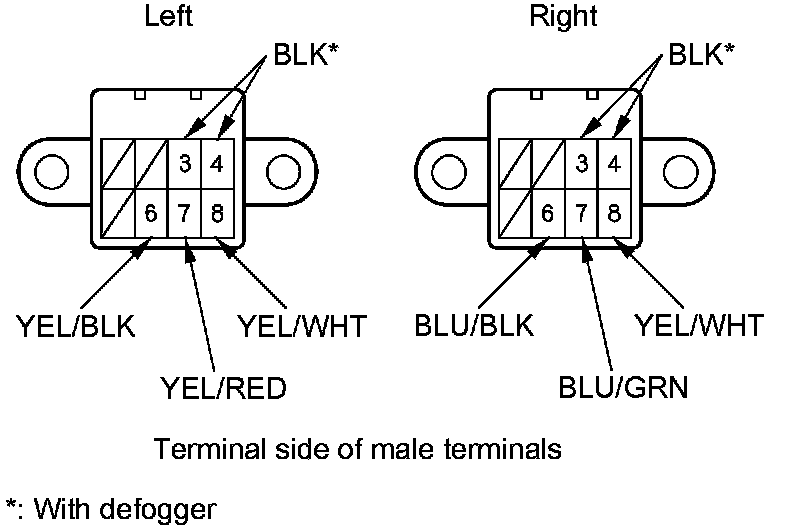

11. Insert the terminals into the connector in the original arrangement as shown.





12. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when reinstalling it to the actuator Mirror Holder Replacement.

13. Reinstall the mirror assembly to the door.

14. Operate the power mirror to ensure smooth operation.
