Power Mirror Replacement (With DPMS)

Power Mirror Replacement

With Driving Position Memory System (DPMS)

NOTE: Take care not to scratch the door.

1. Lower the door glass fully.

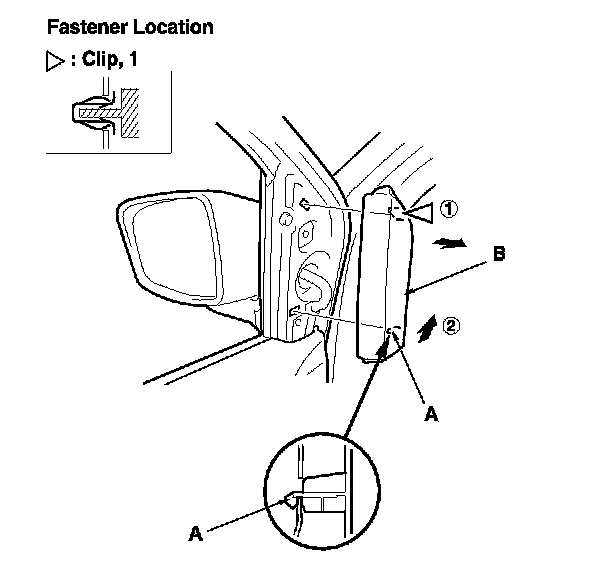

2. With your hand, carefully detach the clip, lift the mirror mount cover upward to release the hook (A), and remove the cover (B) in the sequence shown.





3. Remove the door panel Service and Repair.

4. Disconnect the power mirror connector (A).





5. While holding the power mirror, remove the nuts securing the mirror.

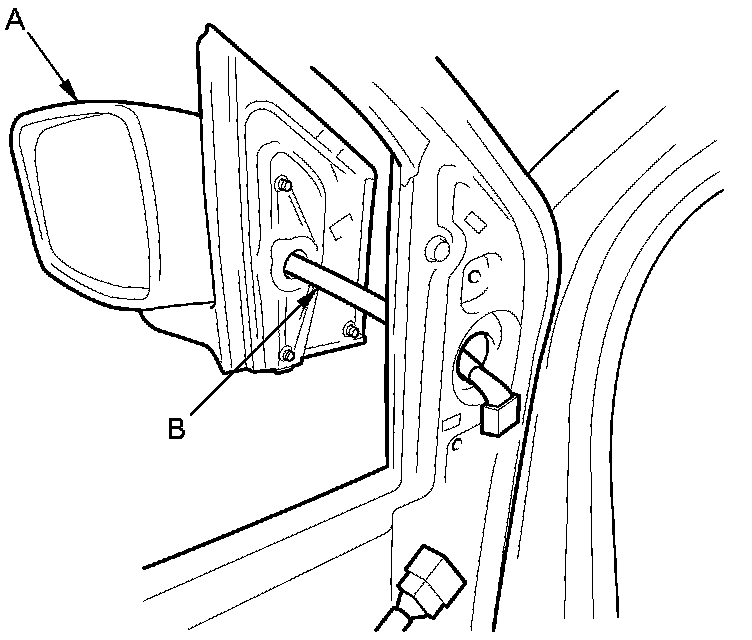

6. While holding the power mirror (A), pull out the harness (B) through the hole in the door.





7. Install the power mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Push the hook into place securely.
