Power Mirror Replacement (Without DPMS)

Power Mirror Replacement

Without Driving Position Memory System (DPMS)

NOTE: Take care not to scratch the door.

1. Lower the door glass fully.

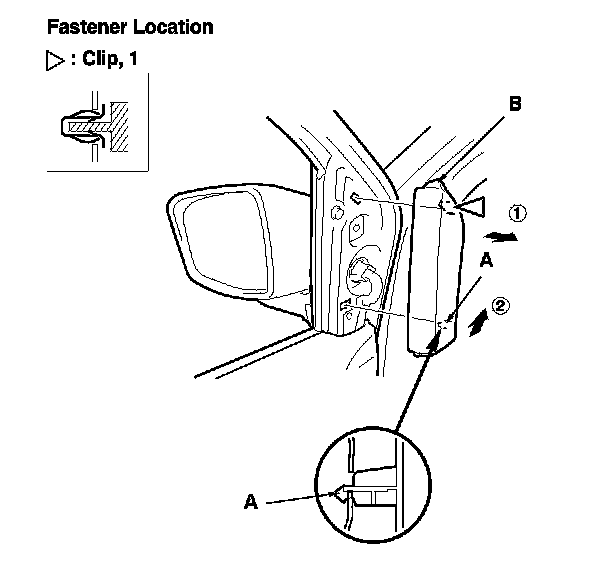

2. With your hand, carefully detach the clip, lift the mirror mount cover upward to release the hook (A), and remove the cover (B) in the sequence shown.

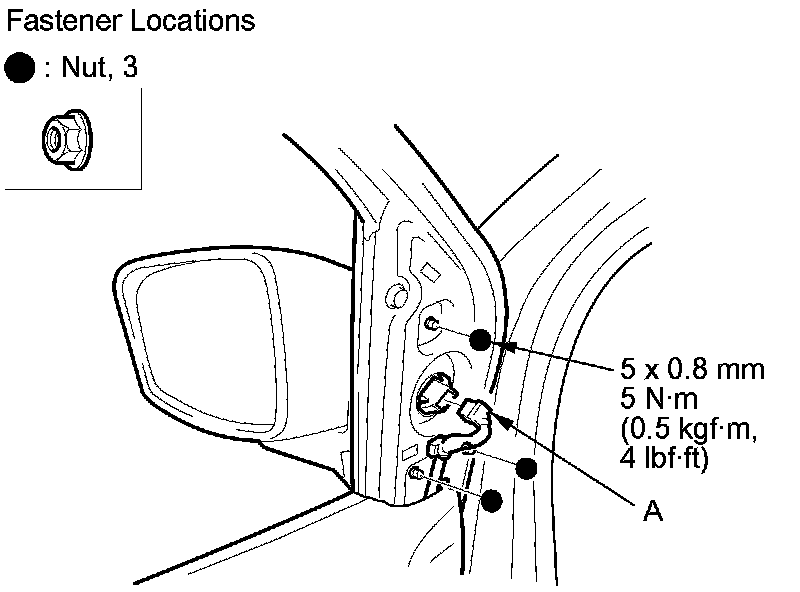

3. Disconnect the power mirror connector (A).





4. While holding the power mirror, remove the nuts securing the mirror.

5. While holding the power mirror (A), squeeze the retaining tabs on the connector clip (B), then push out to remove the power mirror.





6. Install the power mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- Push the hook into place securely.
