Power Mirror Actuator Test (With DPMS)

Power Mirror Actuator Test

'08-10 Touring models

NOTE:

- For additional troubleshooting information, refer to Driving Position Memory System (DPMS) Locations.
- For the '08-10 Touring models, refer to the circuit diagram.
- The power mirror actuator can be tested by using the HDS by following these steps:
- Select BODY ELECTRICAL from the SYSTEM SELECT MENU.
- Select FUNCTION TESTS, and then the appropriate power mirror function test.
- If the mirror fails to work properly;

1. Remove the door panel Service and Repair.

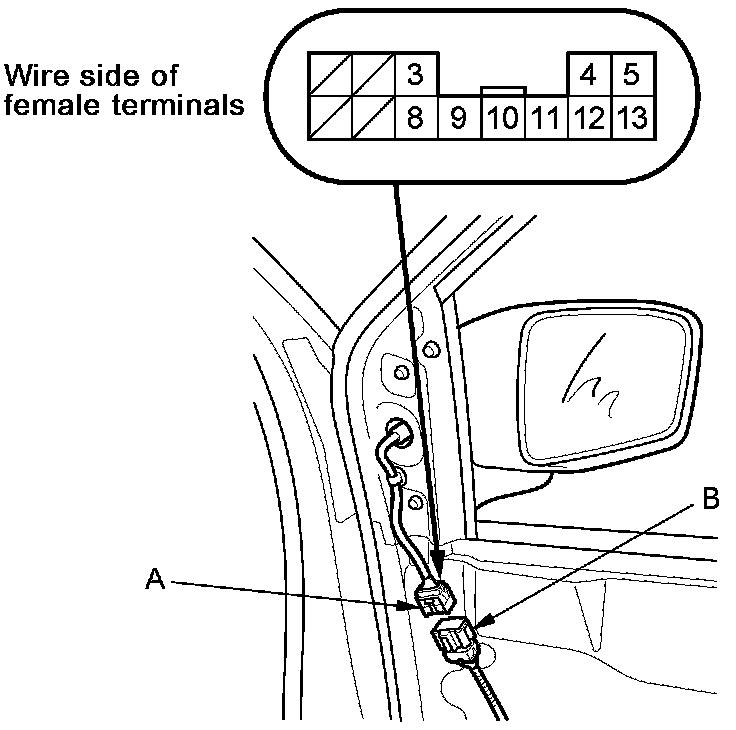

2. Disconnect the 13P connector (A) from the door wine harness (B).

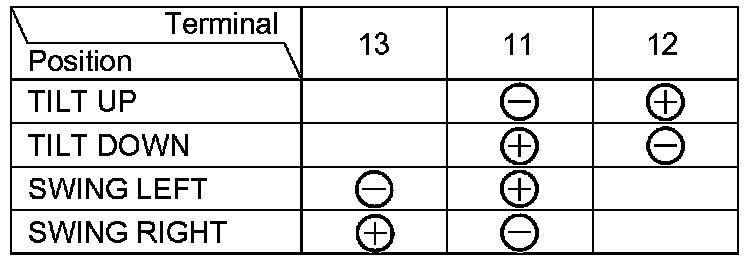

3. Check actuator operation by connecting power and ground according to the table.





4. If the mirror fails to work properly, replace the mirror actuator.

Defogger Test

5. Reconnect the 13P connector to the mirror actuator, turn the ignition switch to ON (II) and the mirror defogger switch is ON.

6. Measure the voltage between terminals No. 8 and No. 9 of the 13P connector. There should be battery voltage. If there is no voltage, check for an open or high resistance in the wire. If voltage is as specified and the mirror fails to warm up, replace the mirror holder.
