Power Mirror Actuator Test (Without DPMS)

Power Mirror Actuator Test

Except '08-10 Touring models

NOTE: The power mirror actuator can be tested by using the HDS by following these steps:

- Select BODY ELECTRICAL from the SYSTEM SELECT MENU.
- Select FUNCTION TESTS, and then the appropriate power mirror function test.
- If the mirror fails to work properly;

1. Remove the door panel Service and Repair and the mirror mount cover Power Mirror Replacement (Without DPMS).

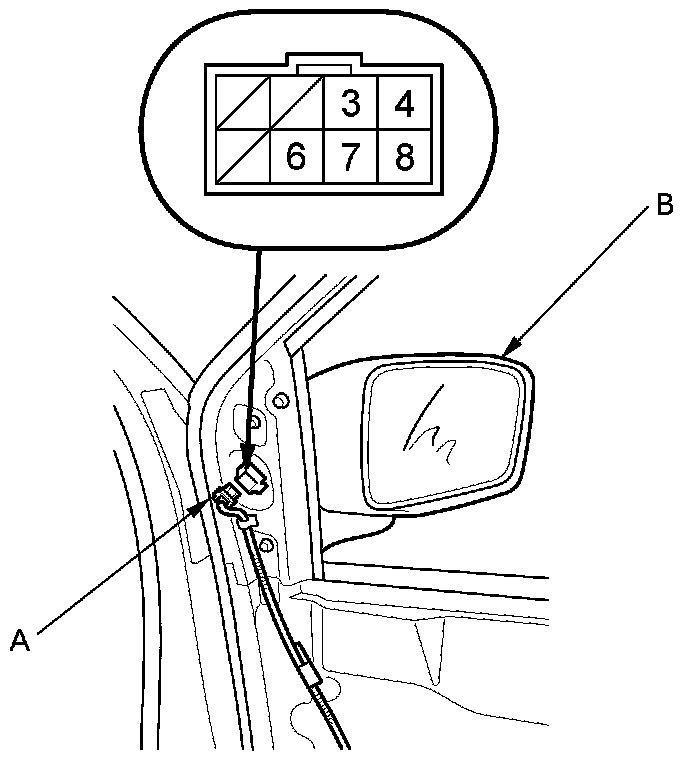

2. Disconnect the 8P connector (A) from the power mirror actuator (B).

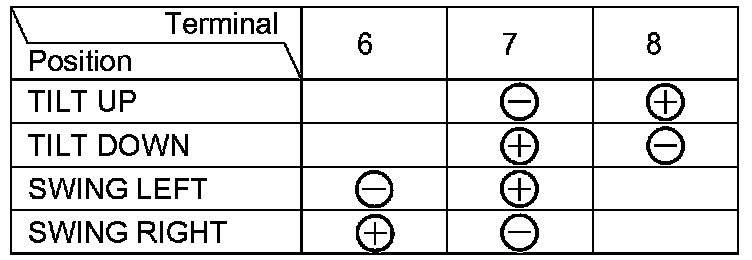

3. Check actuator operation by connecting power and ground according to the table.





4. If the mirror fails to work properly, replace the mirror actuator.

Defogger Test

5. Reconnect the 8P connector to the mirror actuator, turn the ignition switch to ON (II) and the mirror defogger switch is ON.

6. Measure the voltage between terminals No. 3 and No. 4 of the 8P connector. There should be battery voltage. If there is no voltage, check for an open or high resistance in the wire. If voltage is as specified and the mirror fails to warm up, replace the mirror defoggers.
