Sunroof / Moonroof Windguard: Service and Repair

Moonroof Wind Deflector Replacement

NOTE: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Open the glass fully.

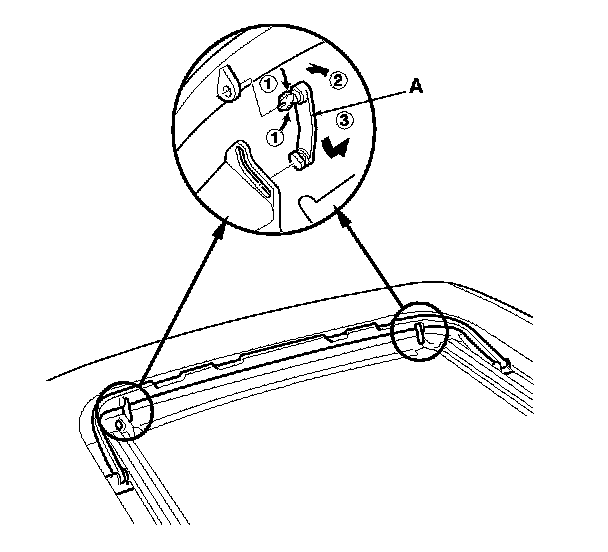

2. Remove the links (A) from both sides.

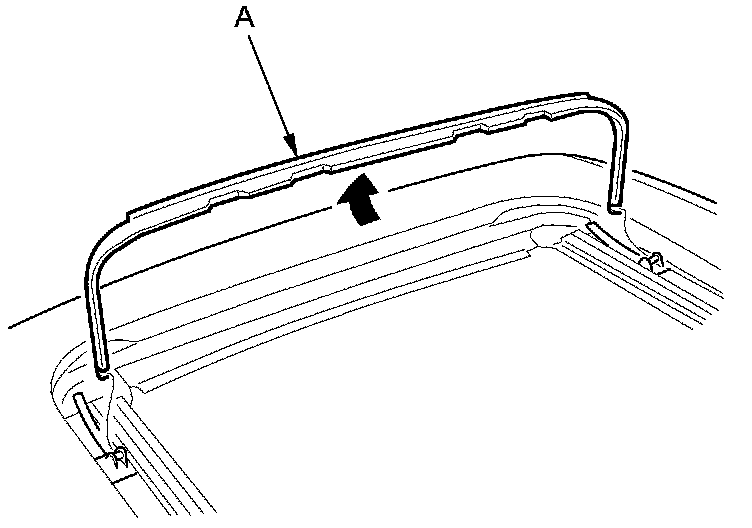

3. Remove the wind deflector (A).






4. Pry up on the deflector bases (A) with a flat-tip screwdriver, and release the hooks (B), then remove the bases with springs (C) from both sides.





5. Install the deflector in the reverse order of removal.
