Second Row Center Seat Side Frame Cover Replacement

Second Row Center Seat Side Frame Cover Replacement

NOTE:

- Take care not to tear or damage the seat covers.
- Put on gloves to protect your hands.

1. Remove the seat-back cover Second Row Center Seat-Back Cover Replacement.

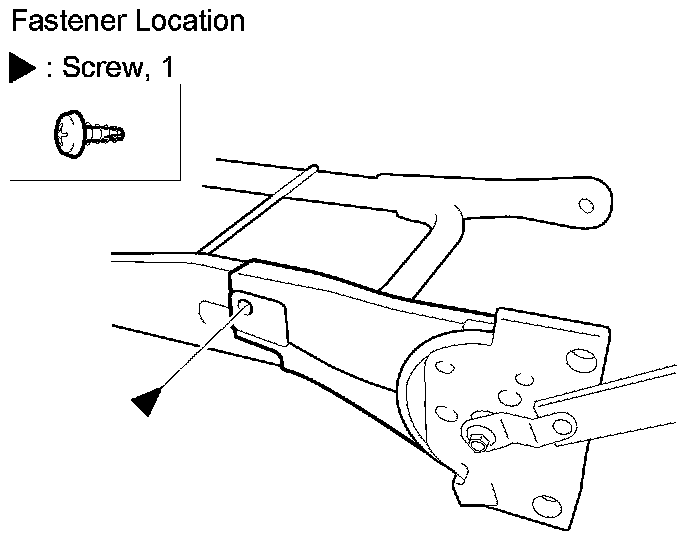

2. Remove the screw.

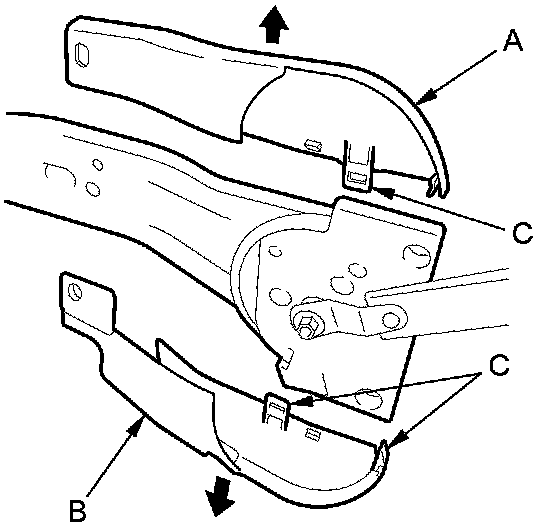

3. Release the hooks (C), then remove side frame cover A and side frame cover B.





4. Install the side frame covers in the reverse order of removal, and push the hooks into place securely.
