Third Row Seat Cover Replacement

Third Row Seat Cover Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to tear or damage the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Put on gloves to protect your hands.

Seat-back Cover

1. Remove the third row seat Third Row Seat Removal/Installation.

2. Remove the seat-back cover/pad from the seat frame Third Row Seat Disassembly/Reassembly.

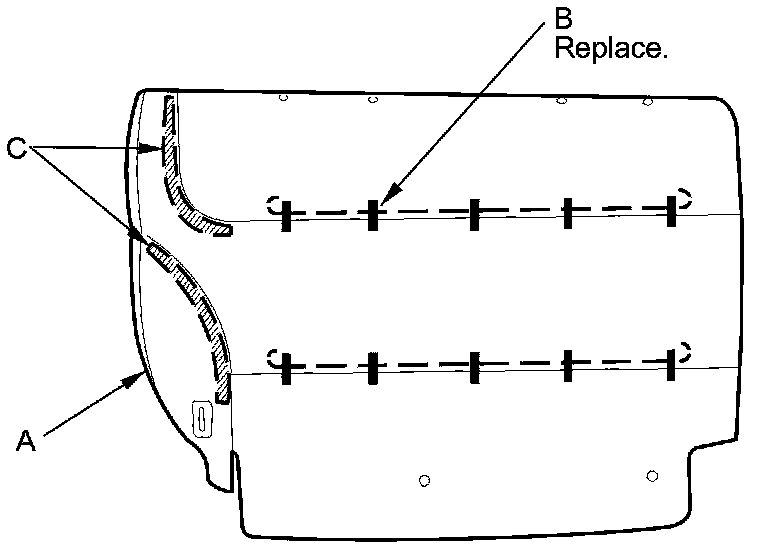

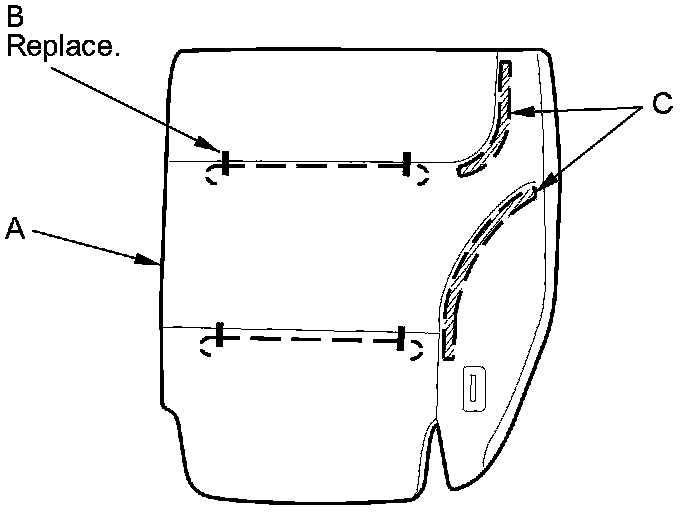

3. Pull the edge of the seat-back cover (A) back all the way around, and release the upholstery rings (B) and Velcro fasteners (C), then remove the cover.

Left third row seat





Right third row seat





4. Install the seat-back cover in the reverse order of removal, and note these items:

- To prevent wrinkles when installing the seat-back cover, make sure the material is stretched evenly over the pad before securing the hook and upholstery rings.

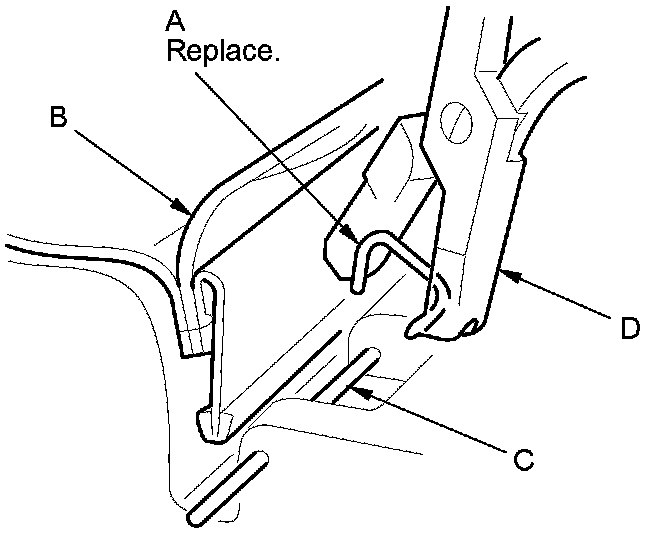

- Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).






Seat Cushion Cover

1. Remove the third row seat Third Row Seat Removal/Installation.

2. Remove the seat cushion cover/pad from the seat frame Third Row Seat Disassembly/Reassembly.

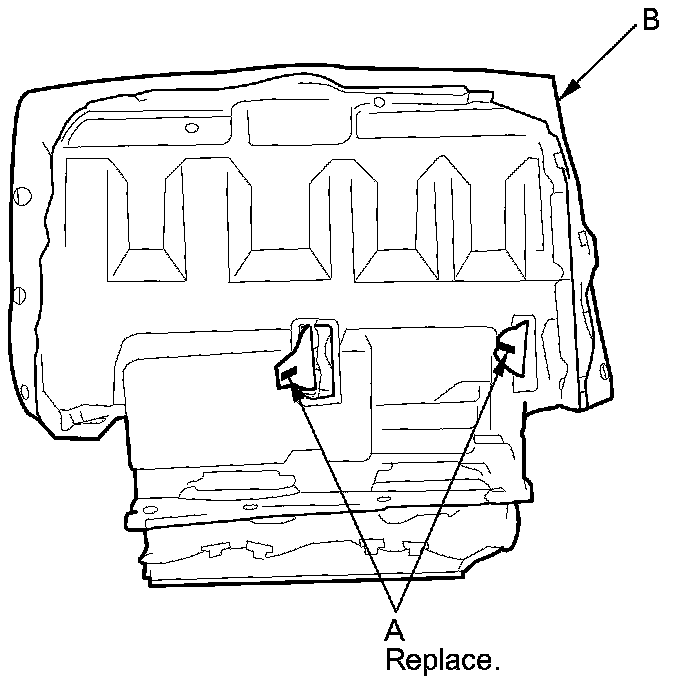

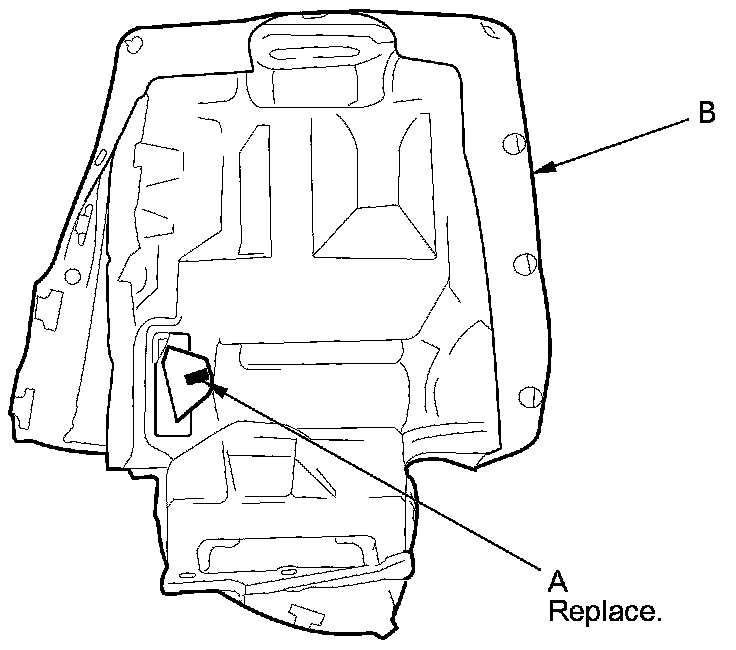

3. Release the upholstery rings (A) from under the seat cushion (B).

Left seat cushion





Right seat cushion

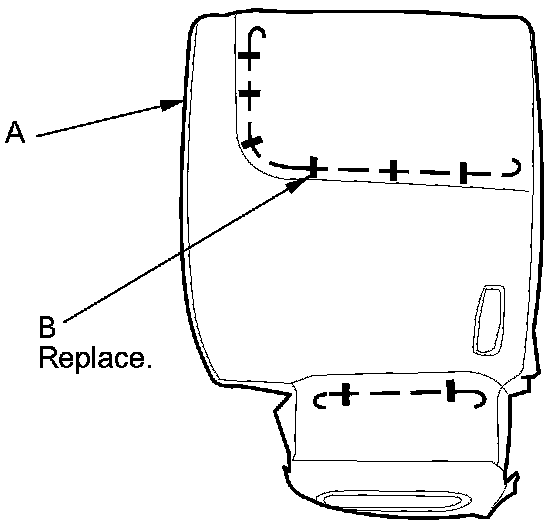

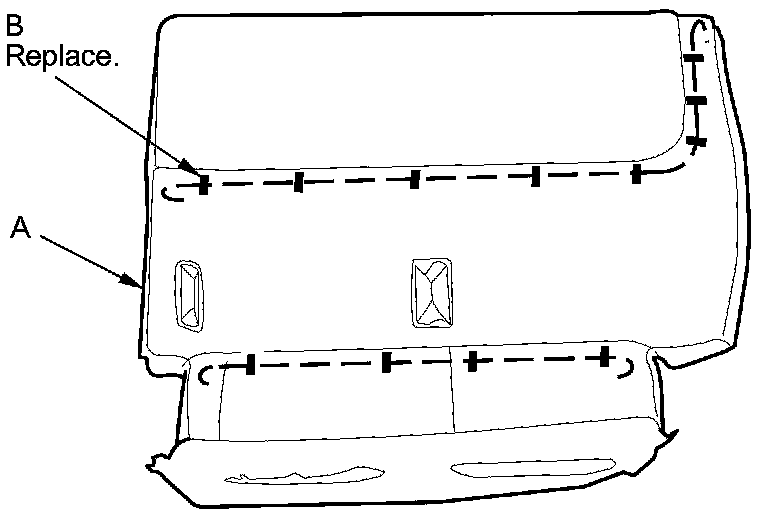

4. Pull back the edge of the seat cushion cover (A) all the way around, and release the upholstery rings (B), then remove the cover.

Left seat cushion





Right seat cushion





5. Install the seat cushion cover in the reverse order of removal, and note these items:

- To prevent wrinkles when installing the seat cushion cover, make sure the material is stretched evenly over the pad before securing all the clips.

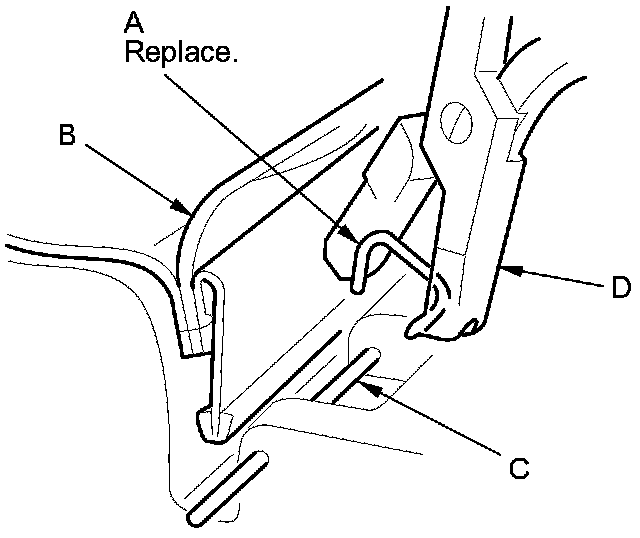

- Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
