Second Row Center Seat Interlock Cable Replacement

Second Row Center Seat Interlock Cable Replacement

For Some Models

NOTE: Take care not to scratch the seat or related parts.

1. Remove these items:

- Seat cushion
- Seat belt buckle Second Row Seat Belt Replacement
- Detachable seat belt buckle Second Row Seat Belt Replacement
- Recline cover
- Center cover
- Seat-back
- Base cover
- Base undercover
- Left outer riser cover
- Right outer and inner riser cover

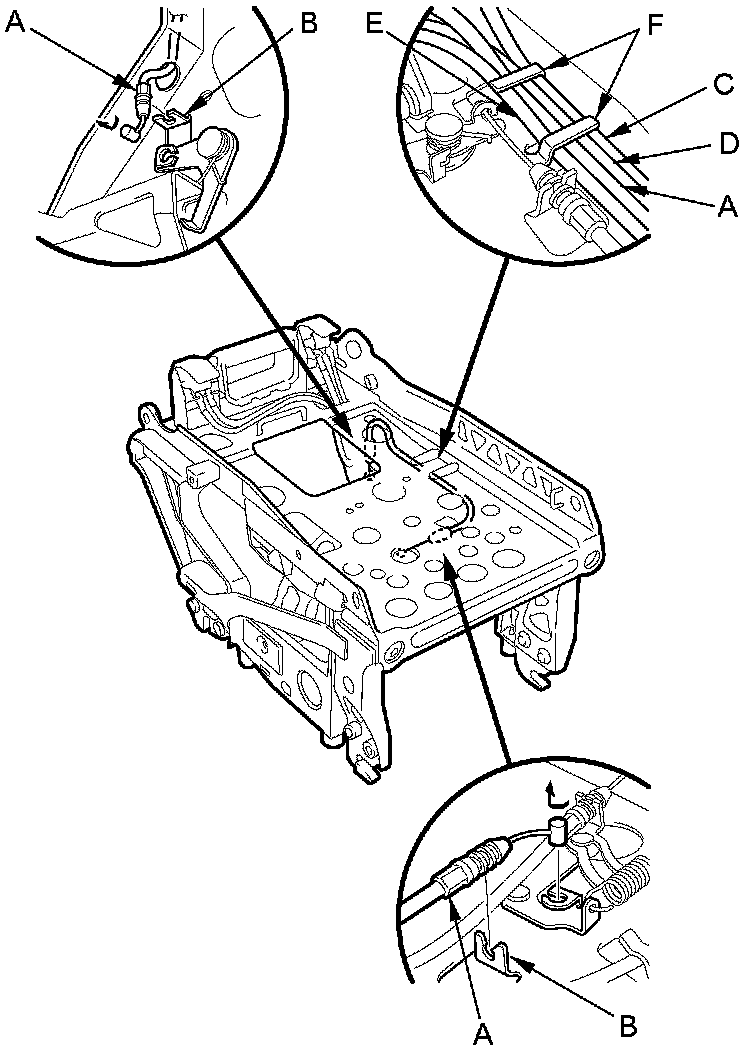

2. Remove the interlock cable (A).

1. Disconnect the interlock cable from the hooks (B).

2. Release the latch cable A (C), B (D), the interlock cable, and the lock cable A (E) from the hooks (F).





3. Install the interlock cable in the reverse order of removal, and make sure it is connected securely.
