Second Row Center Seat Latch Cable Replacement

Second Row Center Seat Latch Cable Replacement

For Some Models

NOTE: Take care not to scratch the seat or the related parts.

1. Remove these items:

- Seat cushion
- Seat belt buckle Second Row Seat Belt Replacement
- Detachable seat belt buckle Second Row Seat Belt Replacement
- Recline cover
- Center cover
- Seat-back
- Base cover
- Base undercover
- Left outer riser cover
- Right outer and inner riser cover

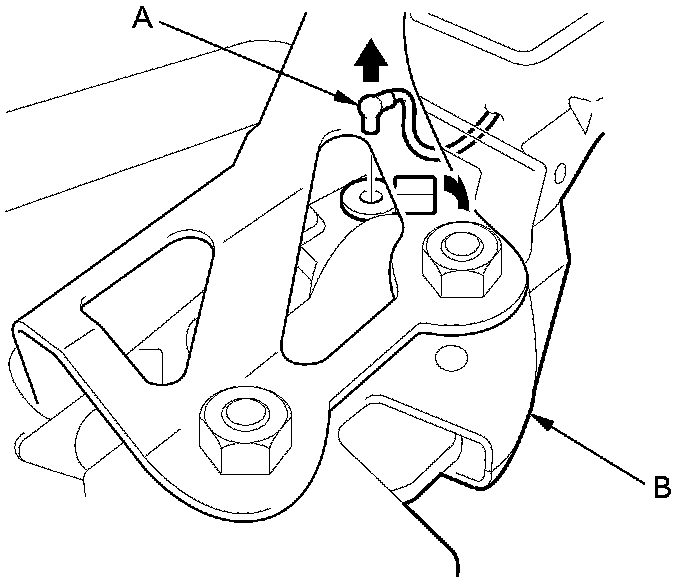

2. Disconnect the latch cable (A) from the latch (B).

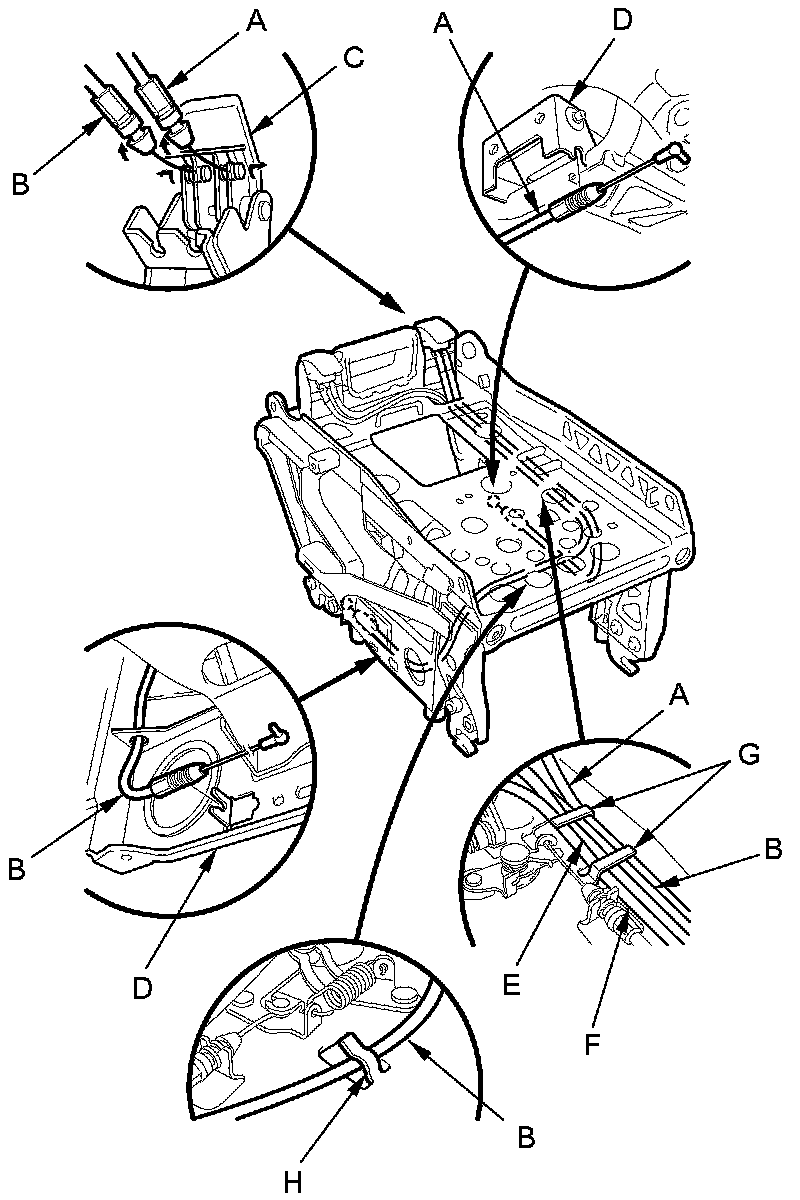

3. Remove the latch cables A and B.

1. Disconnect the latch cables from the lever (C).

2. Release the latch cables from the riser (D).

3. Release the latch cables, the inter lock cable (E), and the lock cable (F) from the hooks (G, H).





4. Install the latch cables in the reverse order of removal, and note these items:

- Make sure the latch cables are connected securely.
- Make sure the second row center seat latches and unlatches properly.
