Second Row Center Seat Lock Cable Replacement

Second Row Center Seat Lock Cable Replacement

NOTE: Take care not to scratch the seat or related parts.

1. Remove these items:

- Seat cushion
- Seat belt buckle Second Row Seat Belt Replacement
- Detachable seat belt buckle Second Row Seat Belt Replacement
- Recline cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Center cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Seat-back:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Seat back cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Base cover, '07 model
- Base undercover, '07 model
- Left outer riser cover, '07 model
- Right outer and inner riser cover, '07 model
- Upper cover, '08-10 models Second Row Center Seat Disassembly/Reassembly
- Lower cover, '08-10 models Second Row Center Seat Disassembly/Reassembly

2. Remove the lock cable A and B.

1. Disconnect the lock cables from the lever (C).

2. '07 model: Release the lock cable A, B, and the interlock cable (D),from the hooks (E, F).

3. '08-10 models: Release the lock cable A and B from the hooks (G).

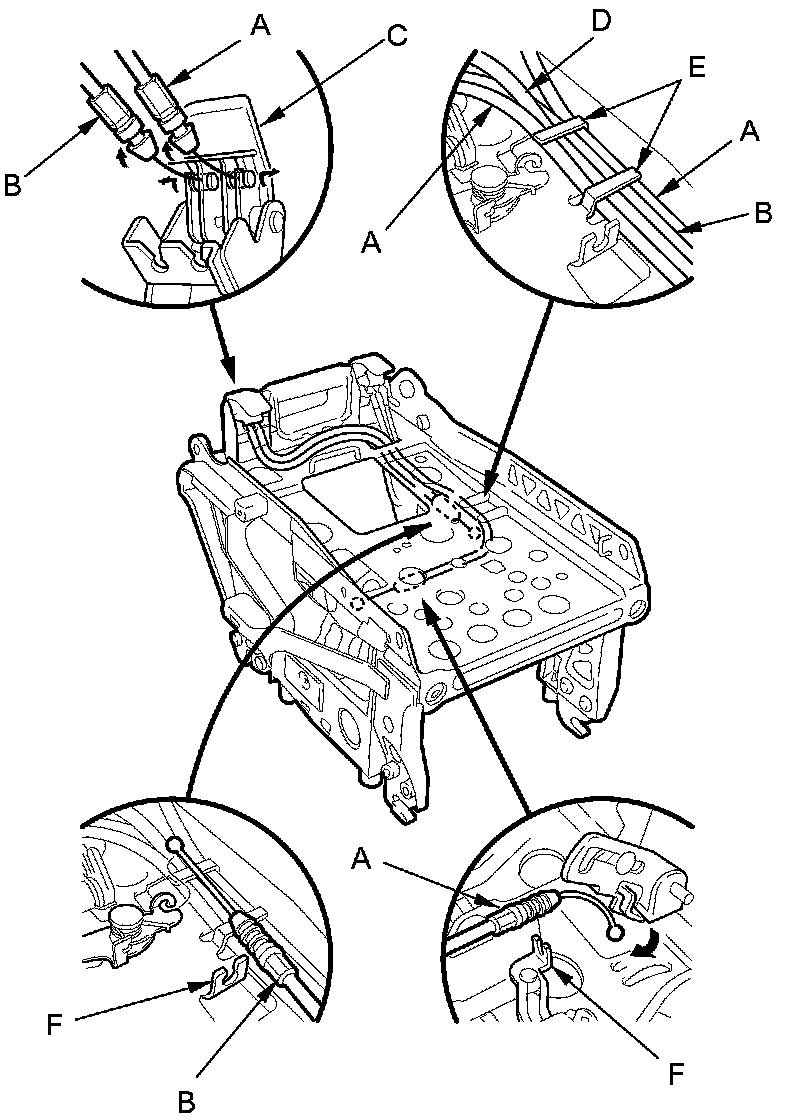

'07 model

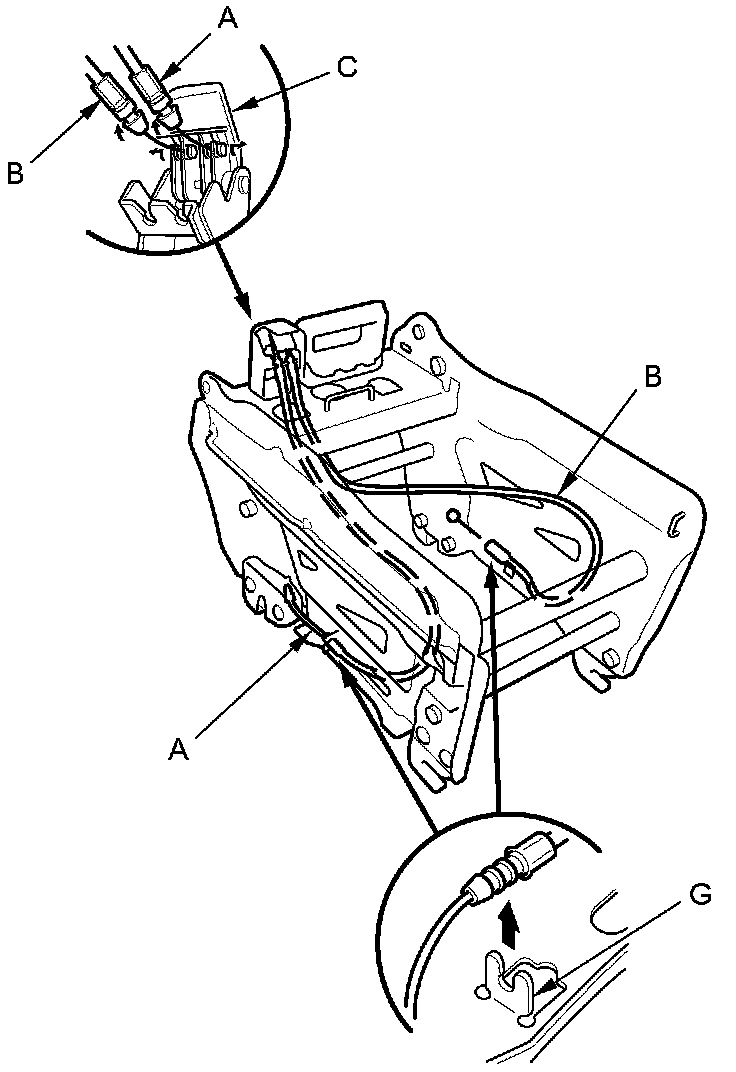

'08-10 models





3. Install the lock cables in the reverse order of removal, and make sure cables are connected securely.
