Second Row Seat Lock Release Cable Replacement

Second Row Seat Lock Release Cable Replacement

NOTE: Take care not to kink the cable.

1. Remove the second row seat.

2. Remove these items:

- Outer recline cover Second Row Seat Disassembly/Reassembly
- Inner recline cover C Second Row Seat Disassembly/Reassembly
- Rear outer riser cover Second Row Seat Riser Disassembly/Reassembly
- Rear inner riser cover Second Row Seat Riser Disassembly/Reassembly

3. Release the hooks from under the seat cushion Second Row Seat Cushion Cover Replacement.

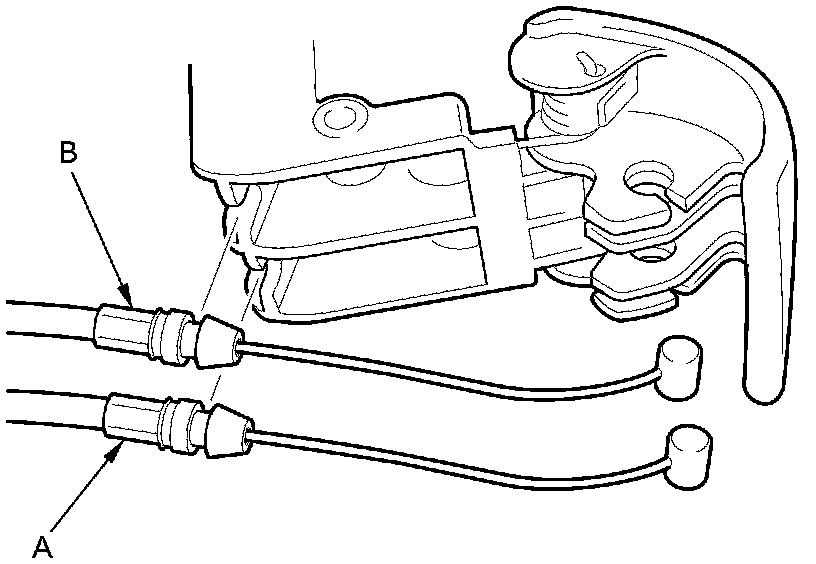

4. Disconnect the outer lock release cable (A) and the inner lock release cable (B) from the knob.

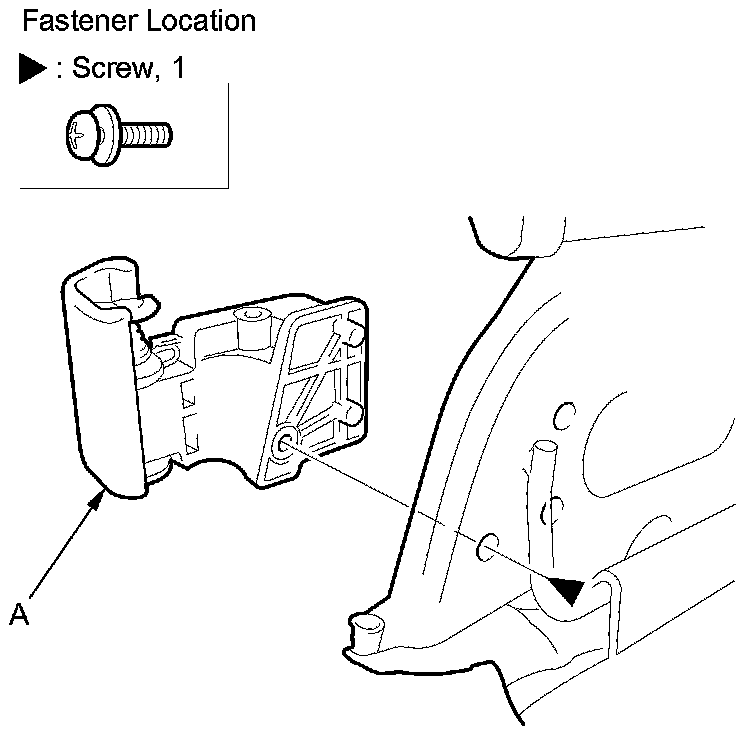

5. If necessary, remove the screw and the knob (A).

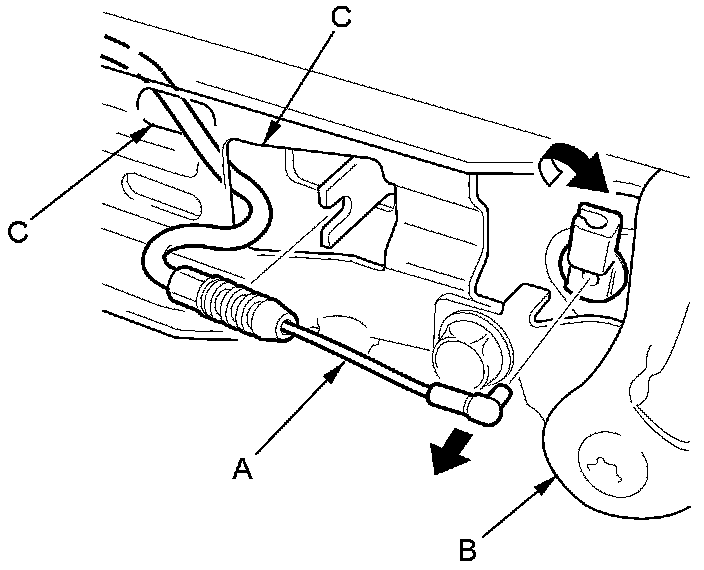

6. Disconnect the lock release cables (A) from both latches (B). Pull the end of each cable in through the holes (C) in the riser.

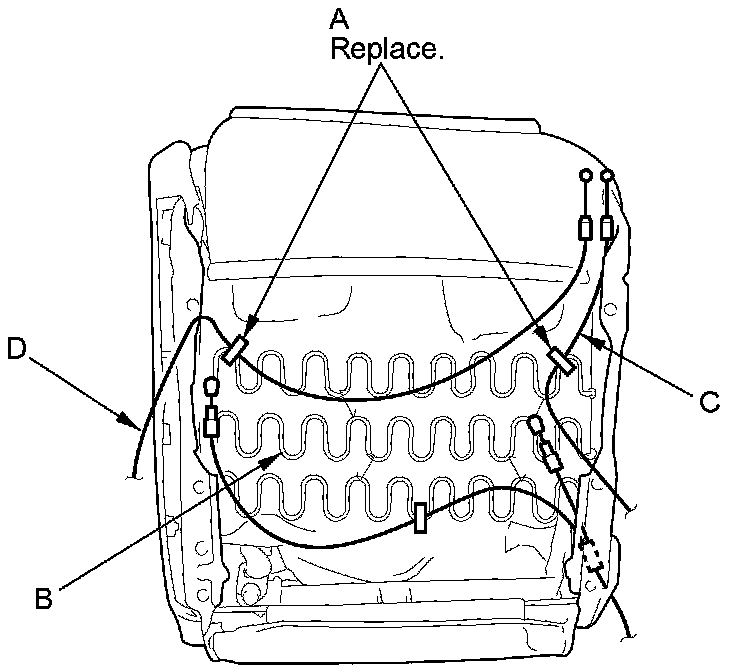

7. Release the wire ties (A) fastening each cable on the seat cushion frame spring (B), then remove the outer lock release cable (C) and the inner lock release cable (D).





8. Install the release cables in the reverse order of removal, and note these items:

- Make sure each cable is connected securely.
- Replace the wire ties you removed with new ones.
