Third Row Seat Access Cable Replacement

Third Row Seat Access Cable Replacement

NOTE:

- Take care not to tear or damage the seat covers.
- Take care not to kink the cable.
- Put on gloves to protect your hands.

From Access Lever to Recline Adjuster

1. Remove the second row seat.

2. Remove the seat-back Second Row Seat Disassembly/Reassembly.

3. Remove the seat-back cover and the pad from the seat-back frame Second Row Seat-back Cover Replacement.

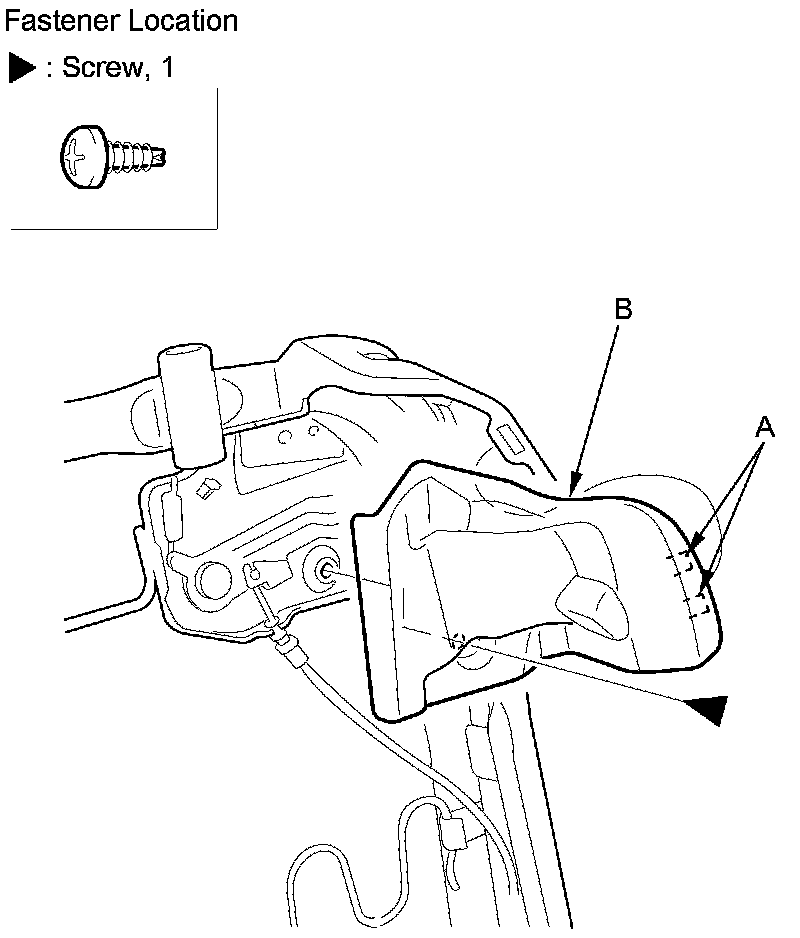

4. Remove the screw and release the hooks (A), then remove the third row seat access cover (B).

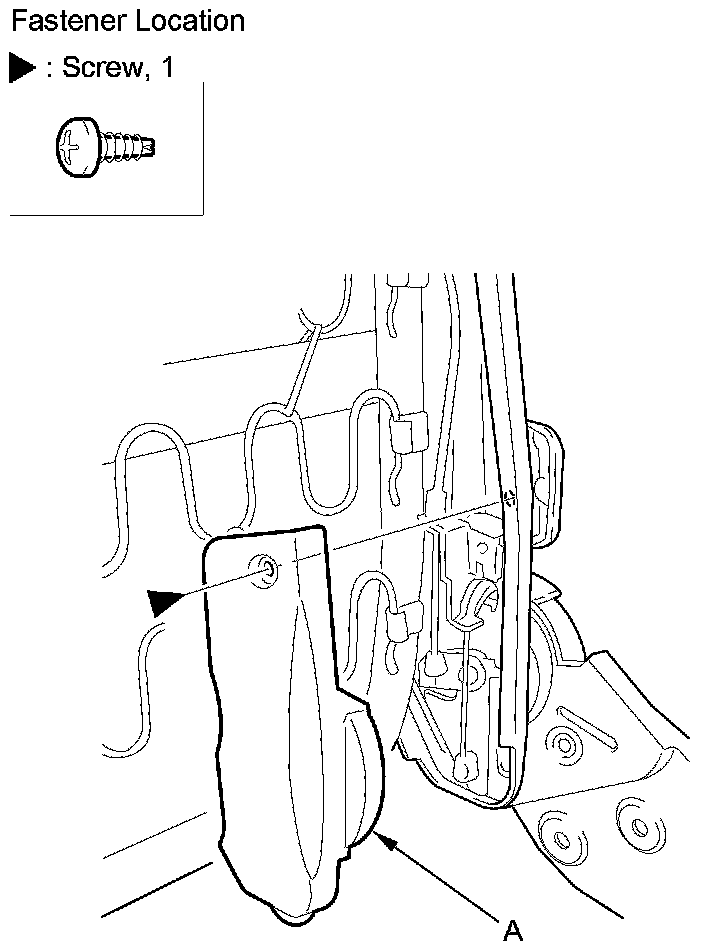

5. Remove the screw, then remove the recline inner cover (A).

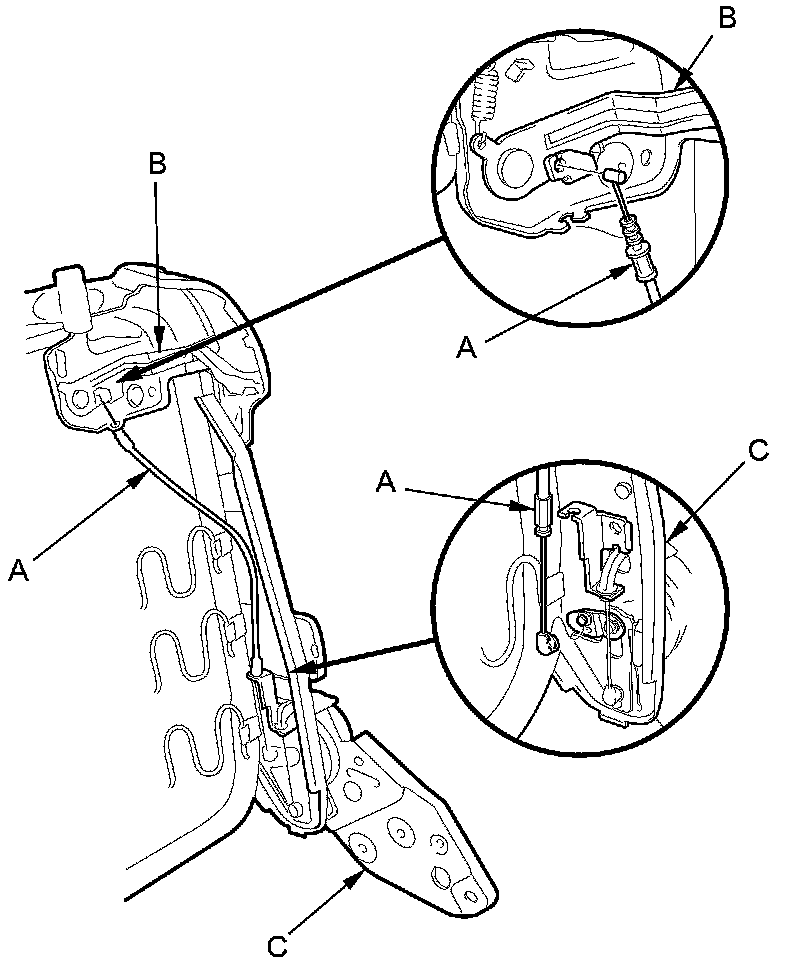

6. Disconnect the third row seat access cable (A) from the access lever (B) and the recline adjuster (C), then remove the cable.





7. Install the access cable in the reverse order of removal, and make sure the cable is connected securely.

From Recline Adjuster to Seat Tracks

1. Remove the second row seat.

2. Remove the outer recline cover Second Row Seat Disassembly/Reassembly.

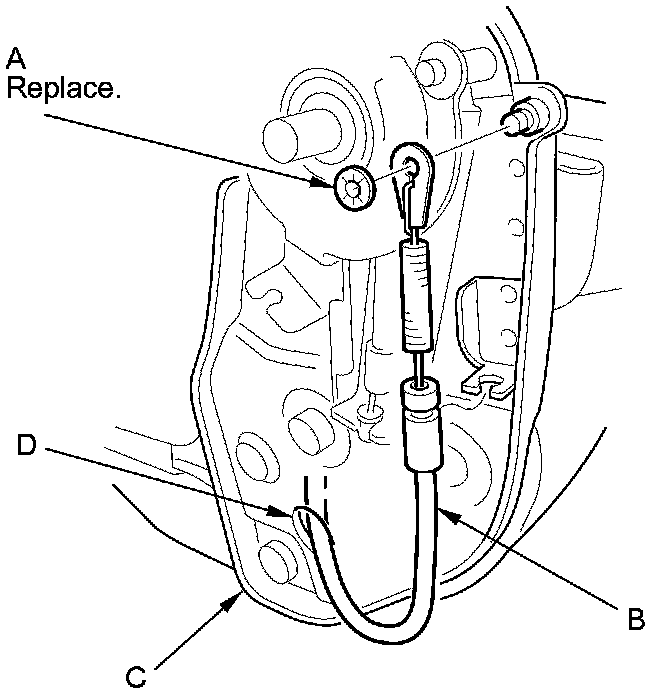

3. Remove the push nut (A), then disconnect the third row seat access cable (B) from the recline adjuster (C). Pull the cable in through the hole (D) in the recline adjuster.

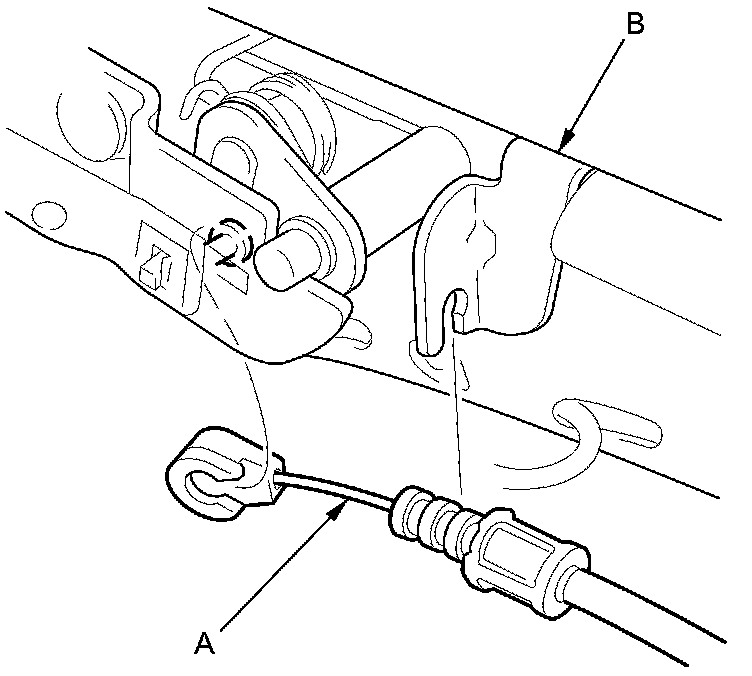

4. From under the seat cushion, disconnect both ends of the third row seat access cable (A) from both seat tracks (B).

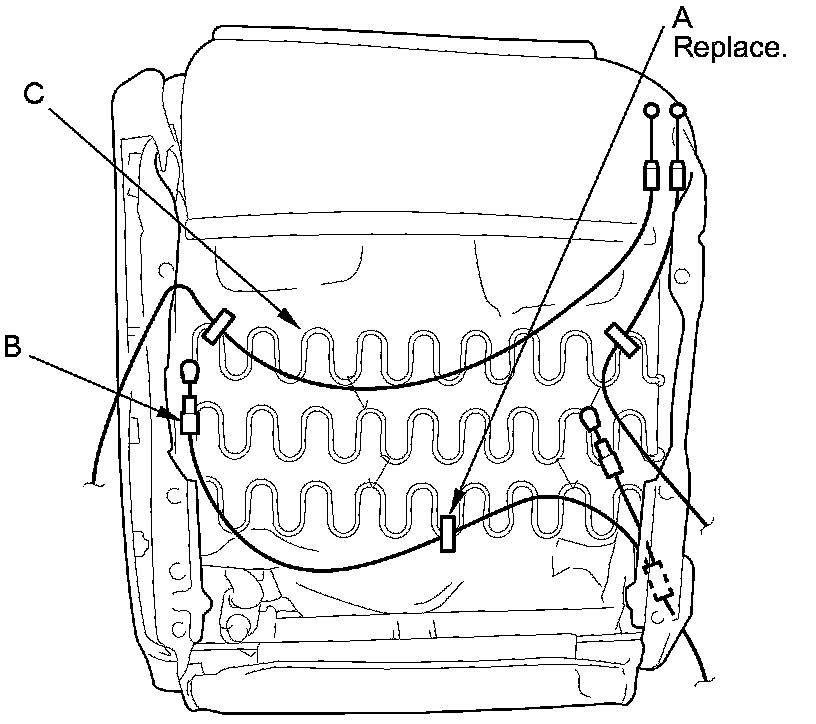

5. Release the wire tie (A) fastening the third row seat access cable (B) to the seat cushion frame spring (C), then remove the cable.





6. Install the access cable in the reverse order of removal, and note these items:

- Replace the push nut and the wire tie you removed with new ones.
- Make sure the cable is connected securely.
