Third Row Seat-Back Recline Cable Replacement

Third Row Seat-back Recline Cable Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to bend or kink the cables.
- Take care not to scratch the interior trim.
- Put on gloves to protect your hands.

1. Remove the third row seat Third Row Seat Removal/Installation.

2. Reassemble the left seat-back frame or the left seat cushion frame Third Row Seat Disassembly/Reassembly.

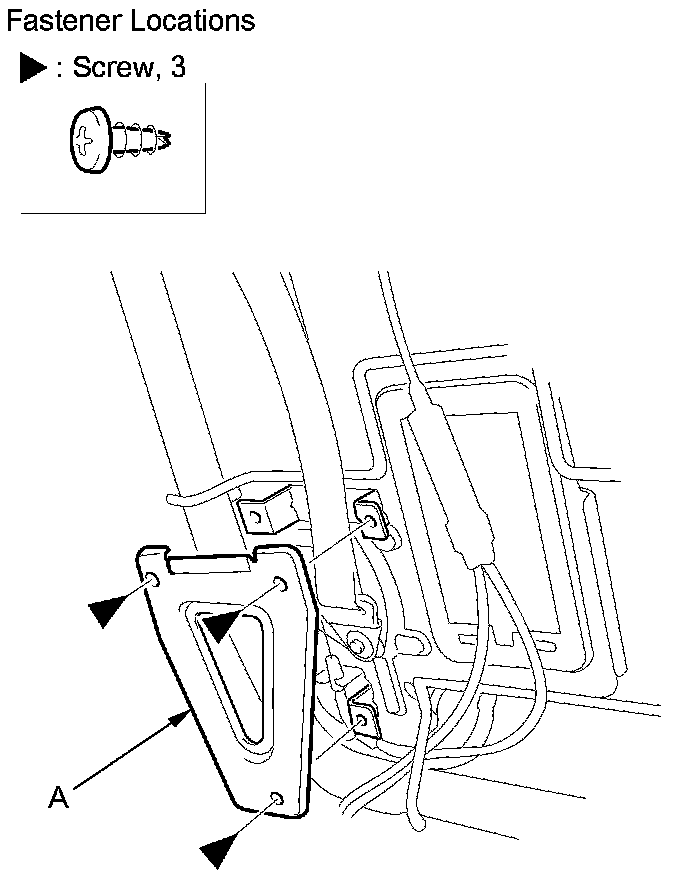

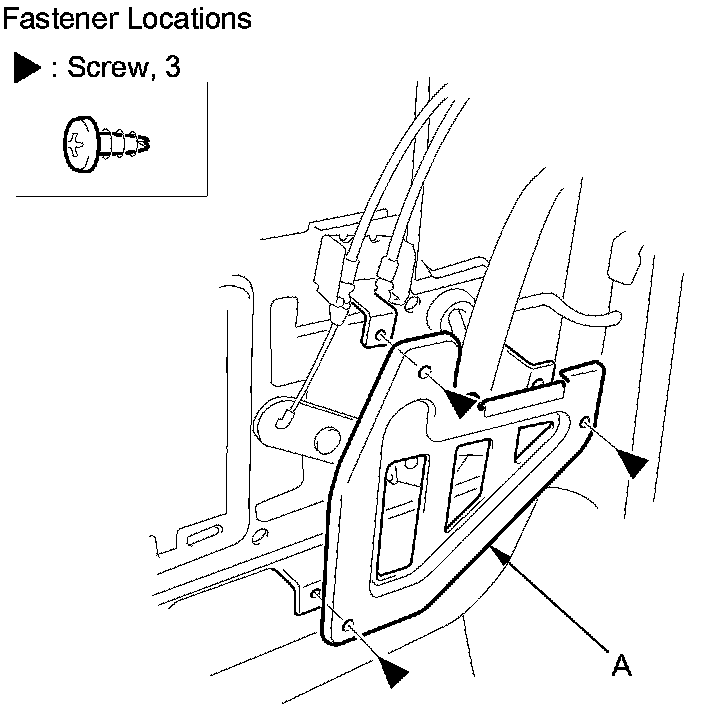

3. Remove the screws, then remove the protector (A).

Left third row seat





Right third row seat





4. Remove the screws, then remove the recline outer upper cover (A) and the recline inner cover (B) from both seats.

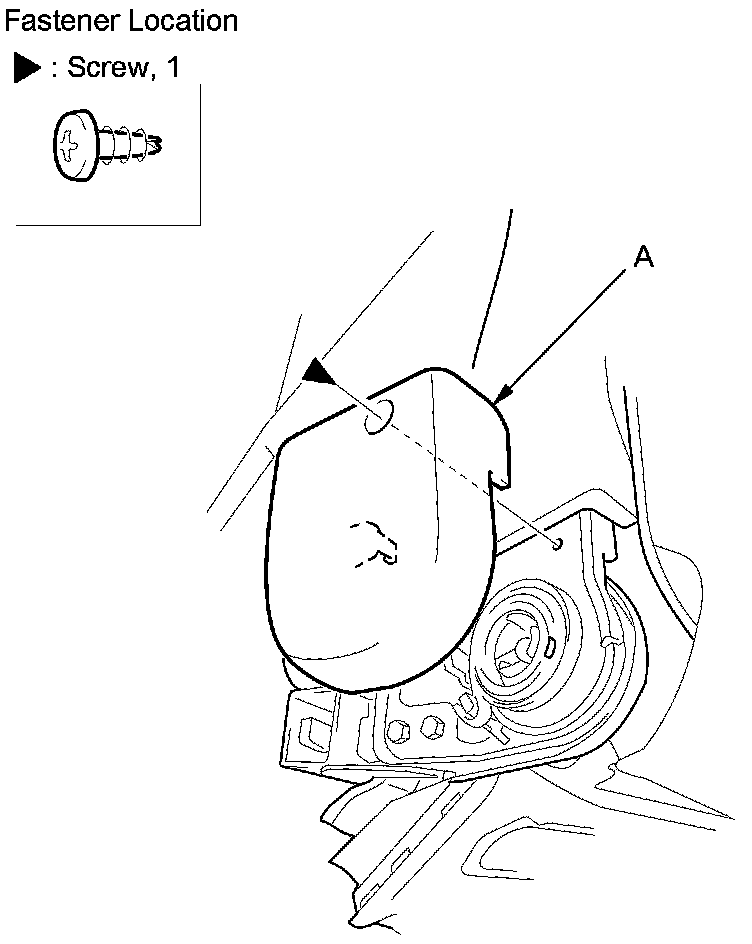

5. Right third row seat: Remove the screw, then remove the recline inner upper cover (A).

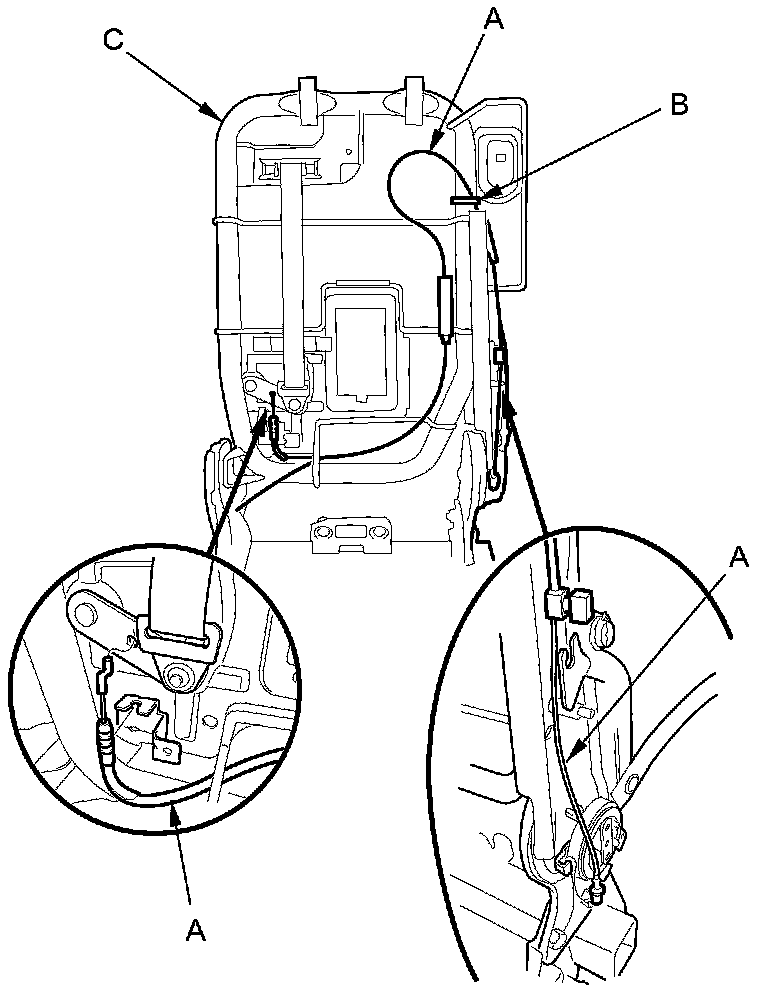

6. Left third row seat: Disconnect the left seat-back recline cable A. Release the wire ties (B) fastening each cable on the seat-back frame (C).

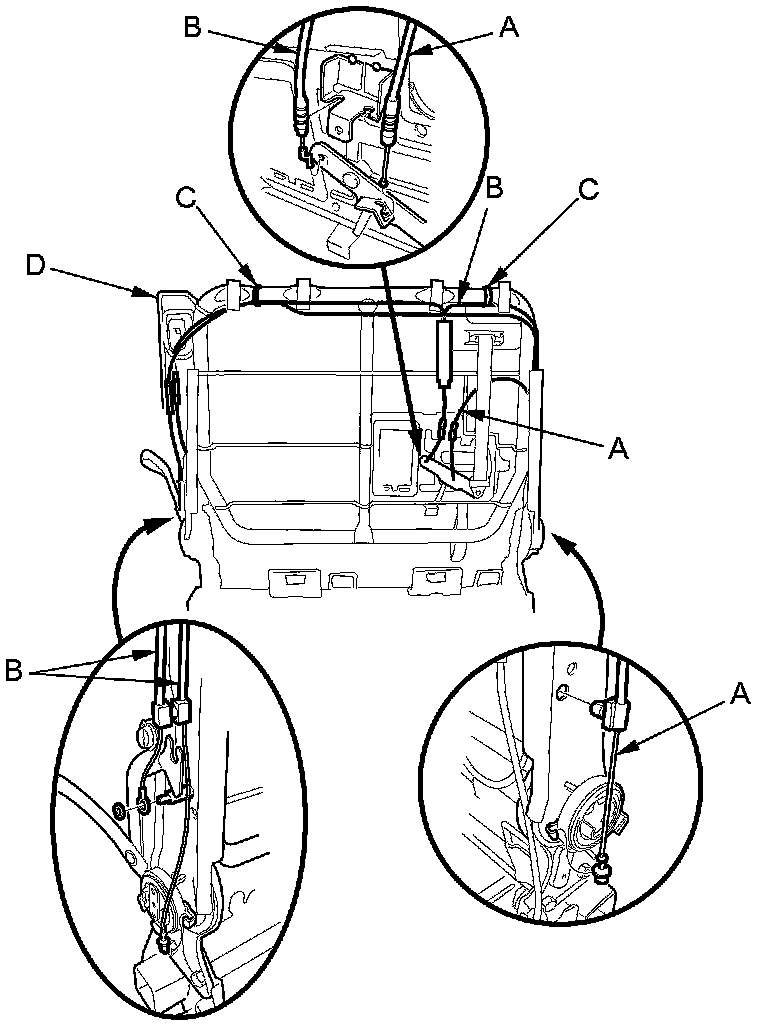

7. Right third row seat: Disconnect the right seat-back recline cable A and the right-seat back recline cable B. Release the wire ties (C) fastening each cable on the seat-back frame (D).

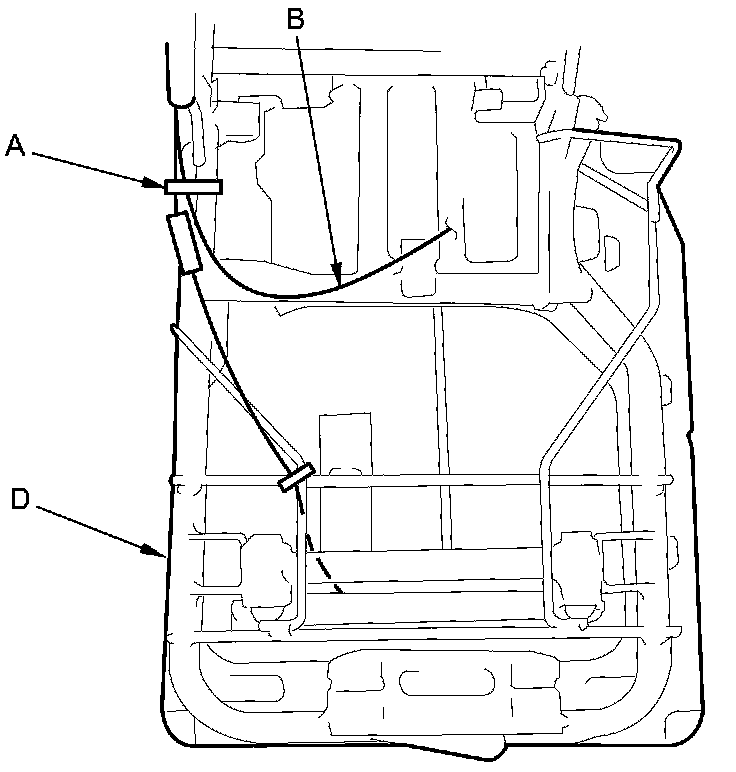

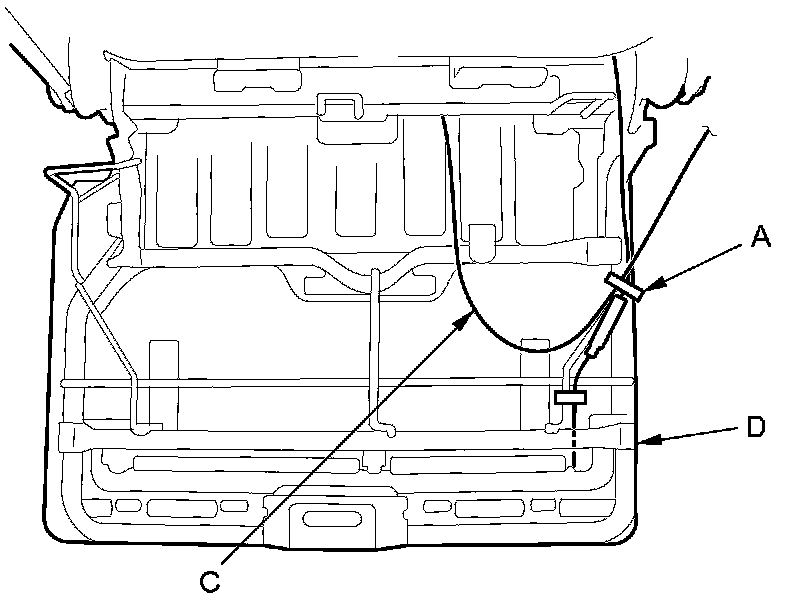

8. Release the wire tie (A) fastening the left seat-back recline cable (B) or the right seat-back recline cable (C) on the seat cushion frame (D), then remove the cable.

Left third row seat





Right third row seat





9. Install the recline cables in the reverse order of removal, and note these items:

- Make sure each seat-back recline cable is connected securely.
- Check the seat-back recline operations.
