Second Row Center Seat Latch Replacement

Second Row Center Seat Latch Replacement

NOTE: Take care not to tear or damage the seat covers.

1. Remove these items:

- Seat cushion
- Seat belt buckle Second Row Seat Belt Replacement
- Detachable seat belt buckle Second Row Seat Belt Replacement
- Recline cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Center cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Seat-back:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Seat back cover:
- '07 model
- '08-10 models Second Row Center Seat Disassembly/Reassembly
- Base cover, '07 model
- Base undercover, '07 model
- Left outer riser cover, '07 model
- Right outer and inner riser cover, '07 model
- Upper cover, '08-10 models Second Row Center Seat Disassembly/Reassembly
- Lower cover, '07 model Second Row Center Seat Disassembly/Reassembly

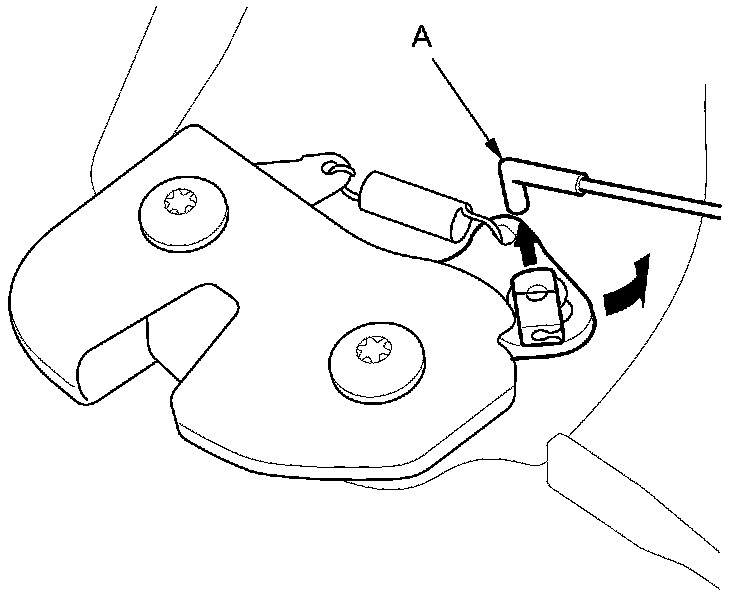

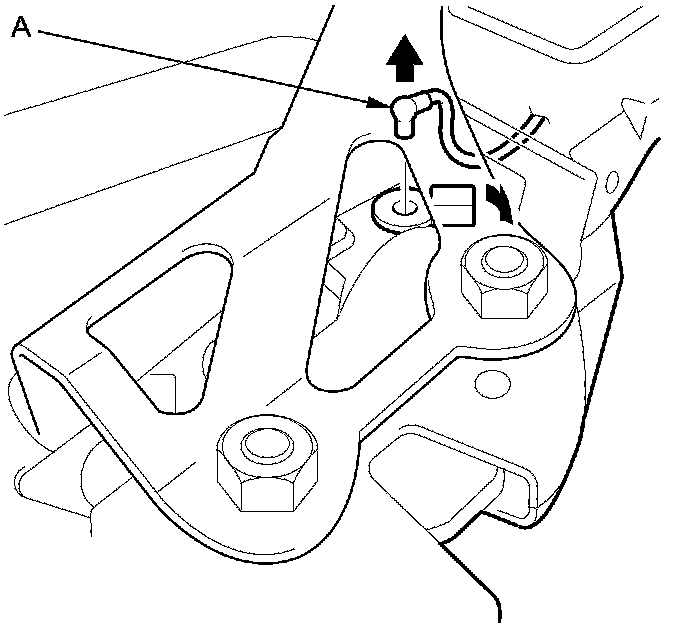

2. Disconnect the latch cable (A).

'07 model





'08-10 models

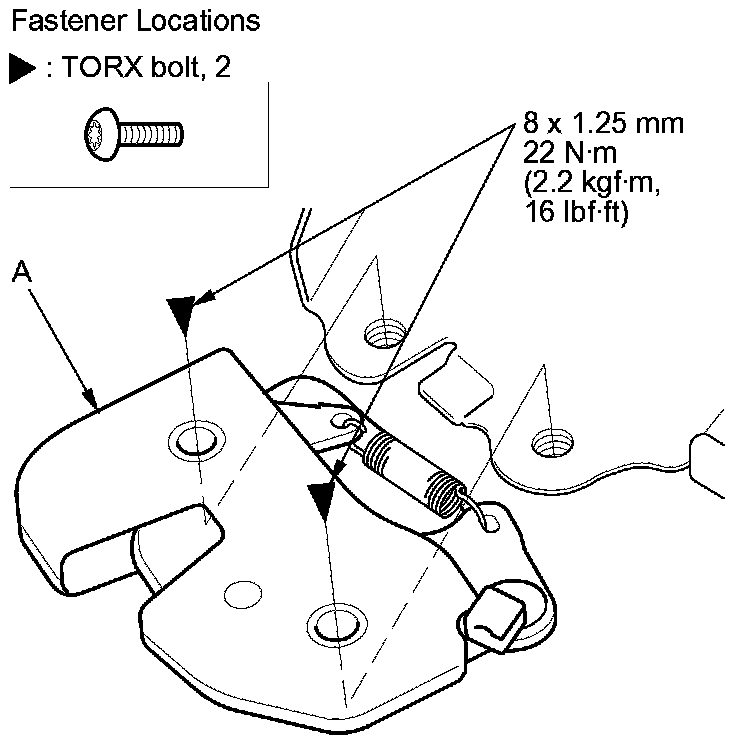

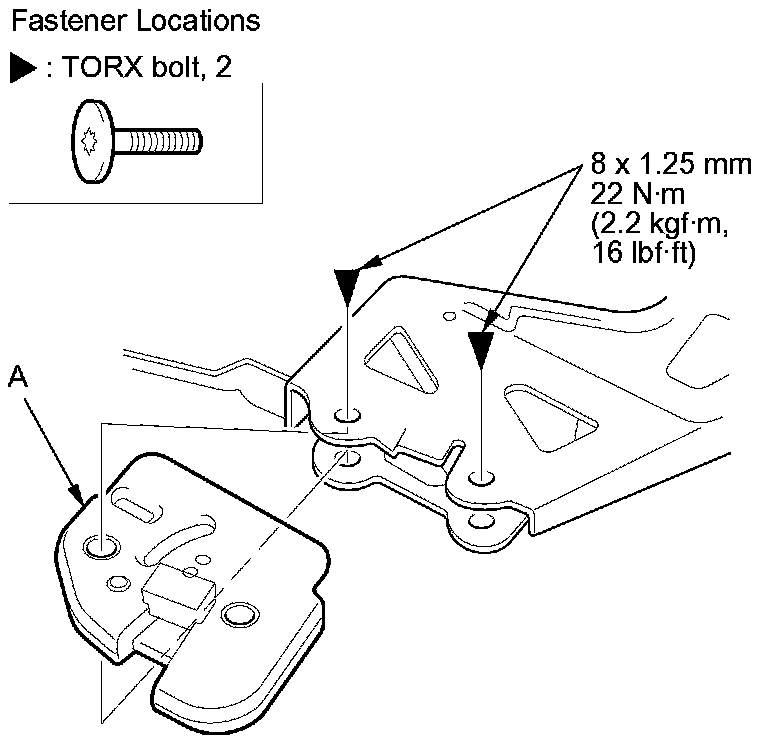

3. Remove the bolts with a TORX T40 bit, then remove the latch (A).

'07 model





'08-10 models





4. Install the latch in the reverse order of removal.
