Third Row Seat Latch Replacement

Third Row Seat Latch Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to tear or damage the seat covers.

1. Stand the third row seat upright, and hold it.

2. Remove the left foot cover or the right foot cover Third Row Seat Disassembly/Reassembly.

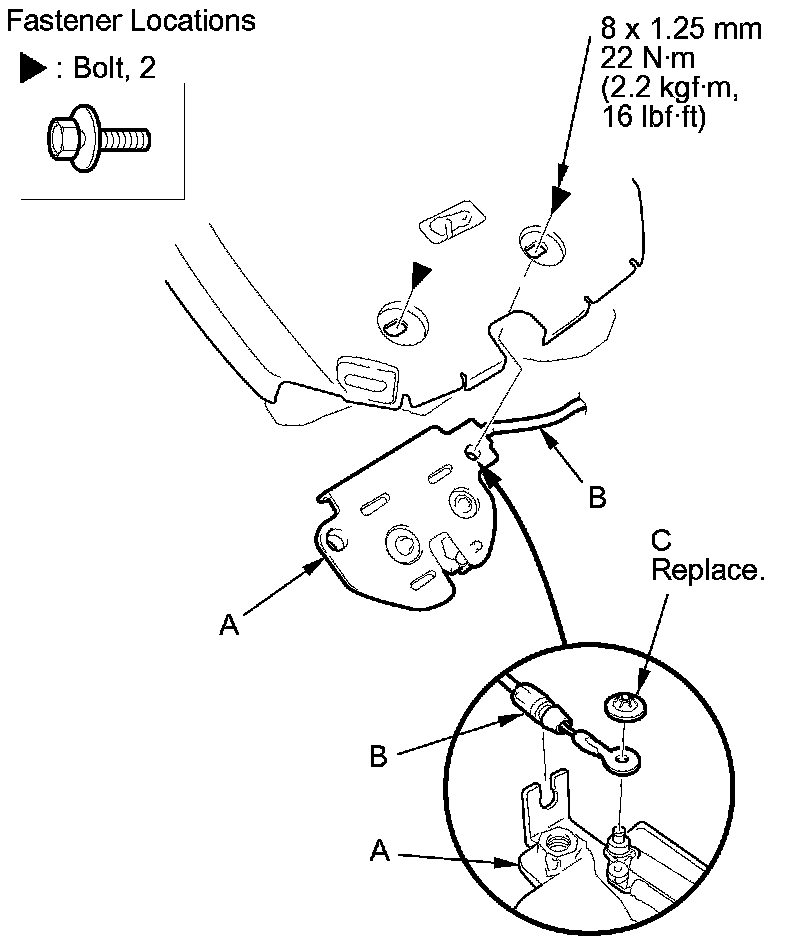

3. While holding the seat upright, remover the bolts securing the latch (A), and disconnect the cable (B) by releasing the push nut (C), then remove the latch.

NOTE: Replace the push nut you removed with a new one.

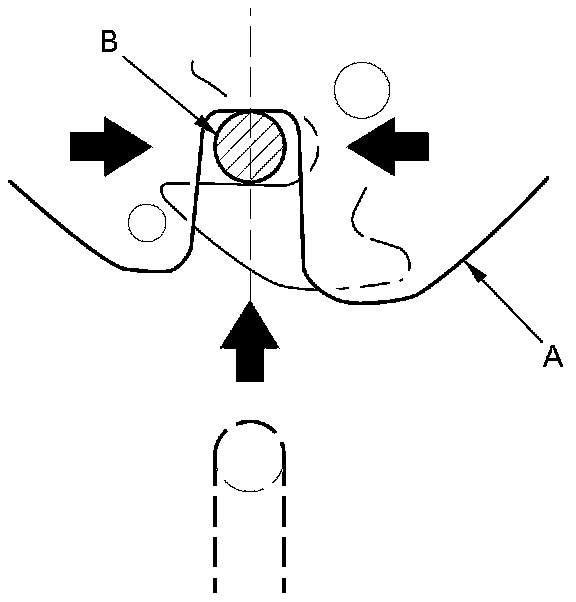

4. Install the latch (A) in the reverse order of removal and move it left or right until it is centered on the striker (B).
