Front Seat Linkage Disassembly/Reassembly - Divers 8-Way Power

Front Seat Linkage Disassembly/Reassembly - Diver's 8-Way Power

- The operation of the driver's seat position sensor must be checked after any of these actions Driver's Seat Position Sensor Operation Check:
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement

NOTE:

- Put on gloves to protect your hands.
- To remove the slide motor and the slide gearbox, slide the front seat forward fully.

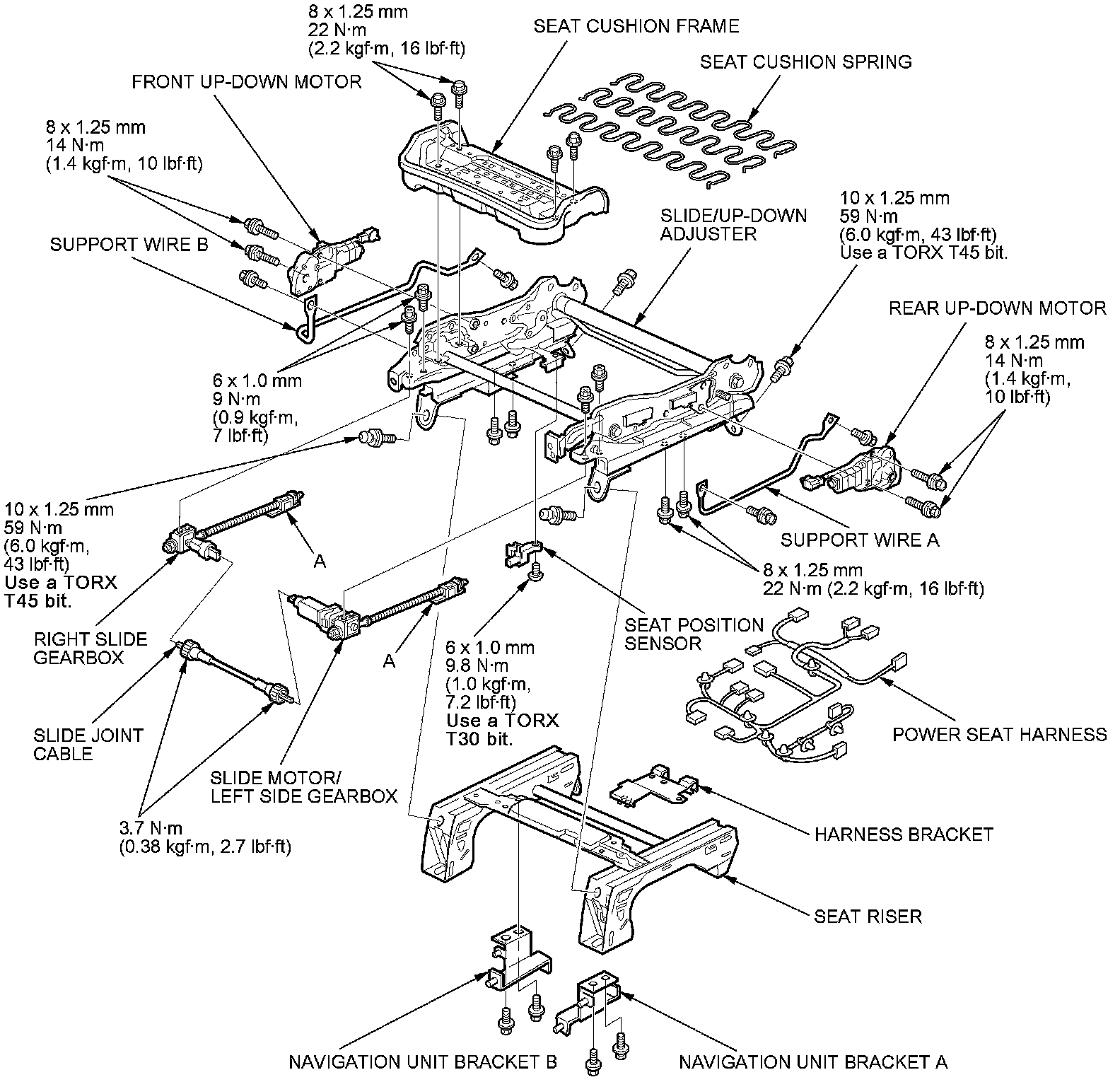

- Before installing the slide motor and the slide gearbox, align area (A) as shown to align both slide gearbox positions.
- Apply multipurpose grease to the sliding and pivot areas.
- Check operation of the recline adjuster and the slide/up-down adjuster.
