Front Seat Linkage Disassembly/Reassembly - Passenger's 4-Way Power

Front Seat Linkage Disassembly/Reassembly - Passenger's 4-Way Power

Do the front passenger's weight sensor initialization after front passenger's seat frame replacement.

- '07 model: OPDS unit Programming and Relearning
- '08-10 models: ODS unit Programming and Relearning

NOTE:

- Put on gloves to protect your hands.

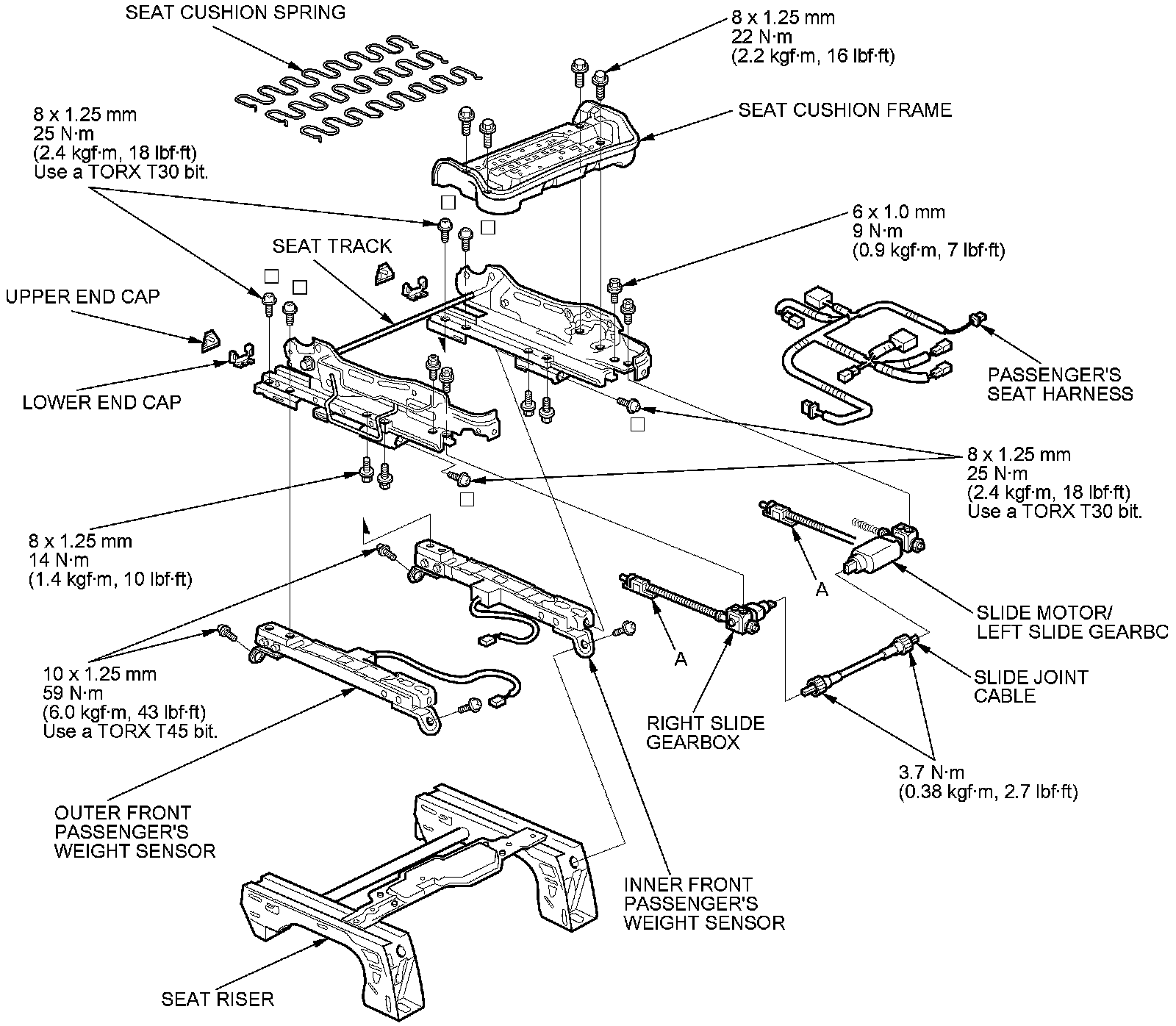

- To remove the slide motor and the slide gearbox, slide the front seat forward fully.
- Before installing the slide motor and the slide gearbox, align area (A) as shown to align both slide gearbox positions.
- Apply multipurpose grease to the sliding and pivot areas of the linkage.
- When tightening the weight sensor mounting TORX bolts, tighten the bolts in the sequence shown.
- Make sure the weight sensor wires are routed properly so they are not pinched and do not interfere with other parts.

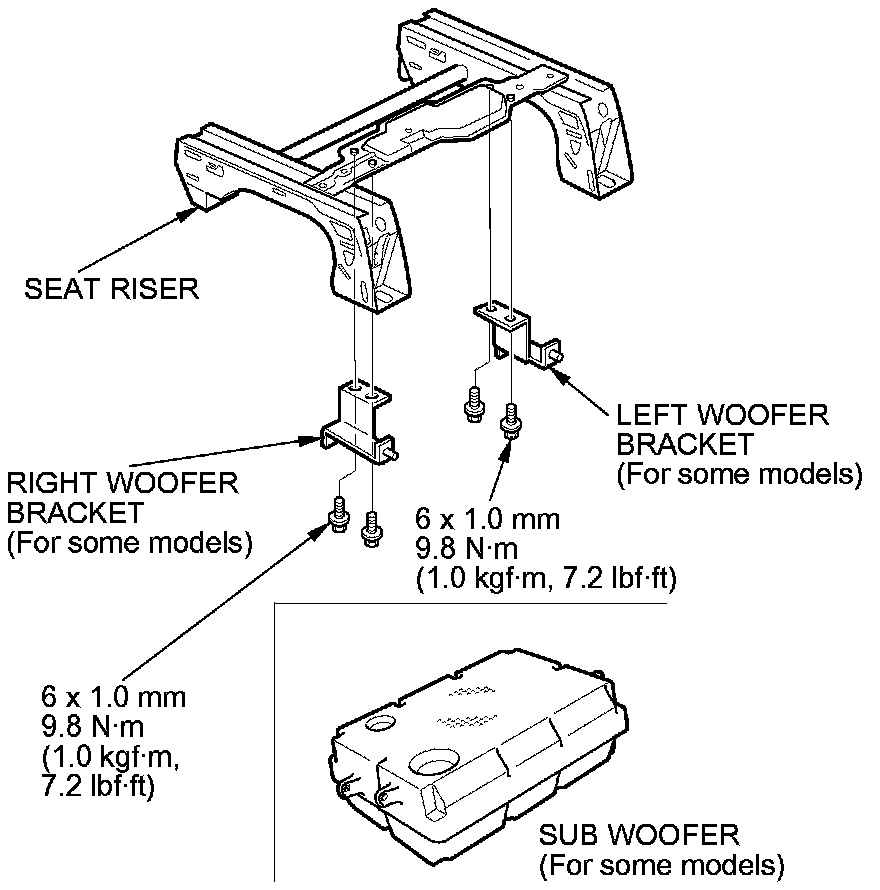

Seat riser
