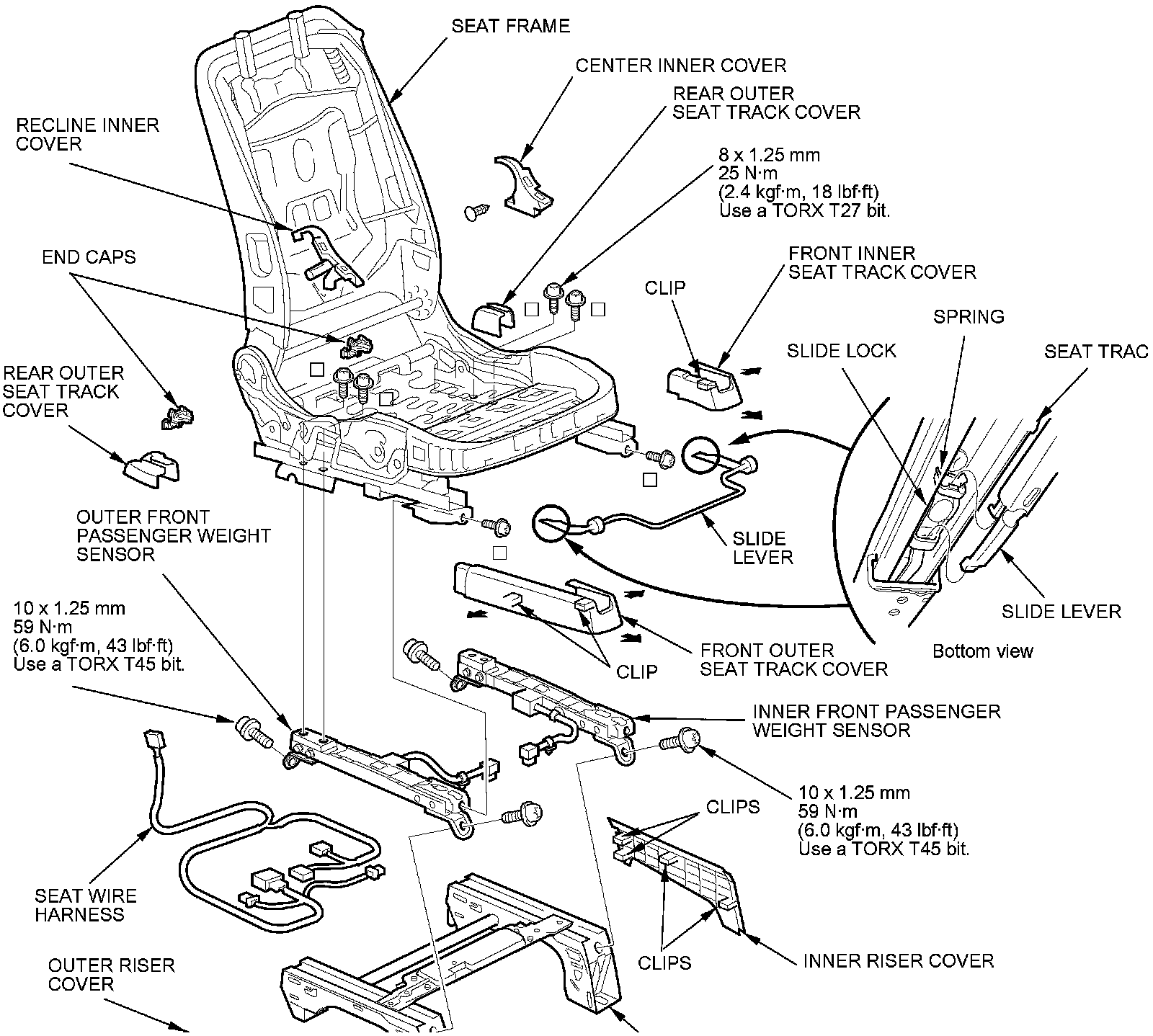

Front Seat Linkage Disassembly/Reassembly - Passenger's Manual

Front Seat Linkage Disassembly/Reassembly - Passenger's Manual

'08-10 models

Do the front passenger's weight sensor initialization after front passenger's seat frame replacement Programming and Relearning.

NOTE:

- Put on gloves to protect your hands.
- To remove the slide lever, slide the front seat forward fully, then lightly tap the lever out to disconnect both ends of it from the springs in both seat tracks.
- Apply oil to the pivot areas of the slide lock.
- Apply multipurpose grease to the sliding parts and pivot areas of the seat tracks.
- When tightening the weight sensor mounting TORX bolts, tighten the bolts in the sequence shown.
