Front Seat Lumbar Support Replacement

Front Seat Lumbar Support Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

For Some Models (Driver's seat)

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to bend or kink the cable.
- Take care not to tear or damage the seat covers.
- Put on gloves to protect your hands.

1. Remove these items:

- Armrest Front Seat Armrest Replacement
- Lumbar support knob Front Seat-back Cover Replacement

2. Release the back of the seat-back cover, as needed Front Seat-back Cover Replacement.

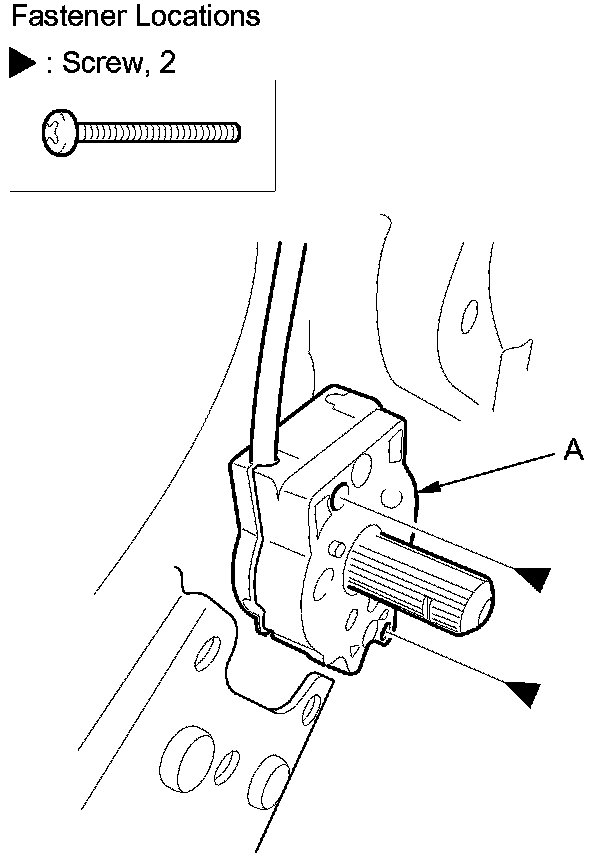

3. Remove the screws securing the lumbar support actuator (A).

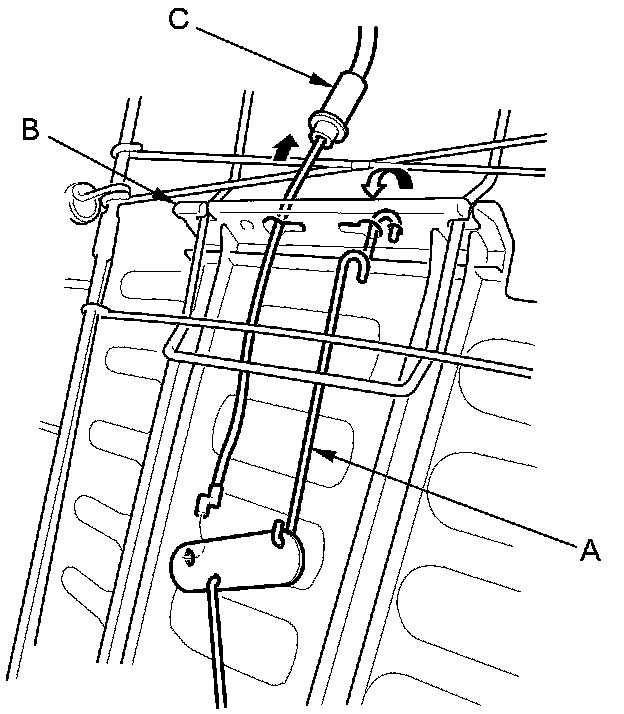

4. Release the hook of the yoke wire (A) from the top of the basket (B) to loosen the lumbar support cable (C), then disconnect it.

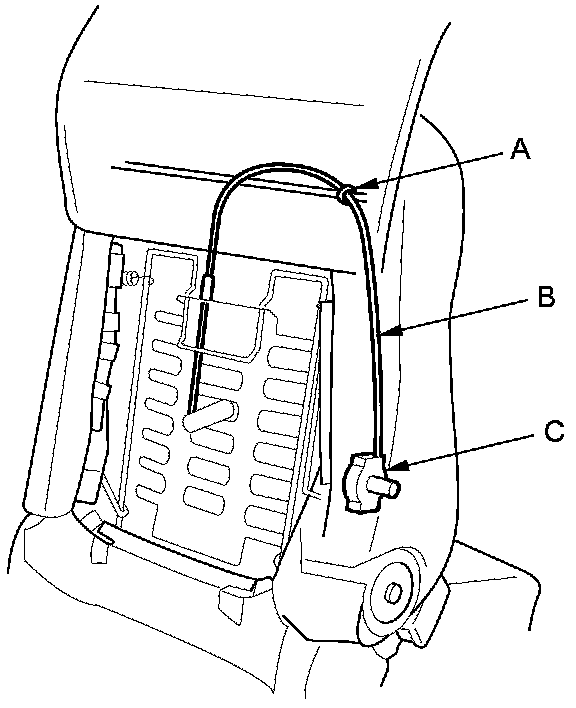

5. Release the wire tie (A), then release the lumbar support cable (B) and the actuator (C) as an assembly.

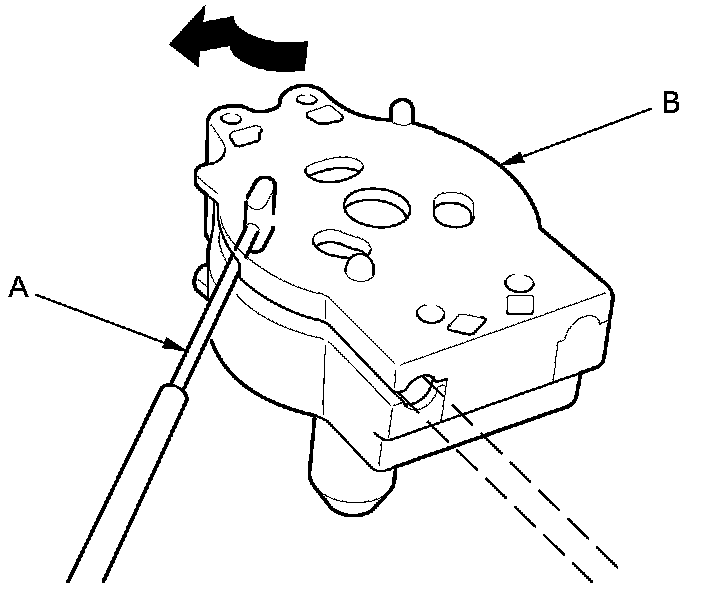

6. Disconnect the lumbar support cable (A) from the lumbar support actuator (B).

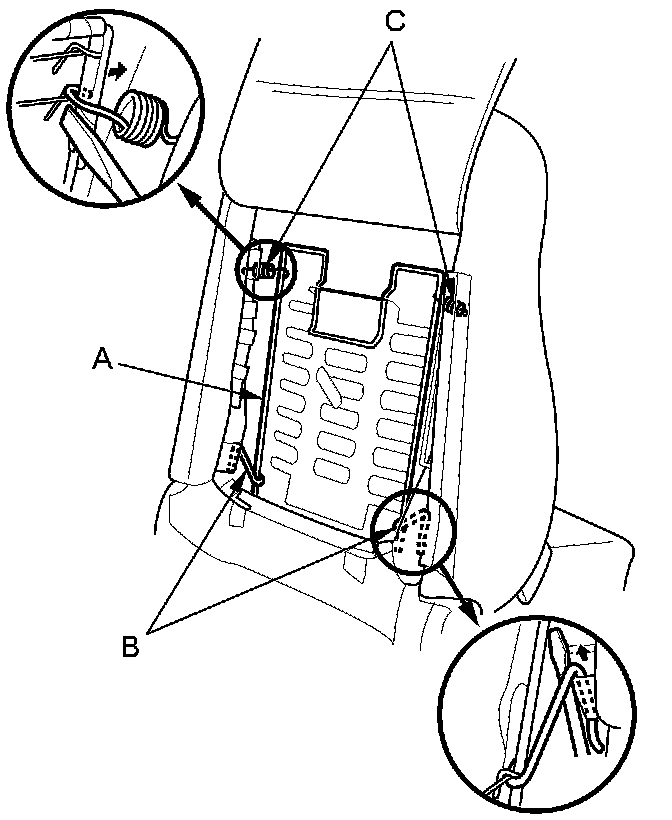

7. Remove the lumbar support (A).

1. Release both lower springs (B) from inside the seat-back.

2. Release the lumbar support from both upper springs (C).





8. Install the lumbar support in the reverse order of removal, and note these items:

- Make sure the cable is routed correctly and connected securely.
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook strips.
