Second Row Center Seat Lever Removal/Installation

Second Row Center Seat Lever Removal/Installation

For Some Models

NOTE:

- Take care not to tear or damage the seat covers.
- Put on gloves to protect your hands.

1. Remove these items:

- Seat cushion
- Seat belt buckle Second Row Seat Belt Replacement
- Detachable seat belt buckle Second Row Seat Belt Replacement
- Recline cover
- Center cover
- Seat-back
- Base cover
- Base undercover

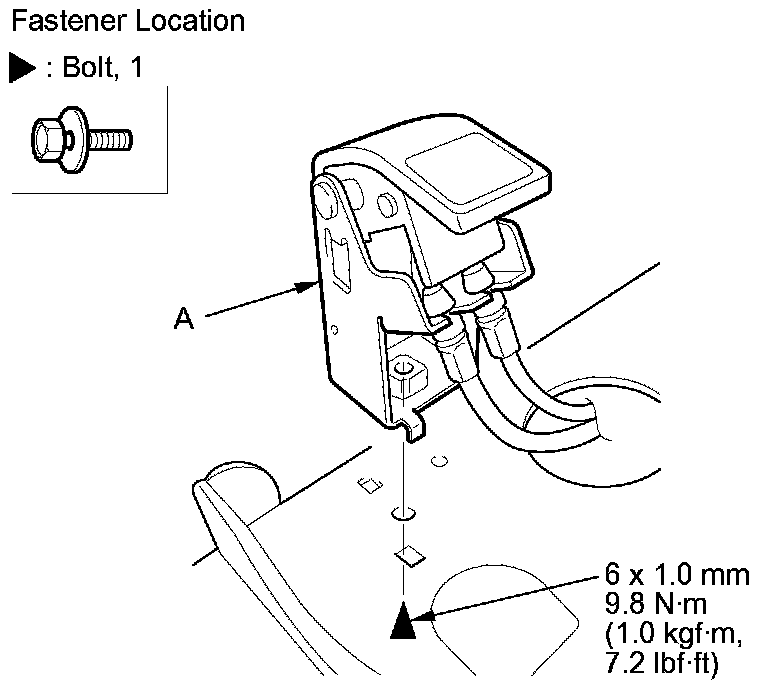

2. Remove the bolt, then remove the second row center seat lever (A).

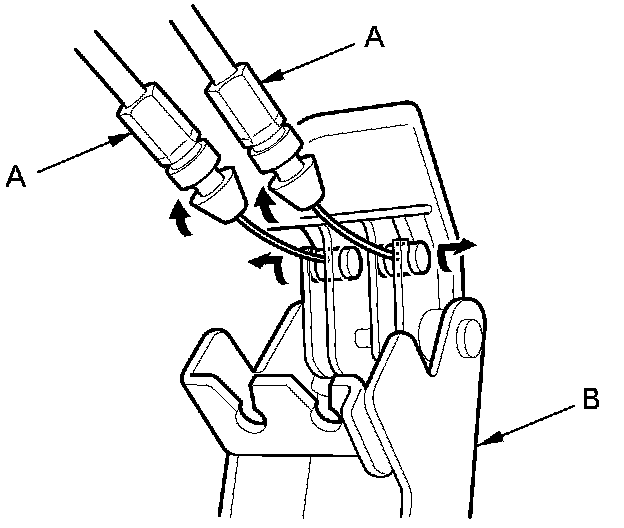

3. Disconnect the cables (A) from the second row center seat lever (B).

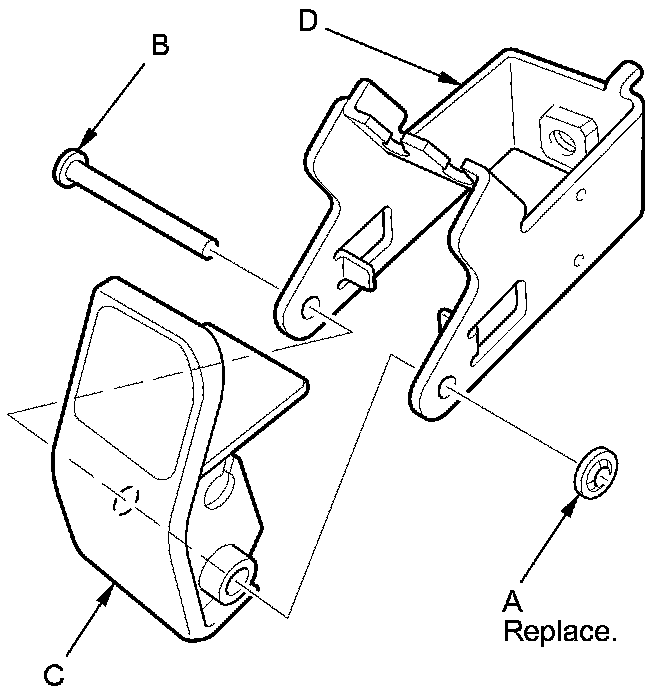

4. If necessary, remove the lock washer (A), and release the shaft (B), then separate the base lever (C) and the base lever bracket (D).





5. Install the center seat lever in the reverse order of removal, and replace the lock washer you removed with new one.
