Power Sliding Door Motor Sensor: Service and Repair

Power Sliding Door Pinch Sensor Test/Replacement

1. Remove the sliding door panel Sliding Door Panel Removal/Installation.

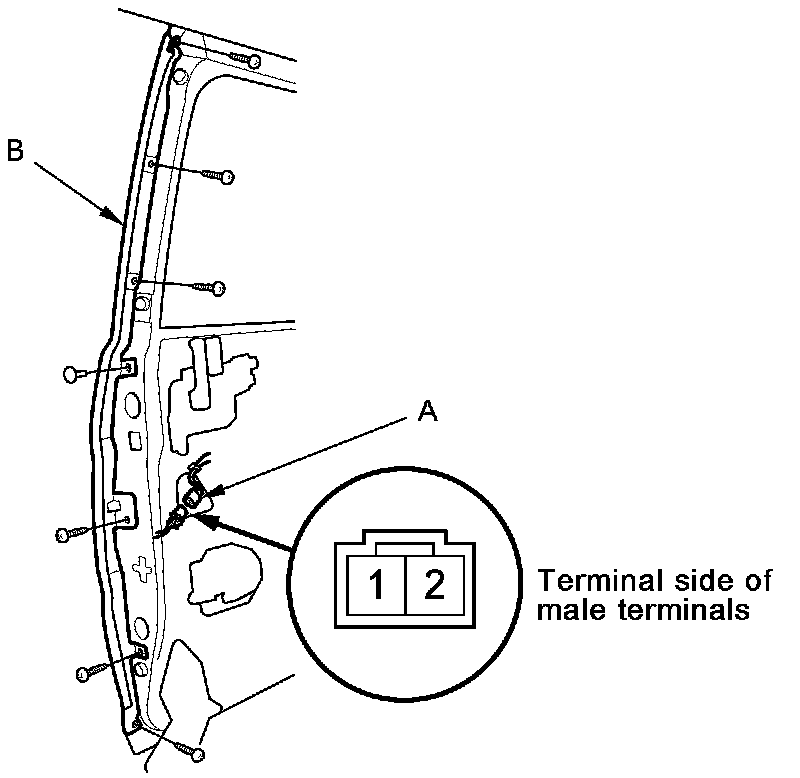

2. Disconnect the 2P connector (A) from the pinch sensor (B).





3. Measure the resistance between pinch sensor 2P connector terminals No. 1 and No. 2.

The resistance should vary from about 1 kOhms to about 120 Ohms when the sensor is pressed.

4. If the resistance is not as specified, remove the screws, then replace the pinch sensor.

5. Install in the reverse order of removal. After installing, make sure the sliding door operates properly.
