Tailgate Latch Switch Test/Replacement

Tailgate Latch Switch Test/Replacement

1. Open the tailgate.

2. Remove the tailgate trim panel .

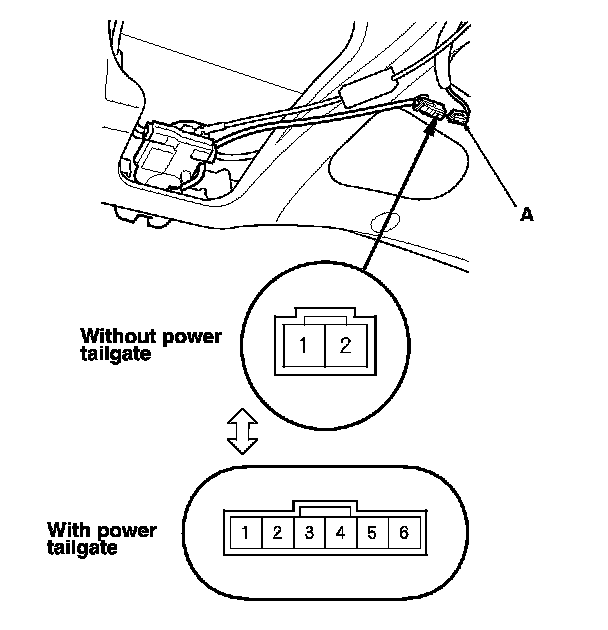

3. Disconnect the 2P (or 6P) connector (A) from the tailgate latch.





4. Check for continuity between terminals No. 1 and No. 2.

- With the tailgate open, there should be continuity.
- With the tailgate closed, there should be no continuity.

5. If the continuity is not as specified, replace the tailgate latch.
