Front Splash Shield Replacement

Front Splash Shield Replacement

'08-10 Models

NOTE:

- Take care not to scratch the body.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

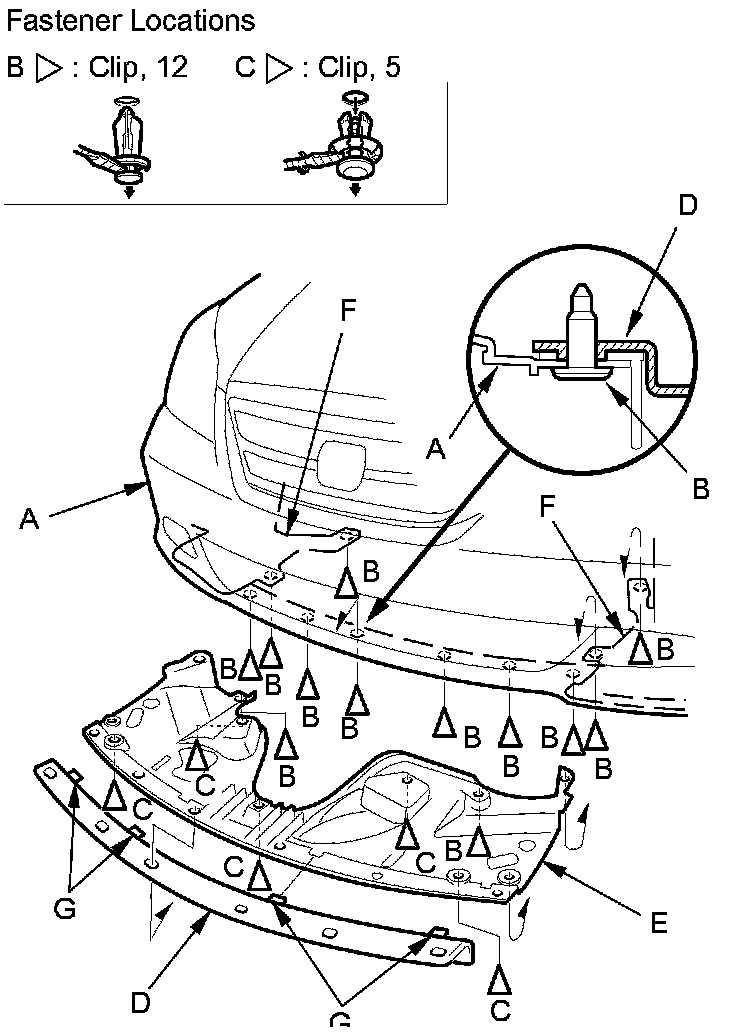

1. From under the front bumper (A), remove the clips (B, C) securing the front bumper, the front bumper air spoiler (D), the front splash shield (E), and the front inner fender (F) on the front subframe and the body.





2. Remove the front splash shield, and release the hooks (G), then remove the air spoiler from the splash shield.

3. Install the splash shield in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
