Spoiler: Service and Repair

Tailgate Spoiler Trim Replacement

'08-10 Models

NOTE: Take care not to scratch the tailgate or the body.

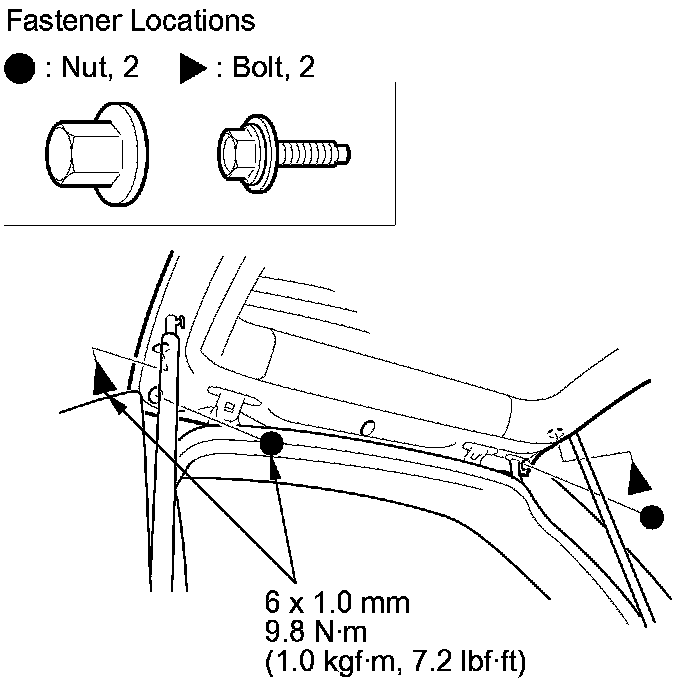

1. Open the tailgate. Remove the nuts and the bolts securing the tailgate spoiler trim.





2. Remove the tailgate upper trim .

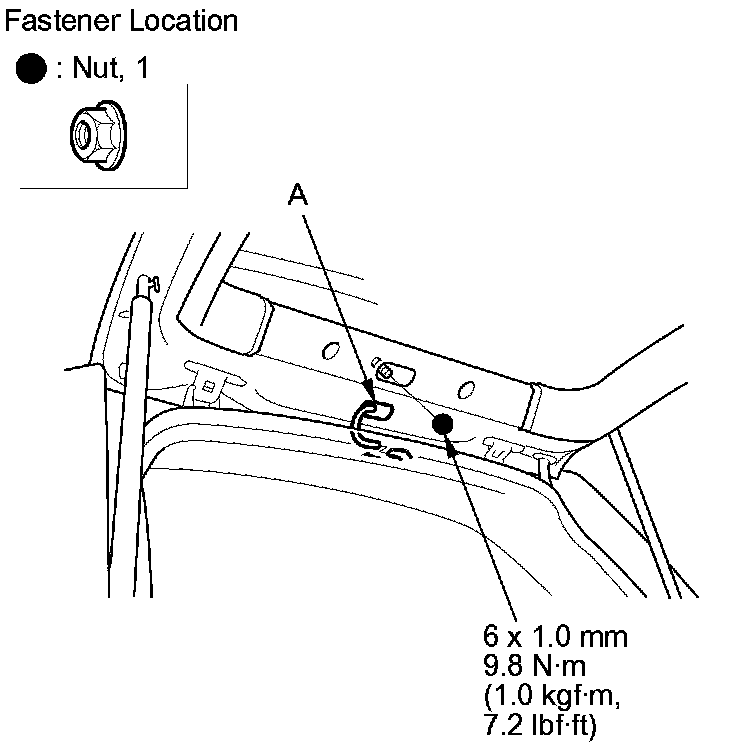

3. Disconnect the rear window washer tube (A). Remove the nut from the tailgate.

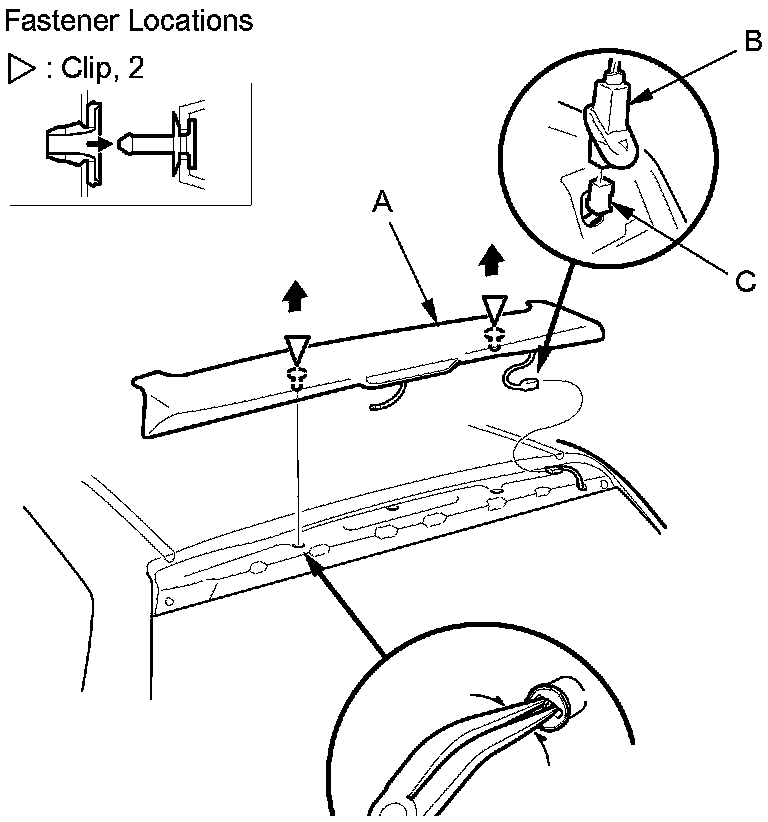

4. Gently close the tailgate, and lift up on the tailgate spoiler trim (A) to detach the clips.





5. Remove the high mount brake light connector grommet (B) from the tailgate, and disconnect the high mount brake light connector (C), then remove the tailgate spoiler trim.

6. Install the trim in the reverse order of removal, and note these items:

- Make sure the high mount brake light connector is plugged in properly, and the rear window washer tube is connected properly.
- Make sure the high mount brake light connector grommet is installed securely.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
