Cowl Moulding / Trim: Service and Repair

Cowl Cover Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*

NOTE:

- Take care not to scratch the cowl cover or the body.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the windshield wiper arms Wiper Motor Replacement.

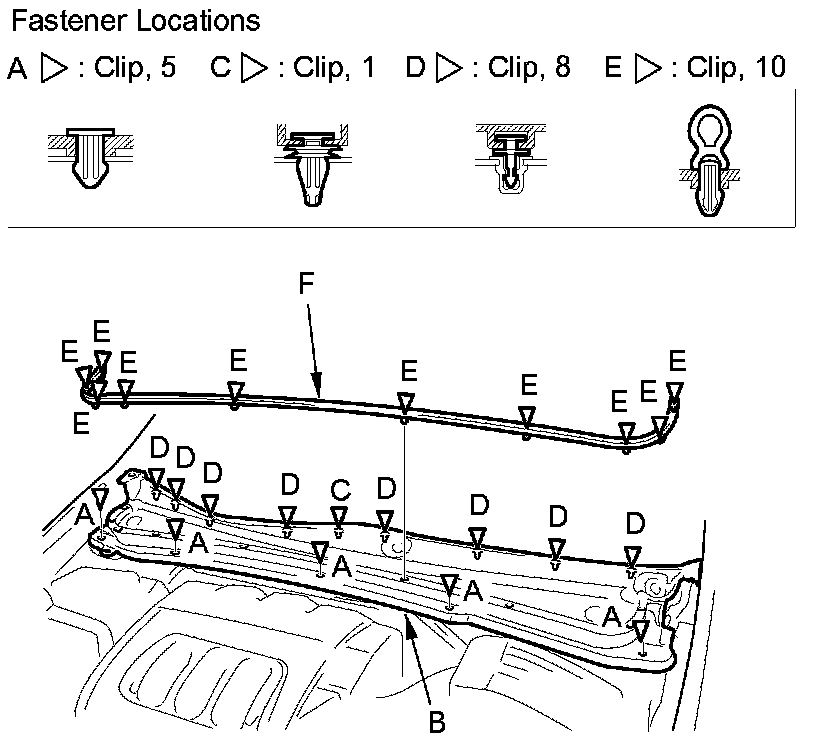

2. Remove the clips (A) with a trim tool, from the cowl cover (B), and detach the clips (C, D) by carefully pulling the windshield side edge of the cover upward.





3. If necessary, detach the clips (E) with a trim tool, then remove the hood rear seal (F).

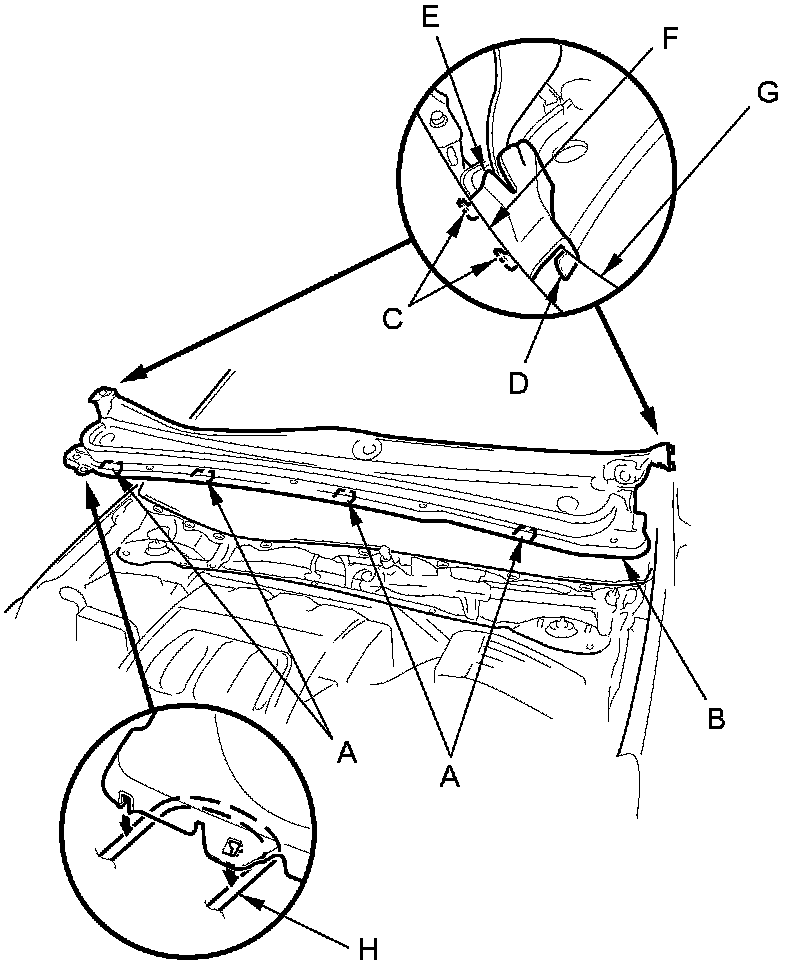

4. Release the hooks (A) of the cowl cover (B) by pulling the cover forward. From both hood hinge areas, release the hooks (C, D) of the hood hinge cover (E) from the front fender (F) and the windshield side trim (G).





5. Release the windshield washer tube (H) from the cover, then remove the cover.

6. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure the cowl cover does not pinch the windshield washer tube.
