Sliding Door Subseal Replacement

Sliding Door Subseal Replacement

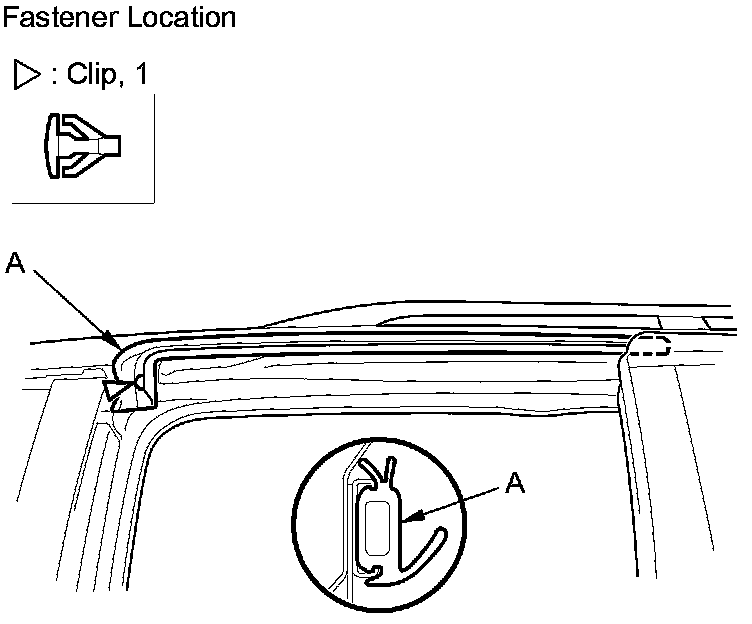

1. Detach the clip, then remove the subseal (A). Take care not to scratch the body.





2. Install the subseal in the reverse order of removal, and if the clip is damaged or stress-whitened, replace it with a new one.
