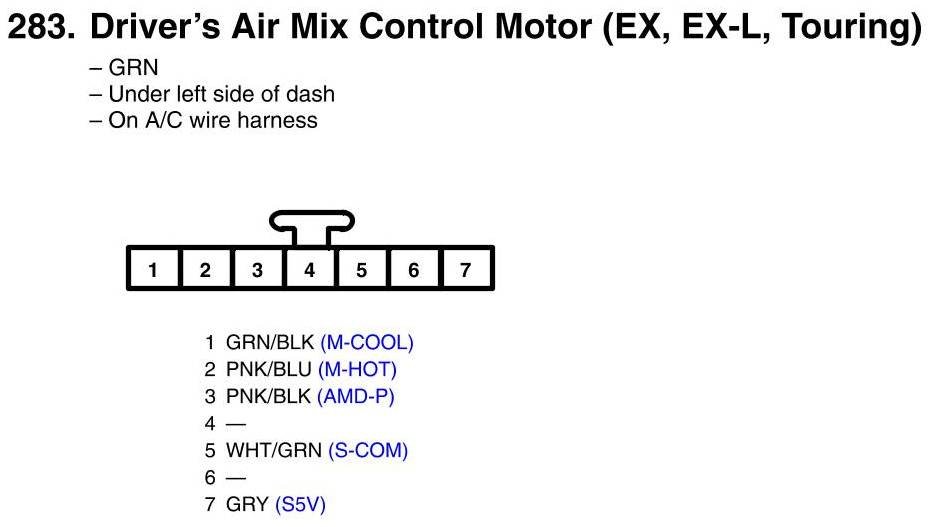

Driver's Air Mix Control Motor Connector View (EX, EX-L, Touring)
Driver's Air Mix Control Motor Connector View (EX, EX-L, Touring)
