Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Door Actuator / Motor, HVAC
>>

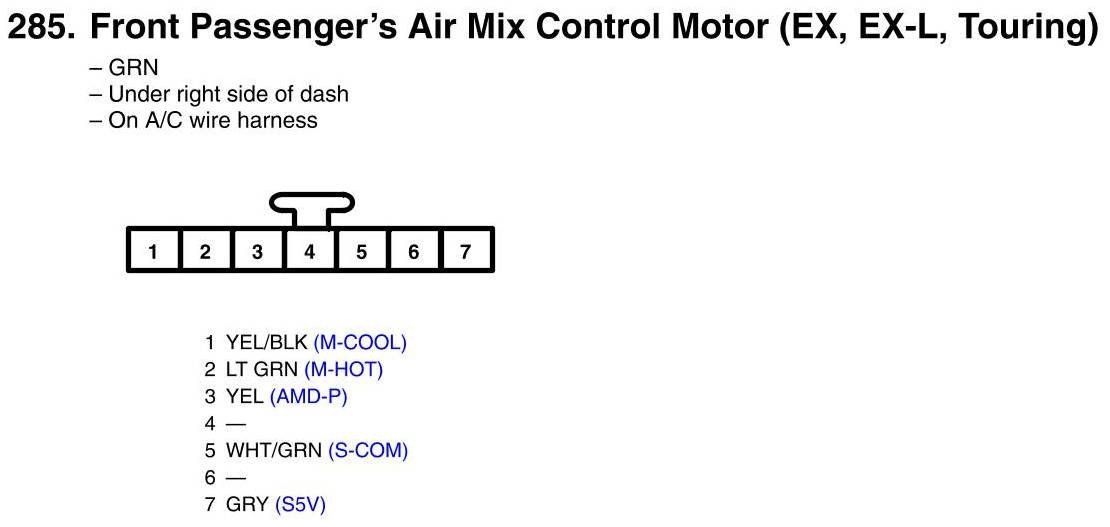

Front Passenger's Air Mix Control Motor Connector View (EX, EX-L, Touring)
Front Passenger's Air Mix Control Motor Connector View (EX, EX-L, Touring)
