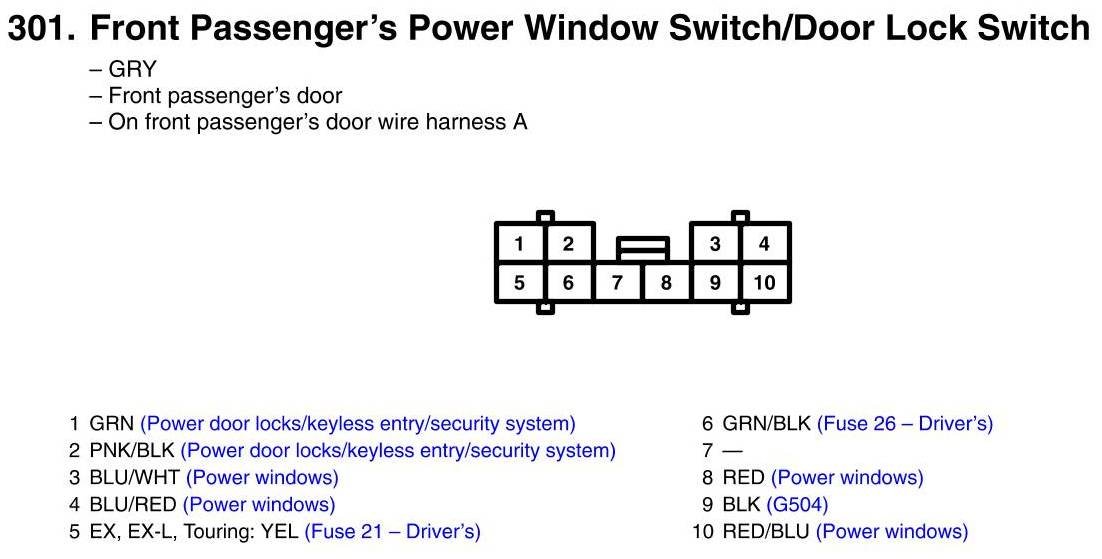

View 301 - Front Passenger's Power Window Switch/Door Lock Switch Connector View
View 301 - Front Passenger's Power Window Switch/Door Lock Switch Connector View
