Honda Truck
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Switch
>>

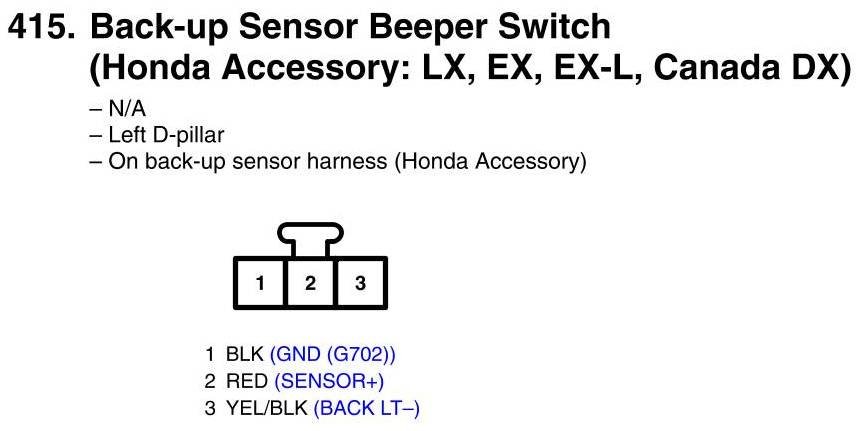

Back-Up Sensor Beeper Switch Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
Back-Up Sensor Beeper Switch Connector View (Honda Accessory: LX, EX, EX-L, Canada DX)
