Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

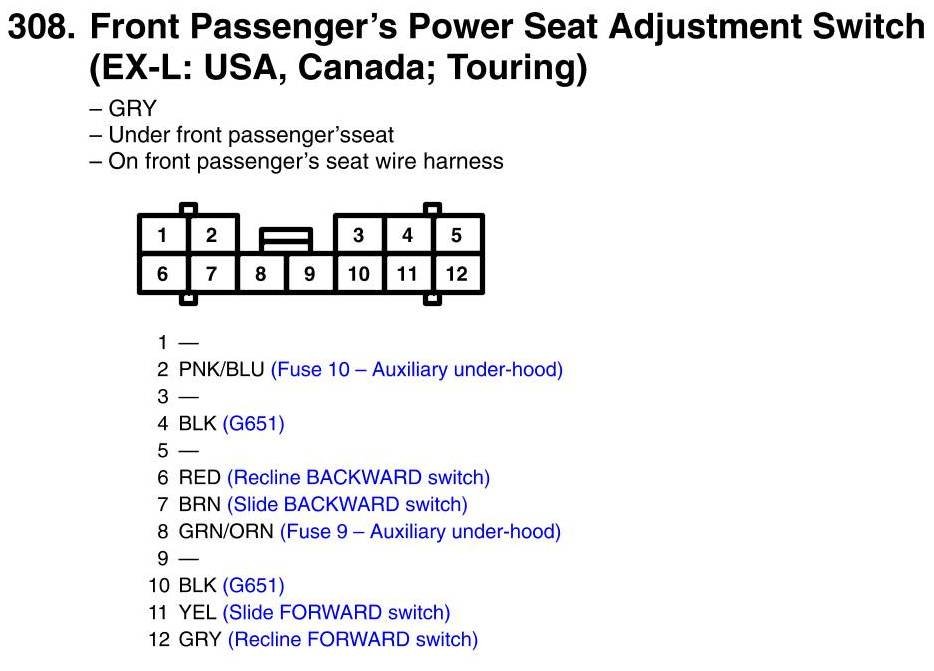

Front Passenger's Power Seat Adjustment Switch Connector View (EX-L: USA, Canada; Touring)
Front Passenger's Power Seat Adjustment Switch Connector View (EX-L: USA, Canada; Touring)
