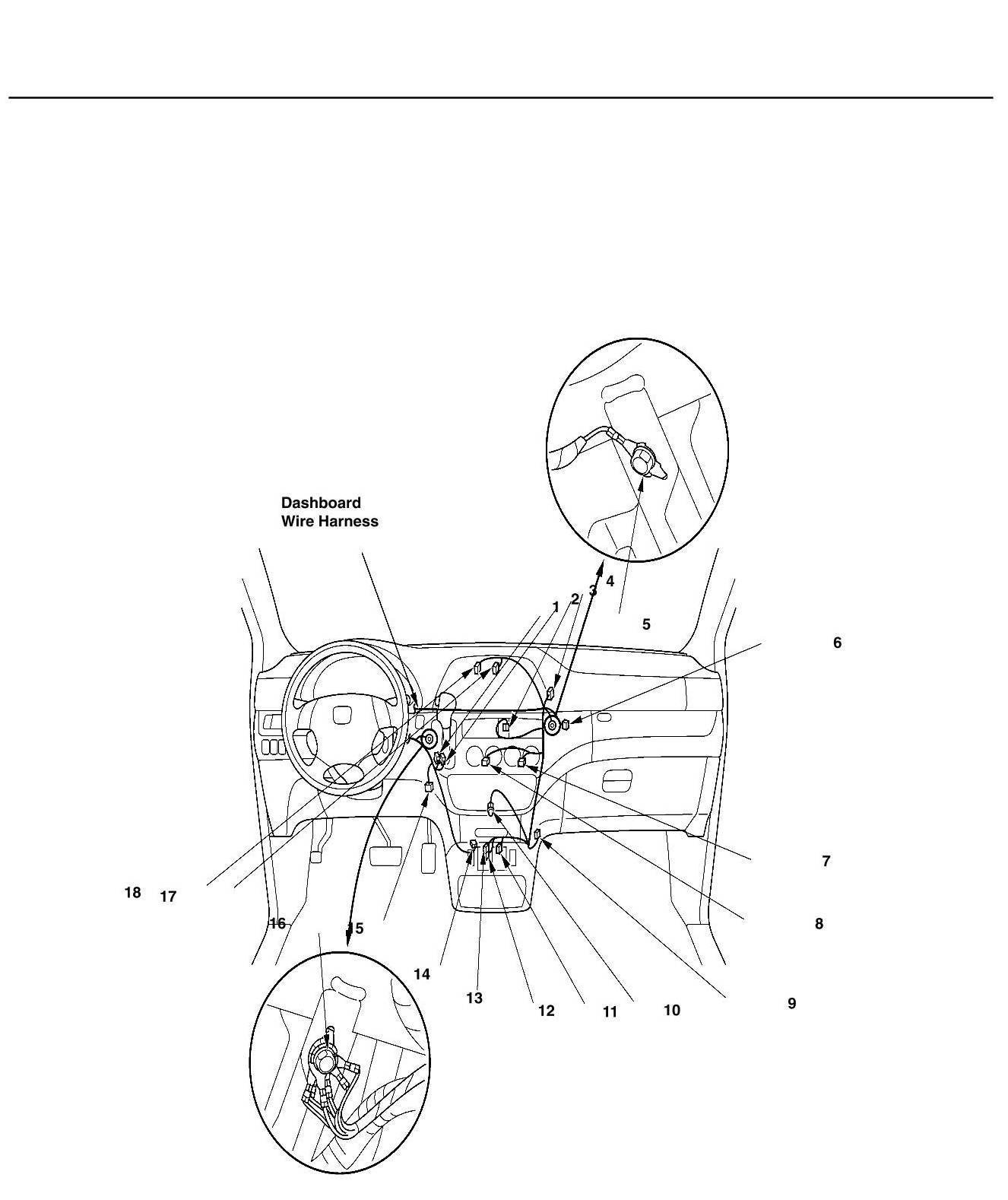

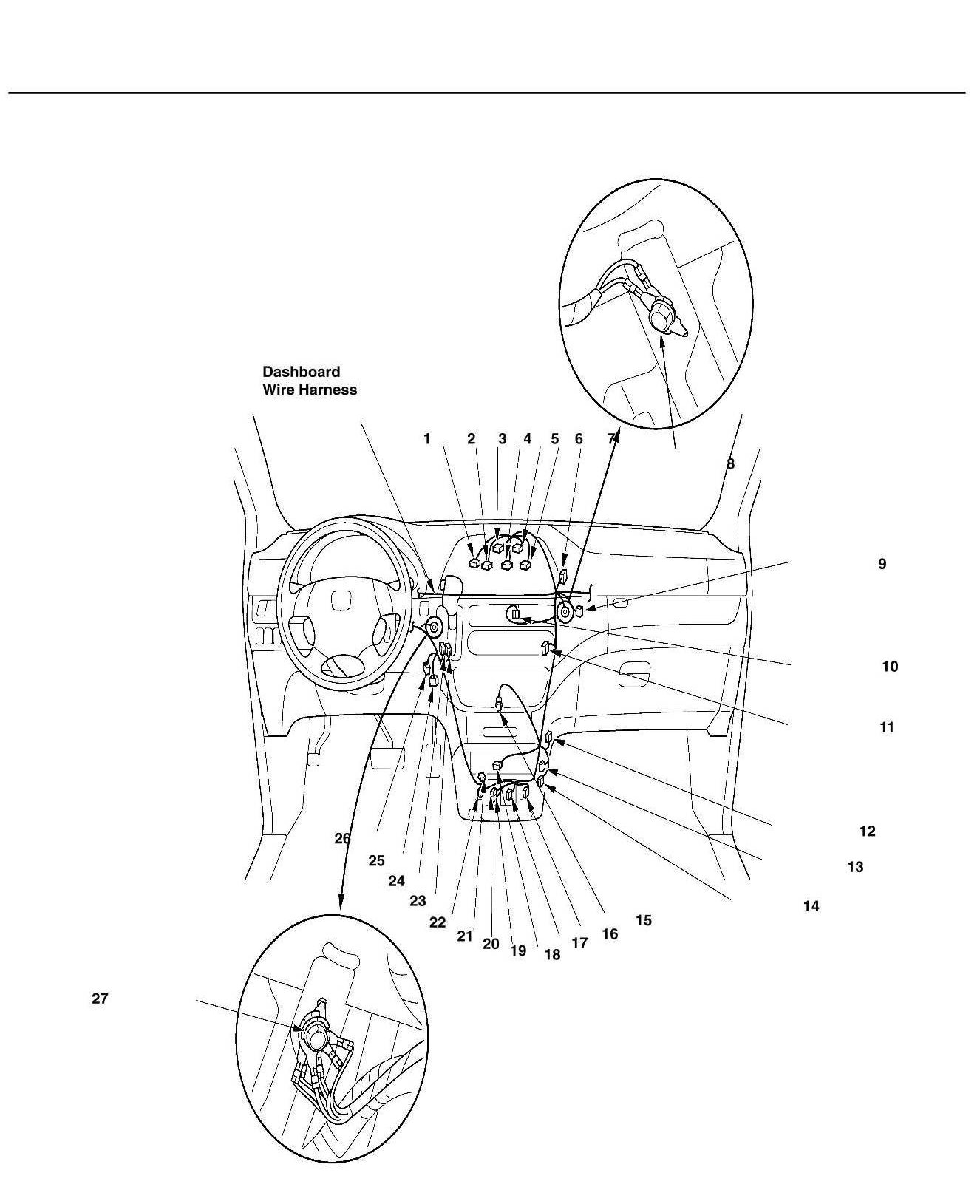

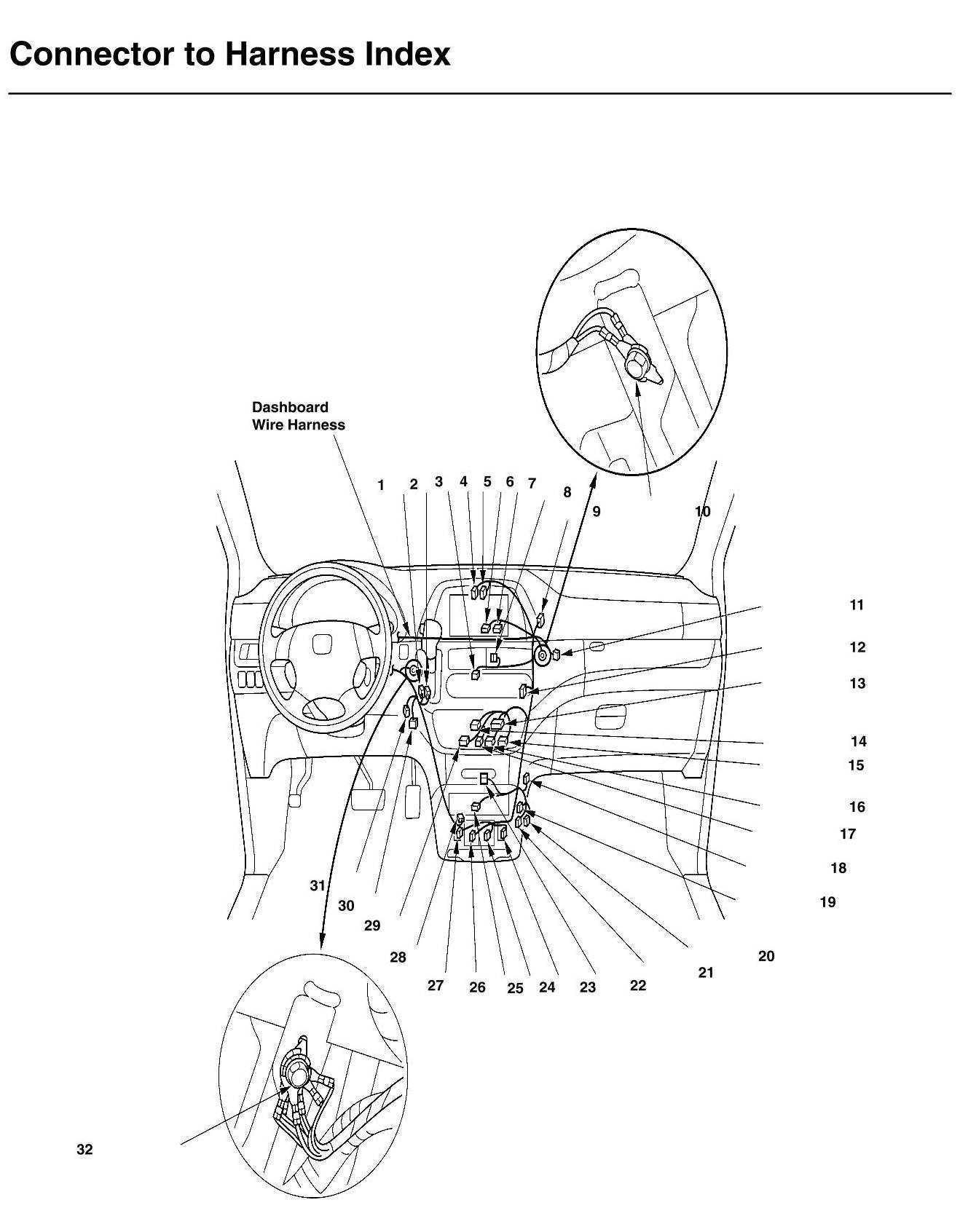

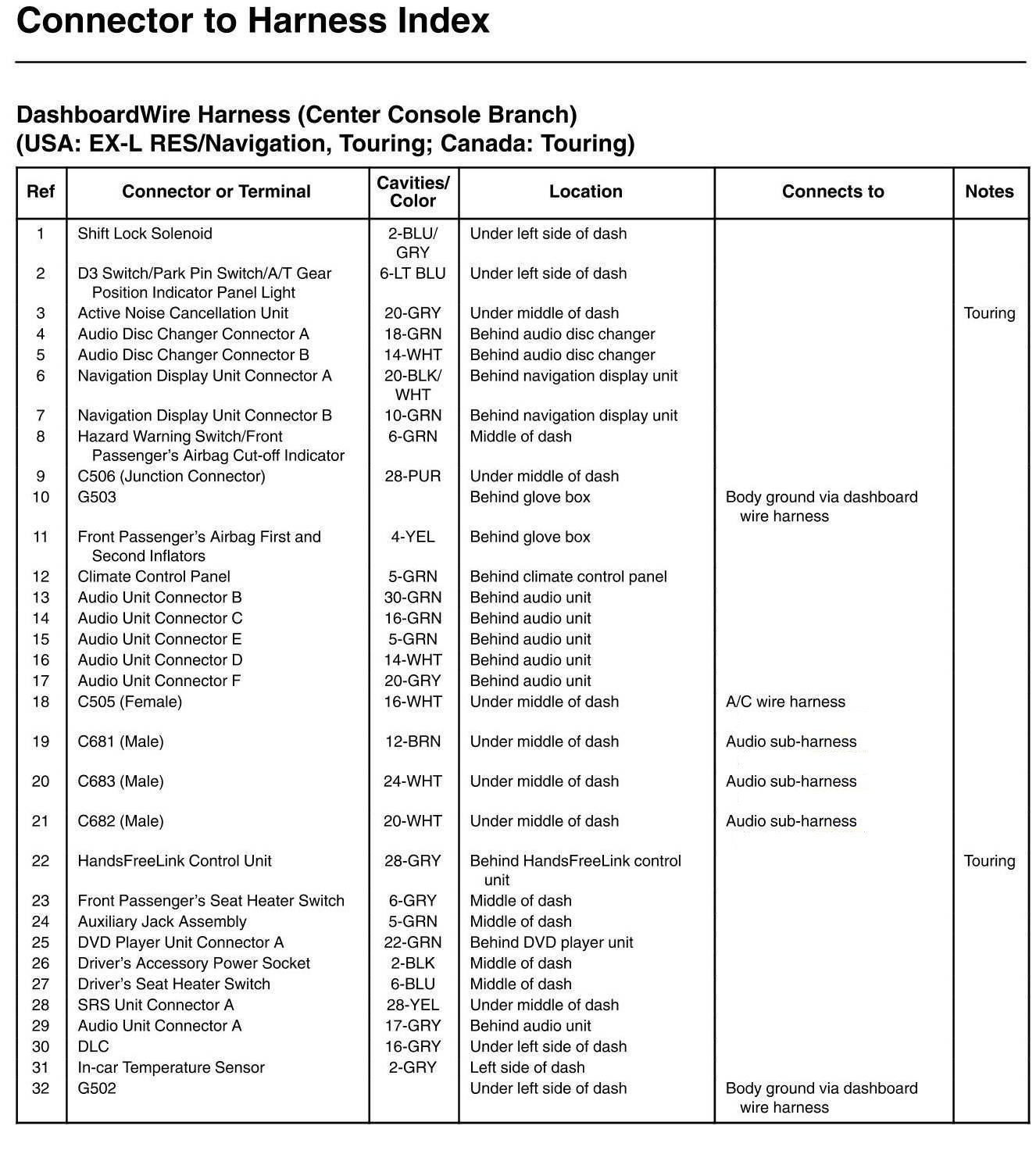

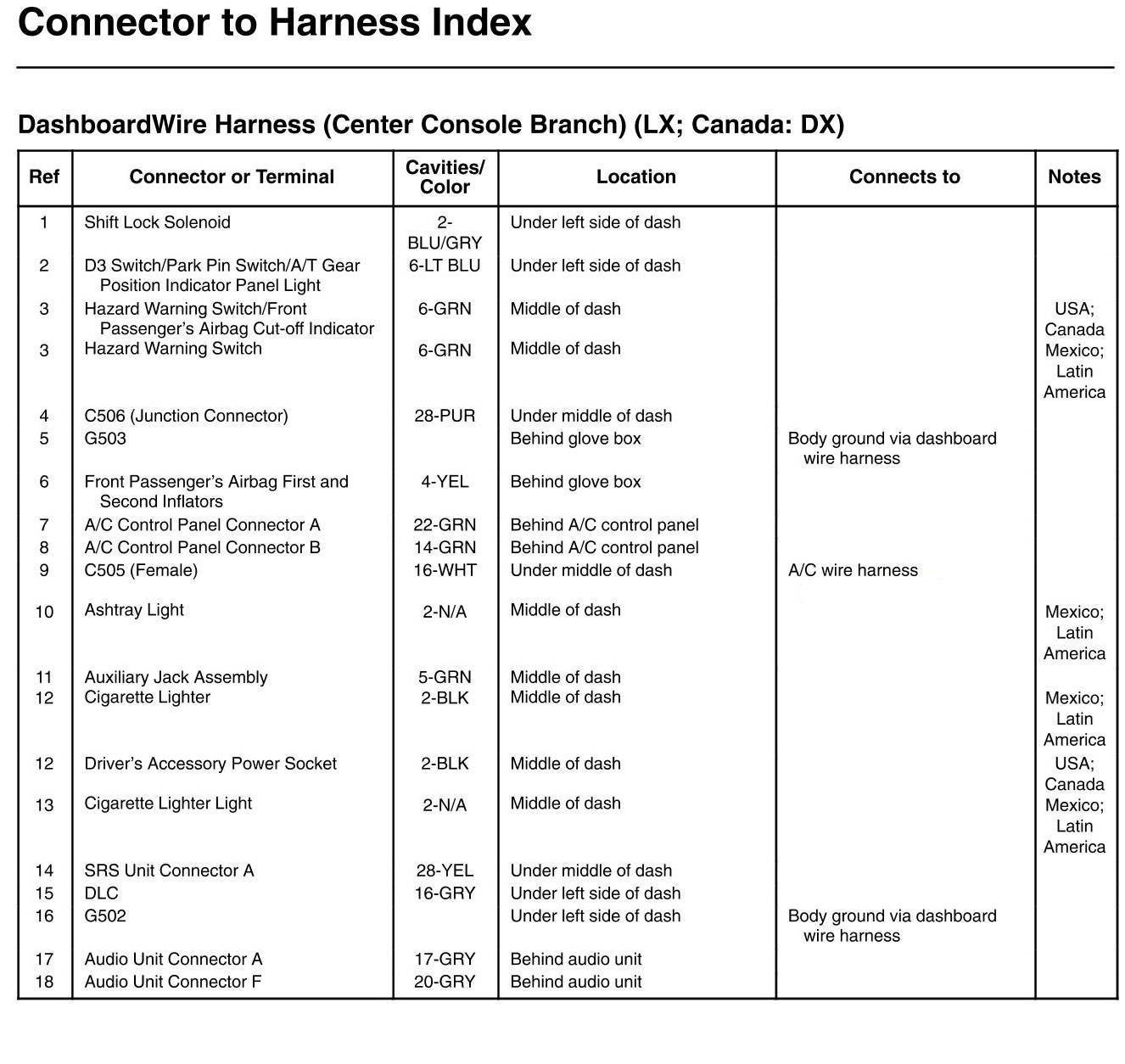

Dashboard Wire Harness (Center Console Branch) Connector And Harness Locations
Dashboard Wire Harness (Center Console Branch) Connector And Harness Locations
