Dashboard Wire Harness (Center Console Branch) Connector and Harness Locations (Without Navigation EX-L Model)

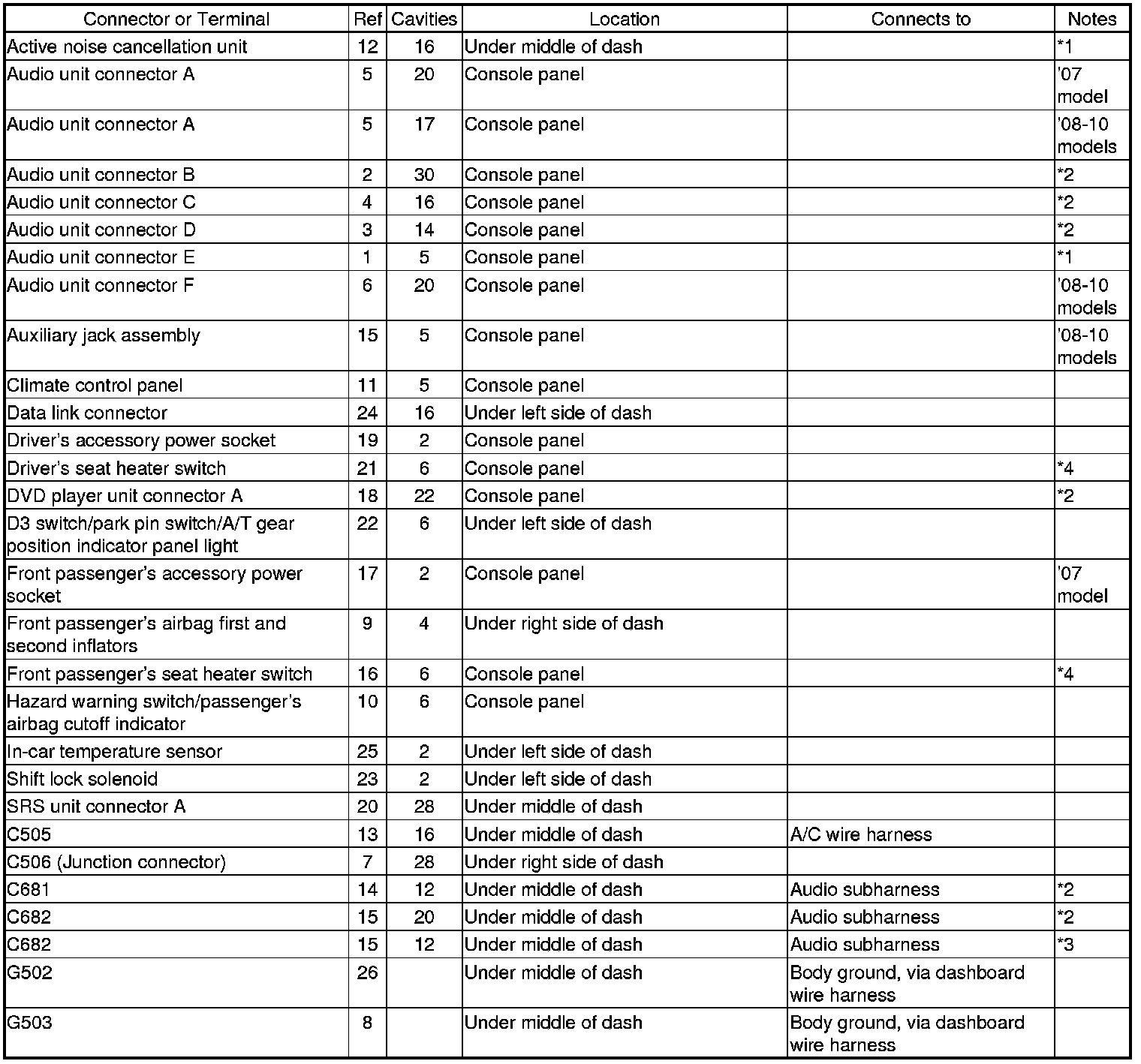

Connector and Harness Locations
Dashboard Wire Harness (EX, EX-L, and Touring models: without navigation system) (Center console branch)

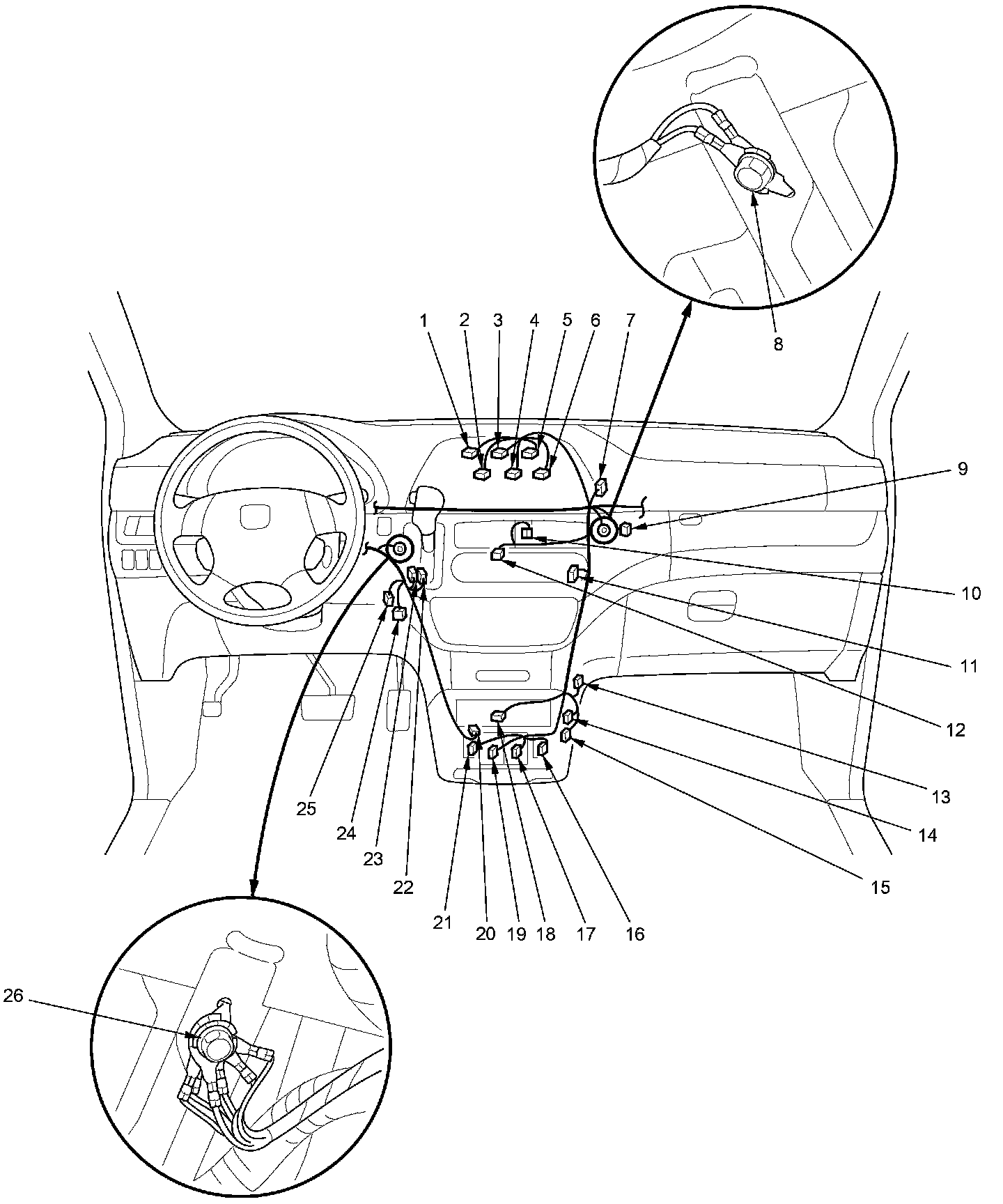

Harness View
