Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Wire Harness (J35A6 Engine)
Engine Wire Harness (J35A6 Engine)

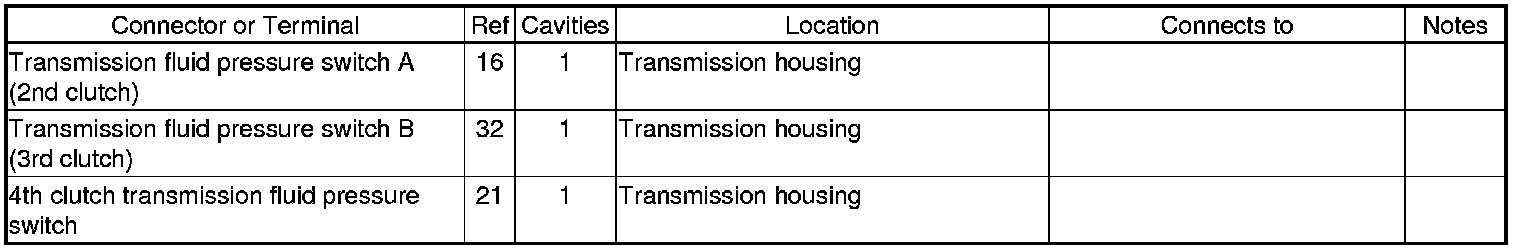

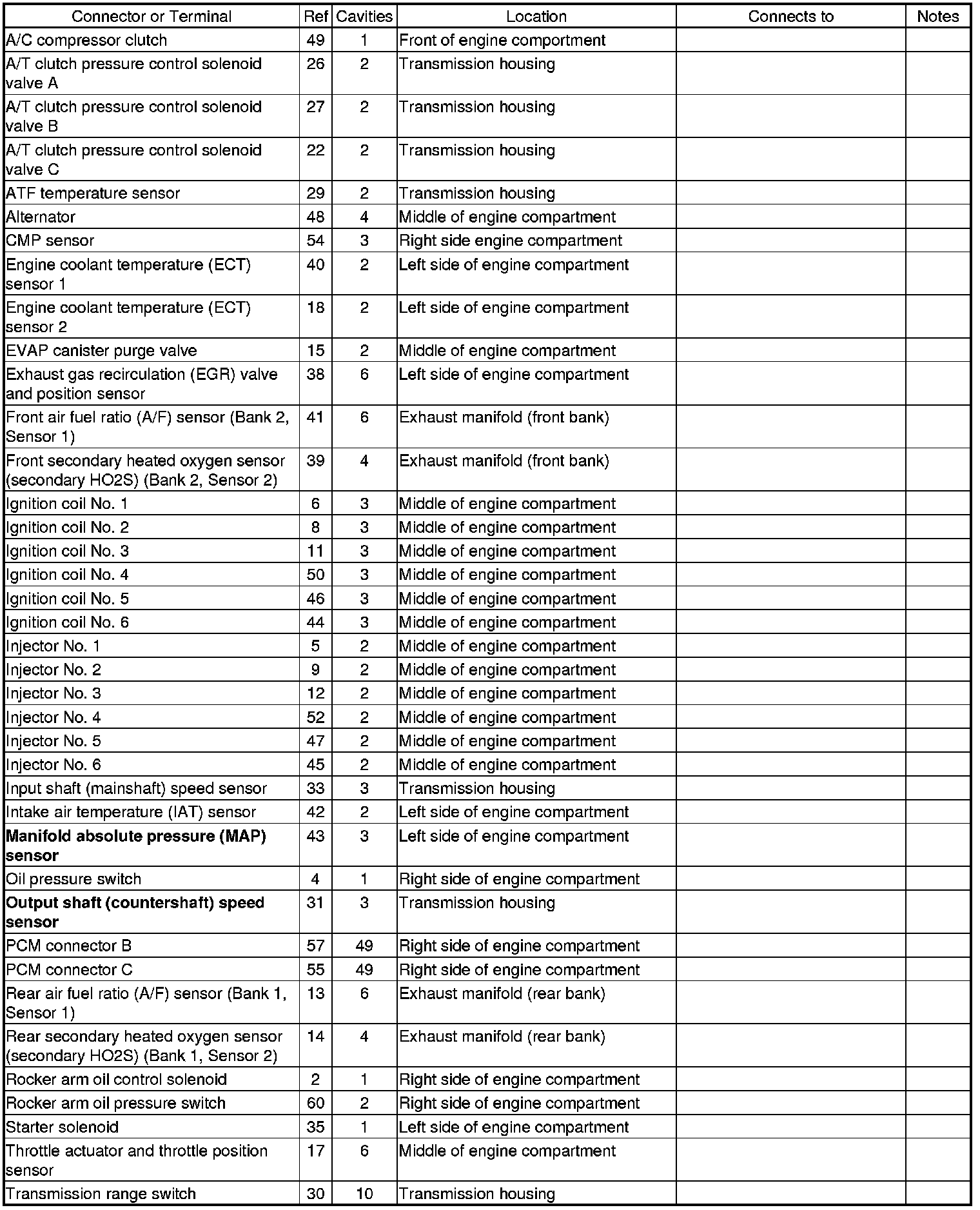

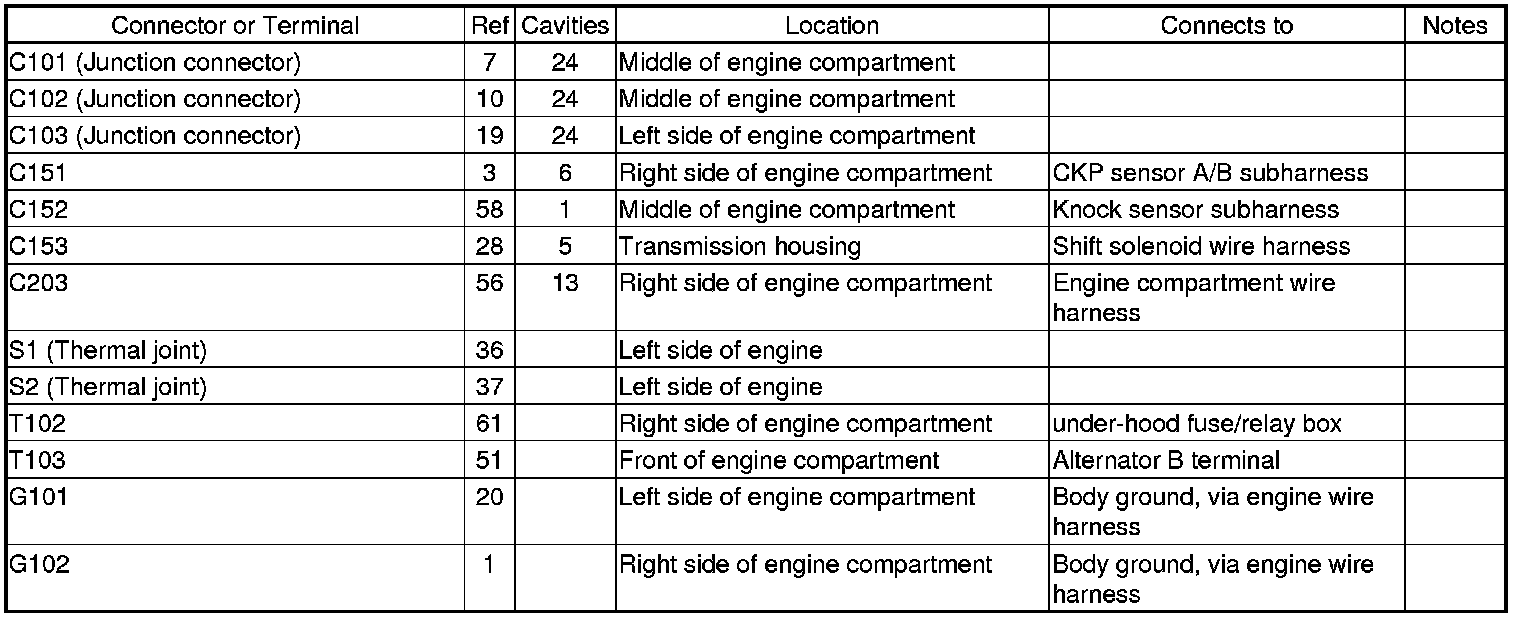

Connector and Harness Locations
Engine Wire Harness ('08-10 models: J35A6 engine)

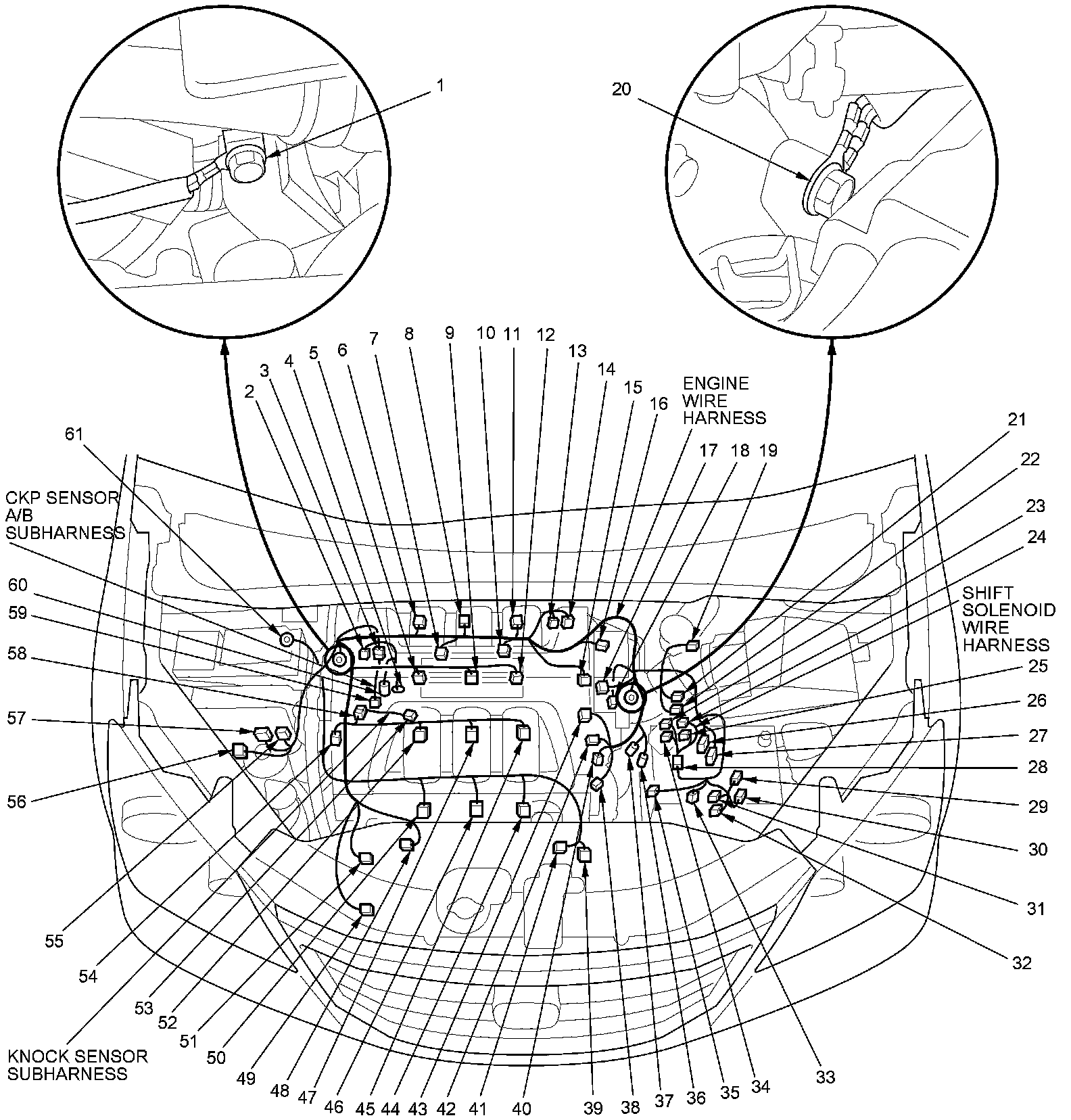

Harness View
