Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

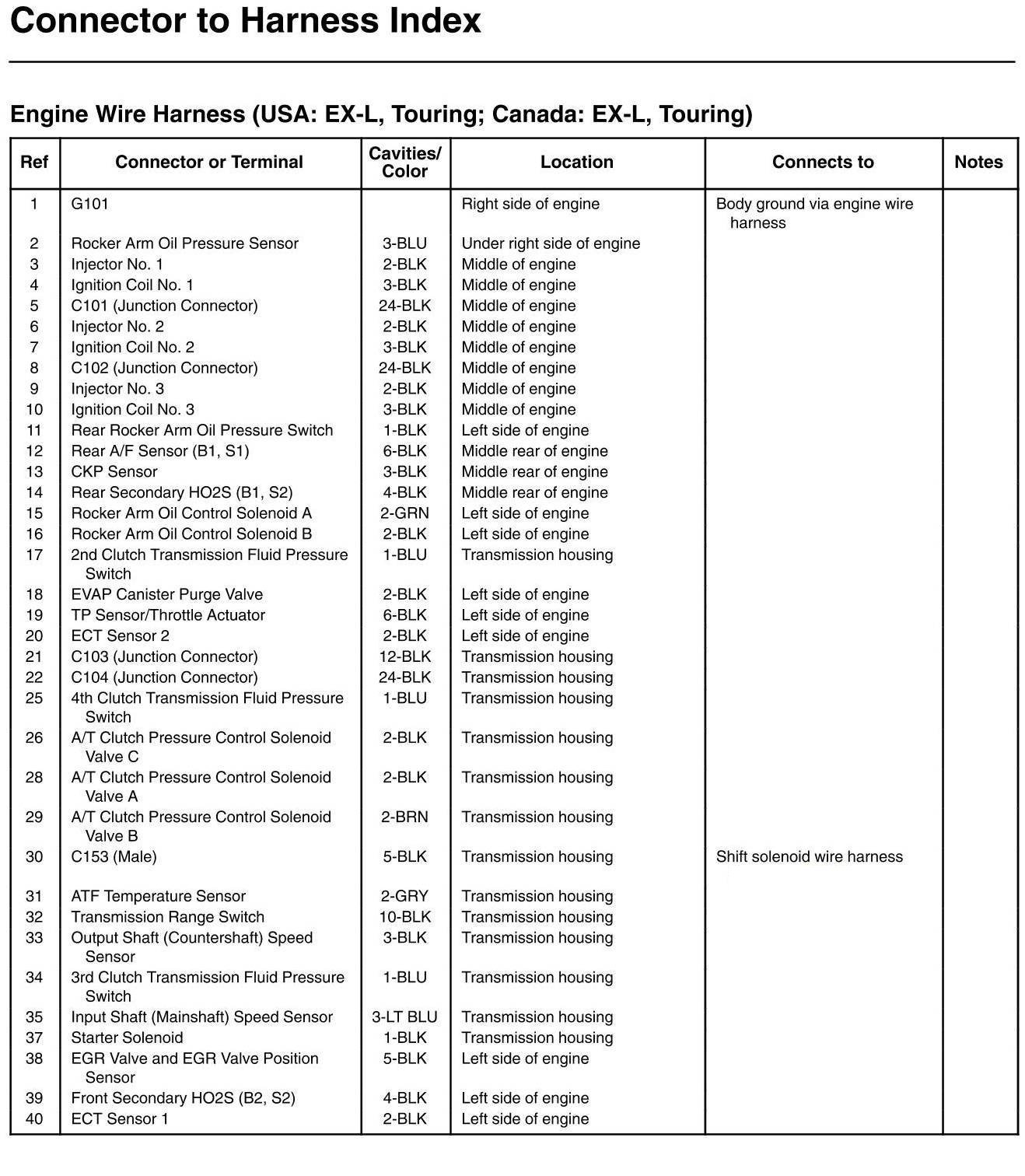

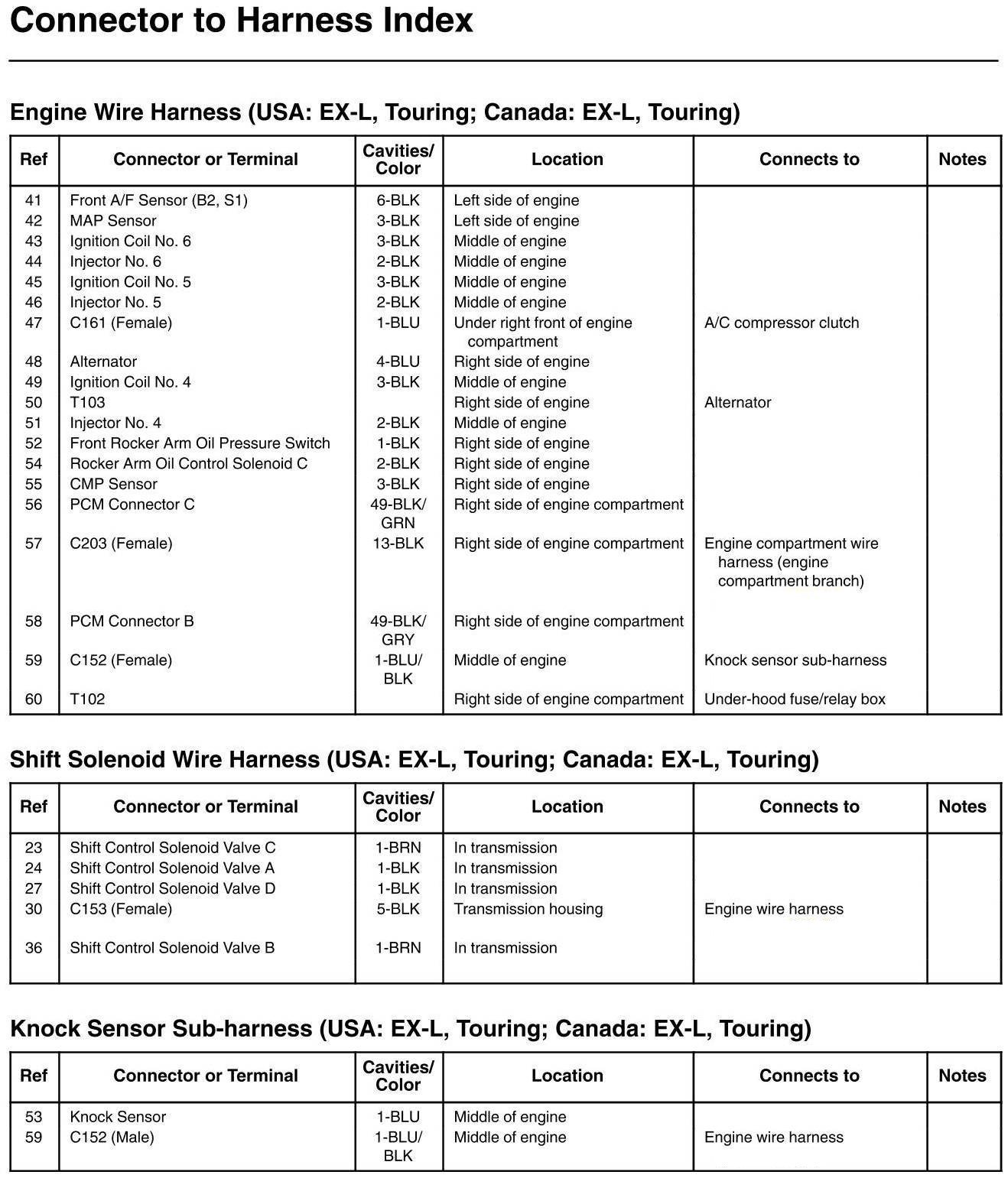

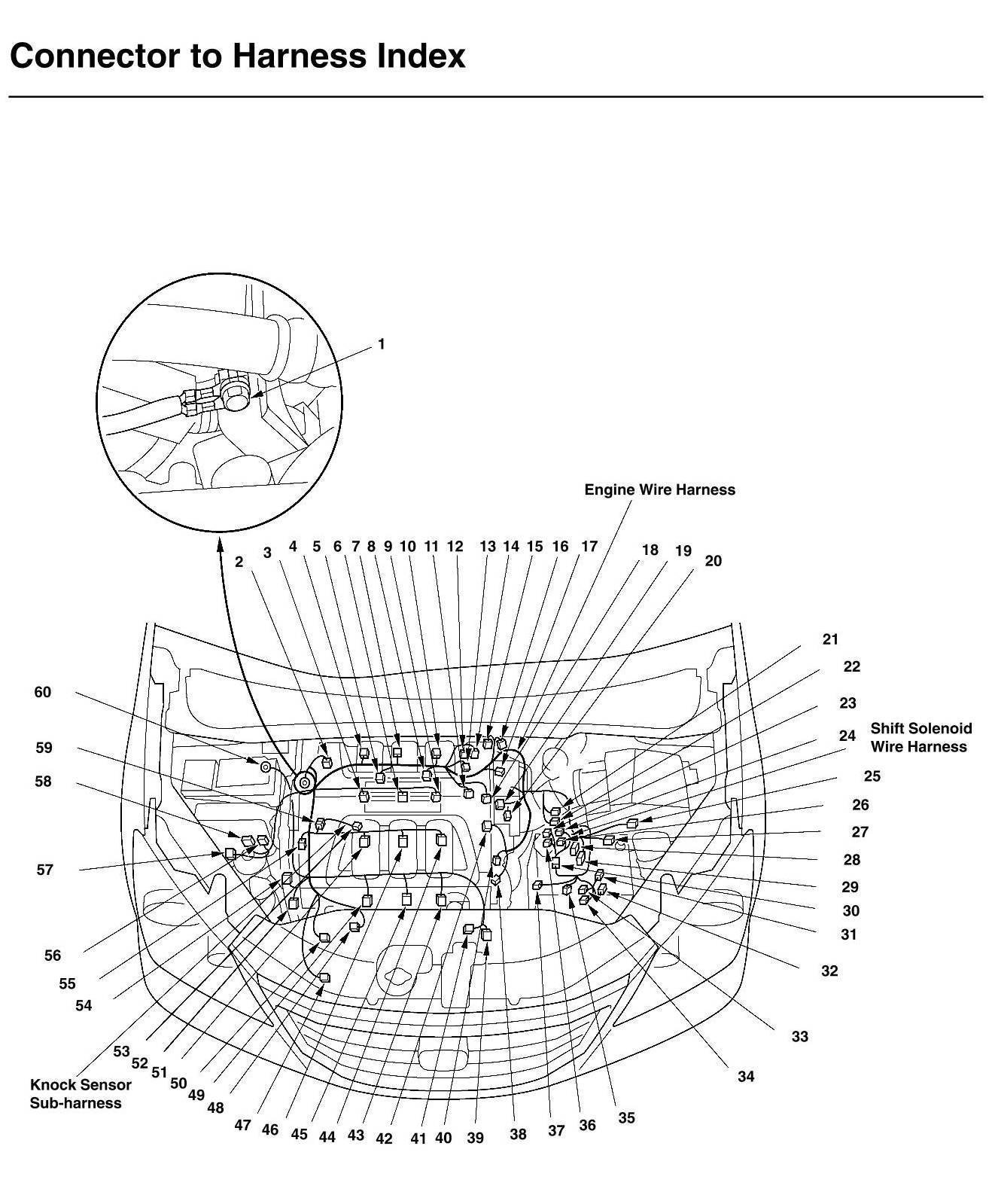

Engine Wire Harness, Shift Solenoid Wire Harness and Knock Sensor Sub-Harness Connector and Harness Locations
Engine Wire Harness, Shift Solenoid Wire Harness and Knock Sensor Sub-Harness Connector and Harness Locations
