Home >> Honda Truck >> 2010 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Front Passenger's Door Wire Harness A And Front Passenger's Door Wire Harness B Connector And Harness Locations

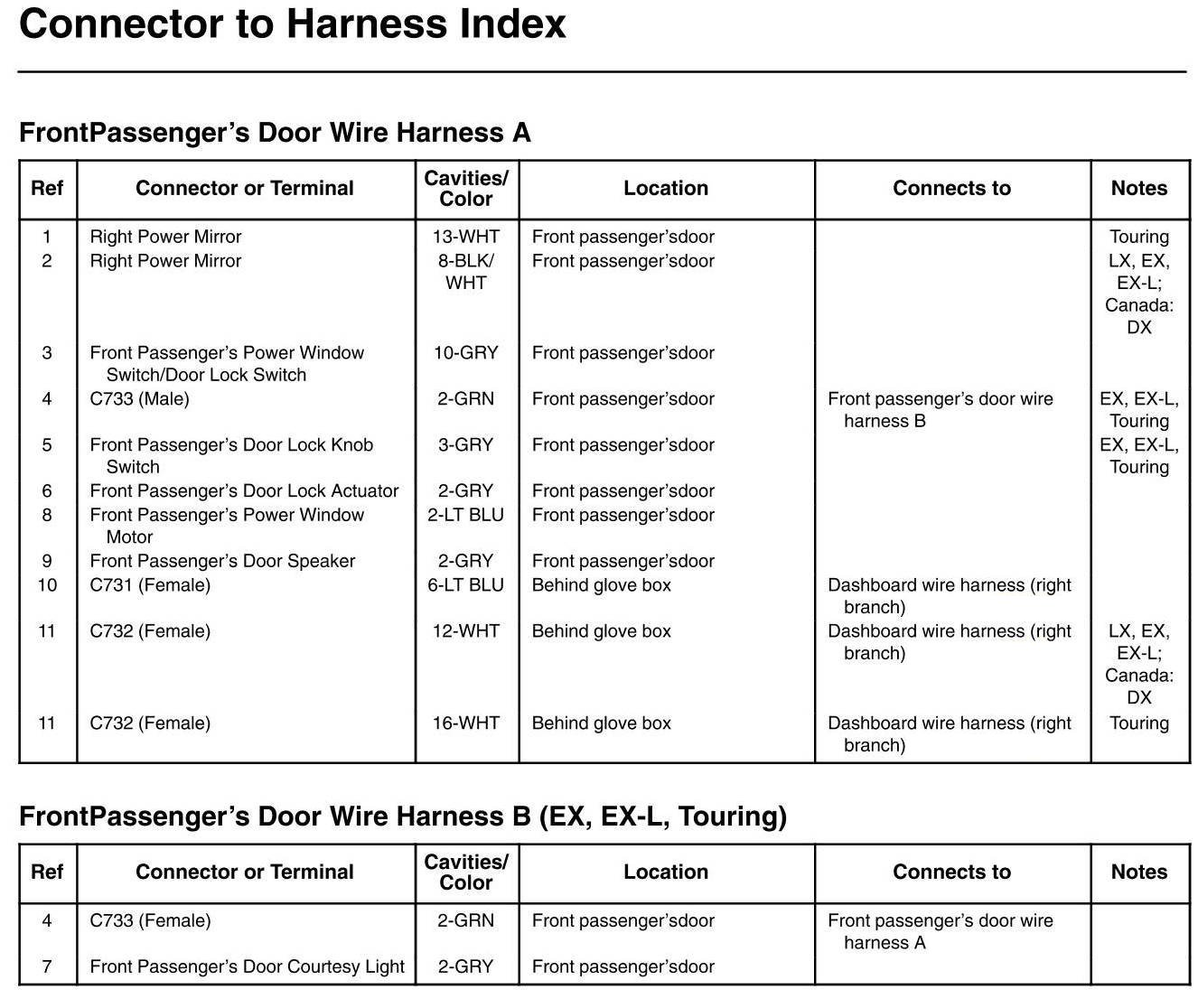

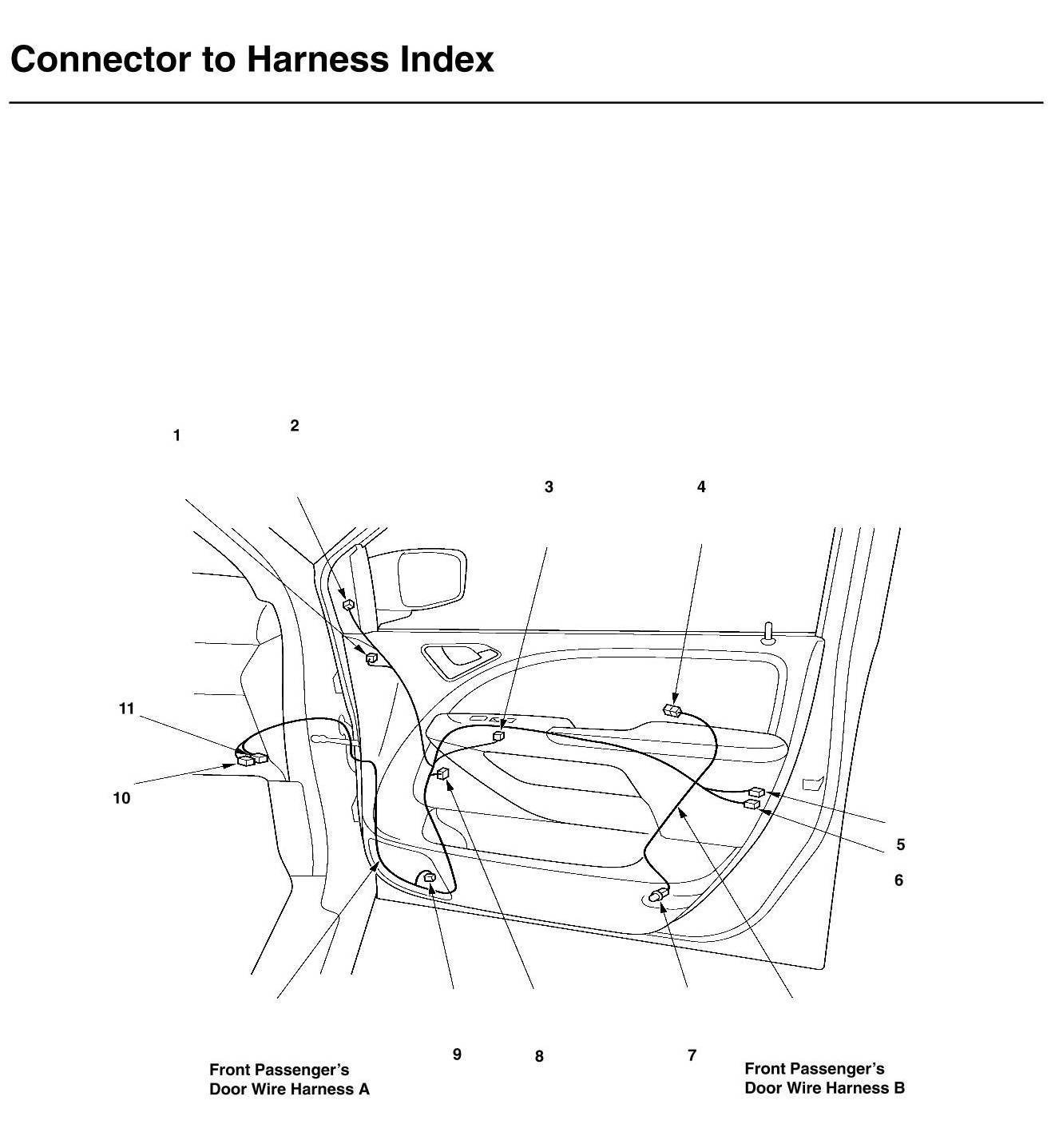

Front Passenger's Door Wire Harness A And Front Passenger's Door Wire Harness B Connector And Harness Locations
