Front Passenger's Seat Wire Harness, ODS Unit Harness And Front Passenger's Seat Subharness Connector And Harness Locations




Connector and Harness Locations

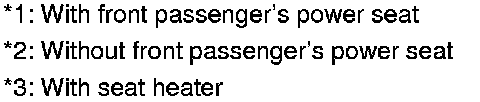

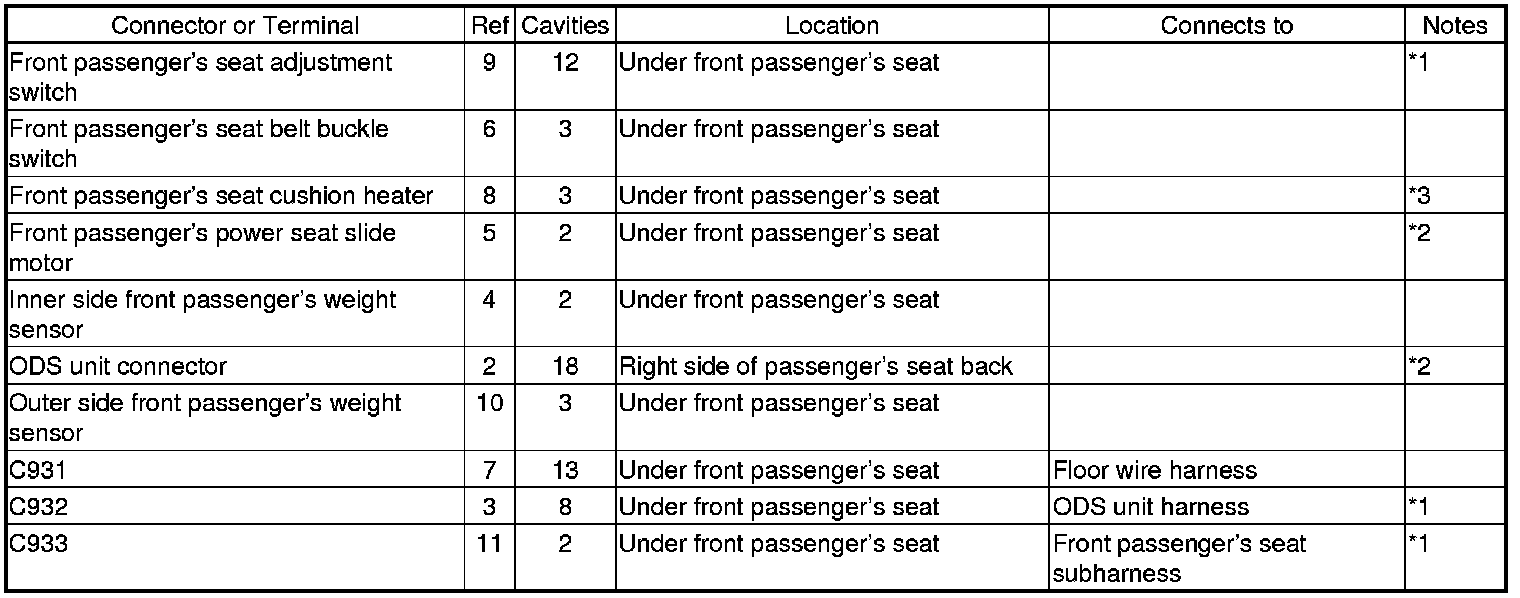

Front Passenger's Seat Wire Harness ('08-10 models)

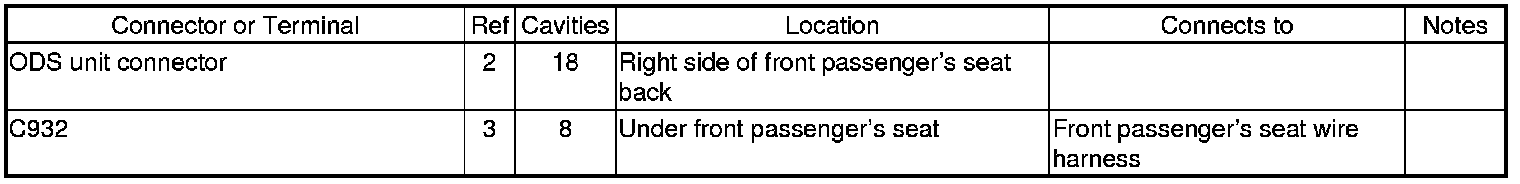

ODS Unit Harness ('08-10 models with front passenger's power seat)

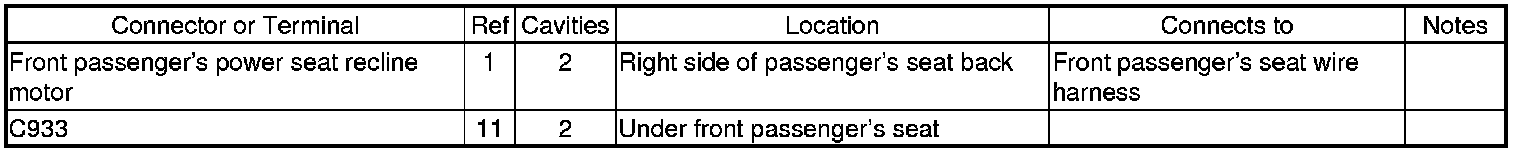

Front Passenger's Seat Subharness ('08-10 models with front passenger's power seat)

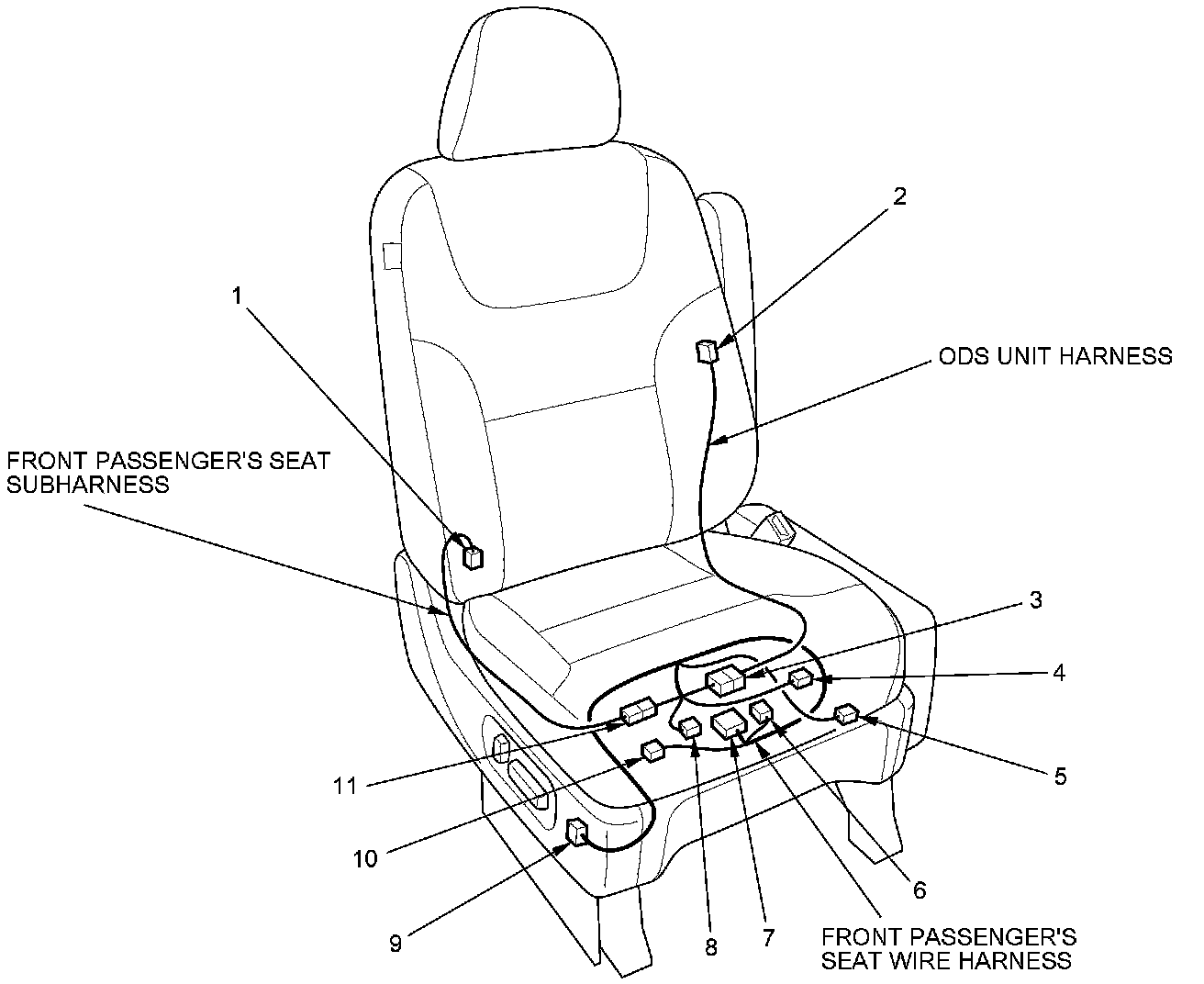

Harness View
