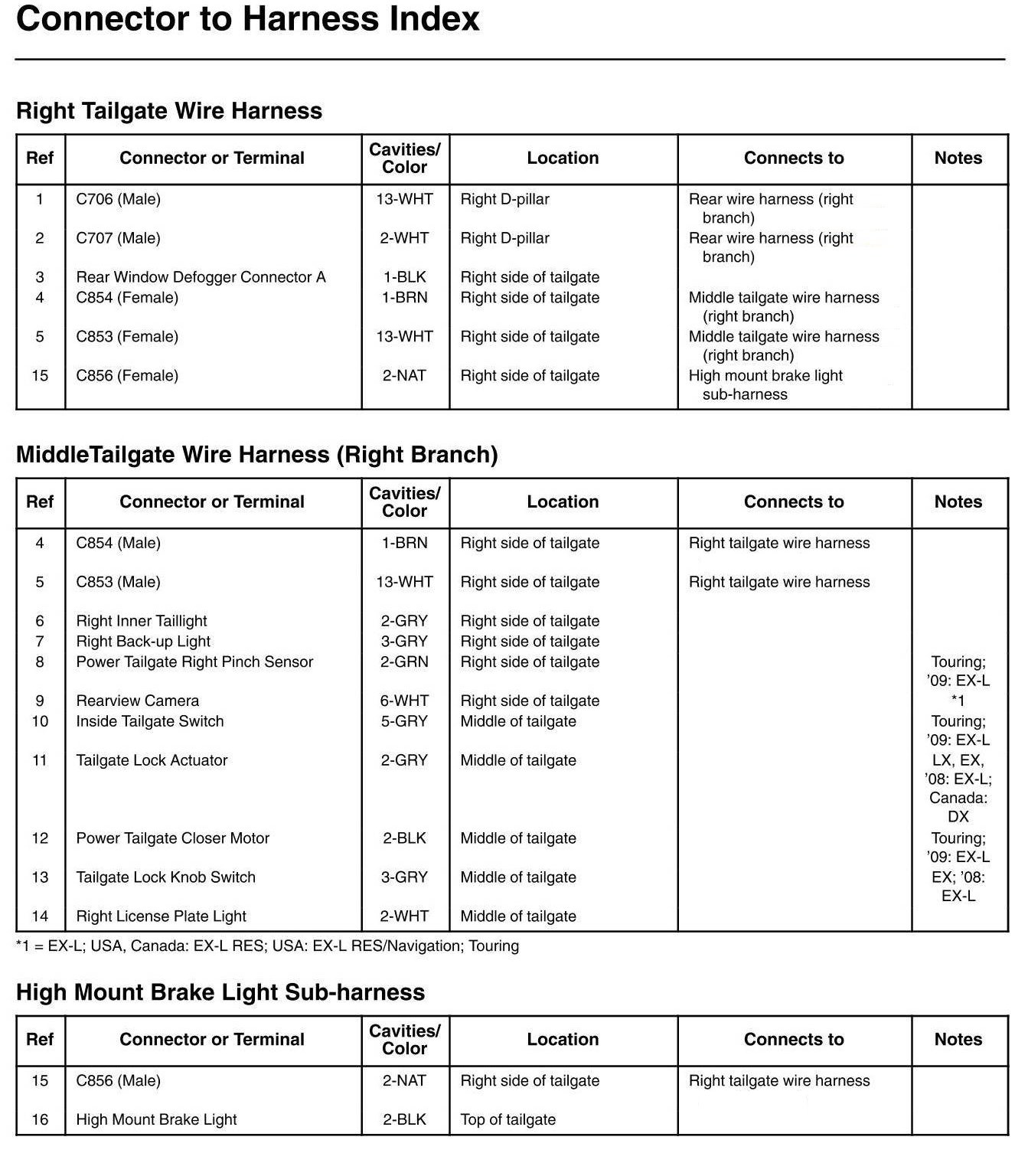

Right Tailgate Wire Harness, Middle Tailgate Wire Harness (Right Branch) and High Mount Brake Light Sub-harness Connector

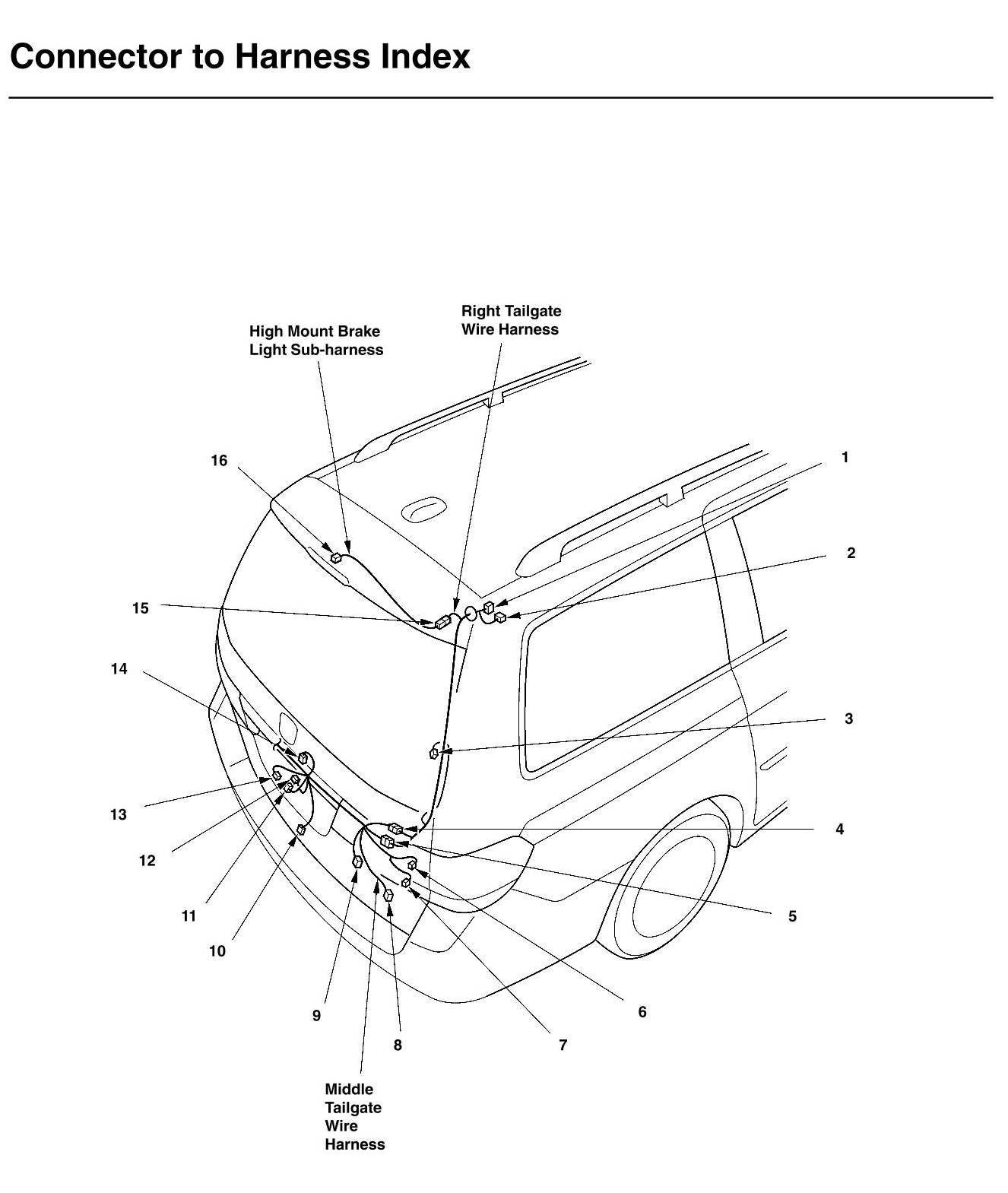

Right Tailgate Wire Harness, Middle Tailgate Wire Harness (Right Branch) and High Mount Brake Light Sub-harness Connector and Harness Locations
