Powertrain Management




Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

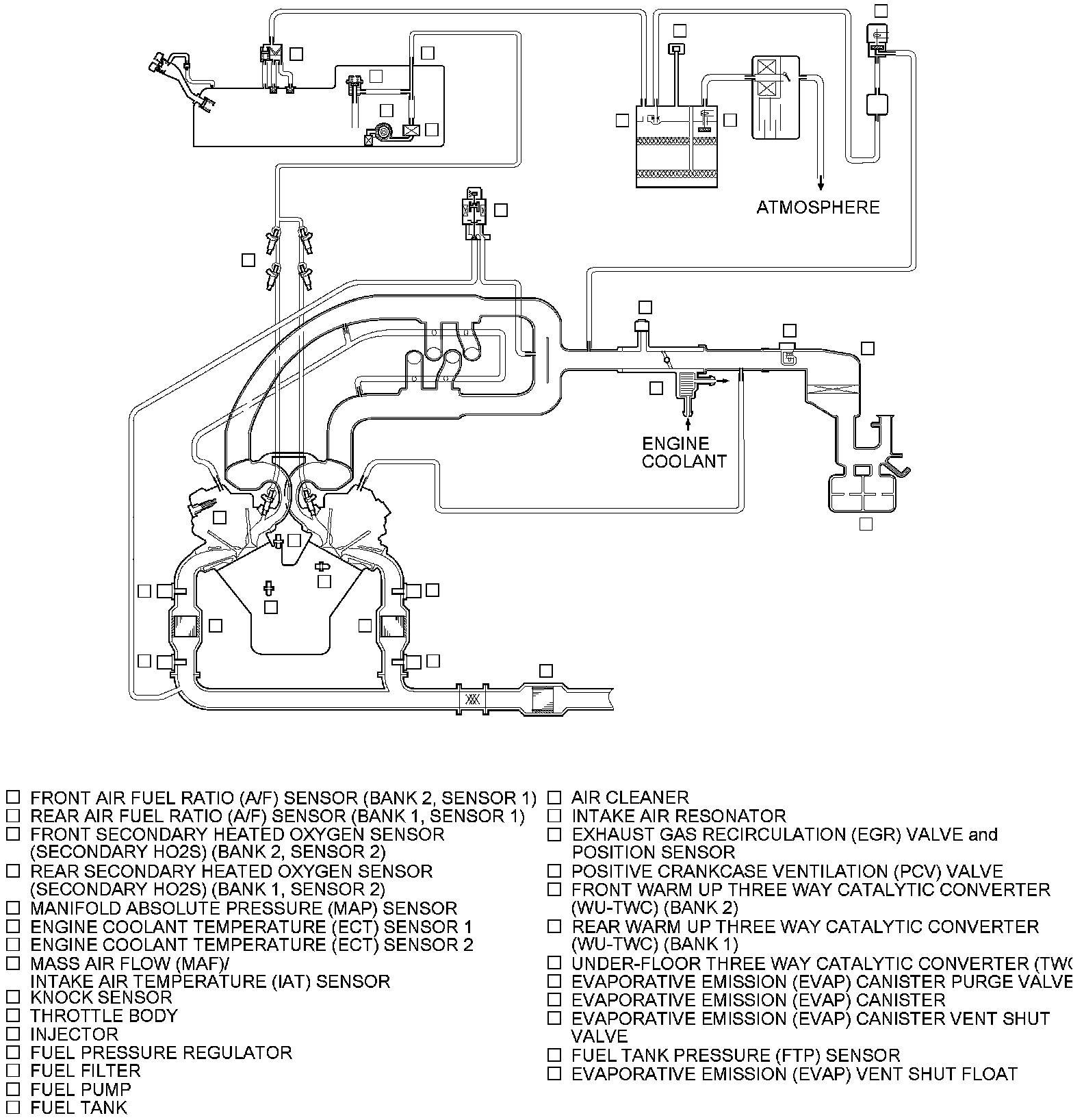

Fuel and Emissions Systems Diagram

J35A6 engine, J35A7 engine ('07 model)

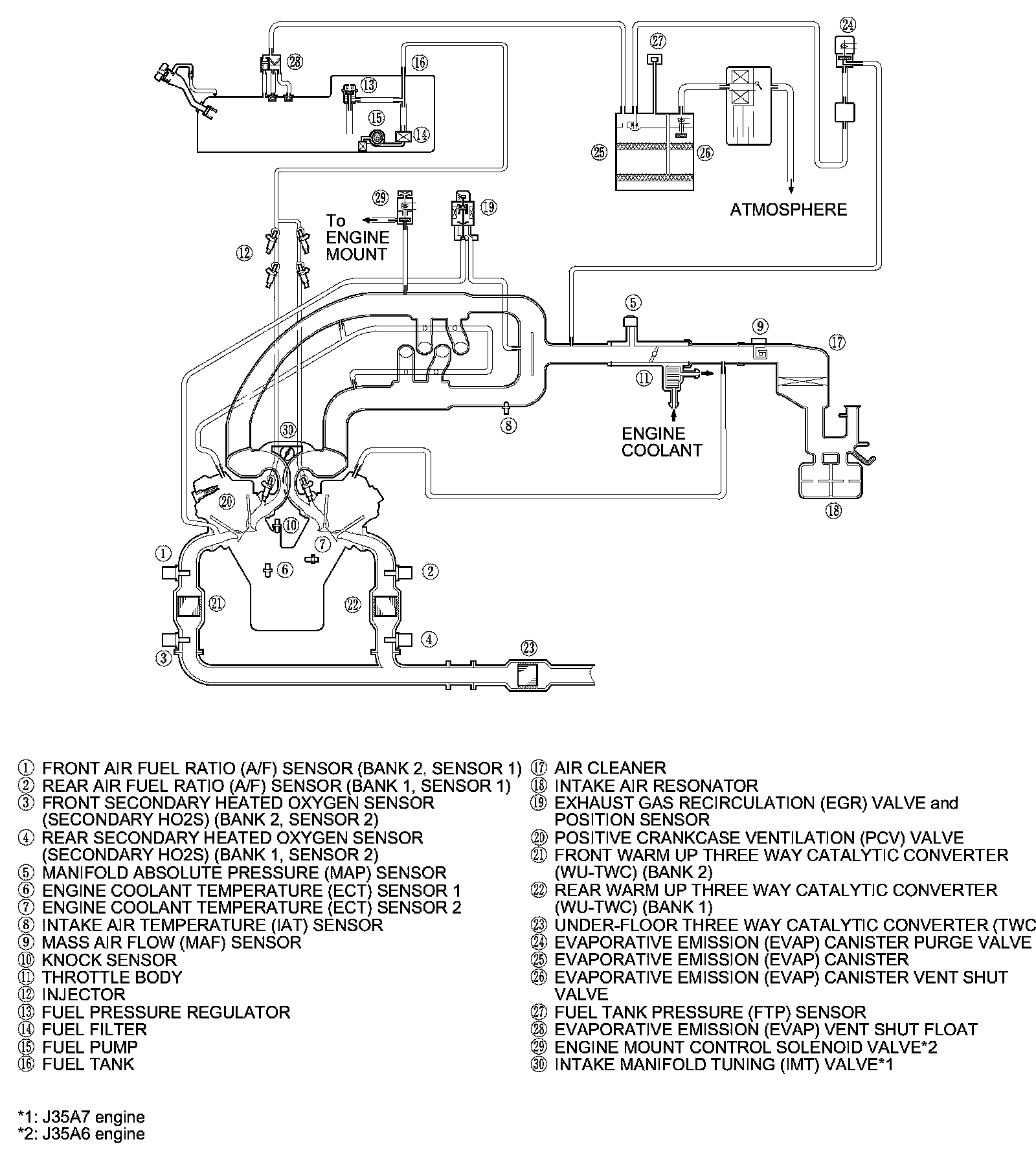

J35A7 engine ('08-10 models)





Vacuum Hose Routing

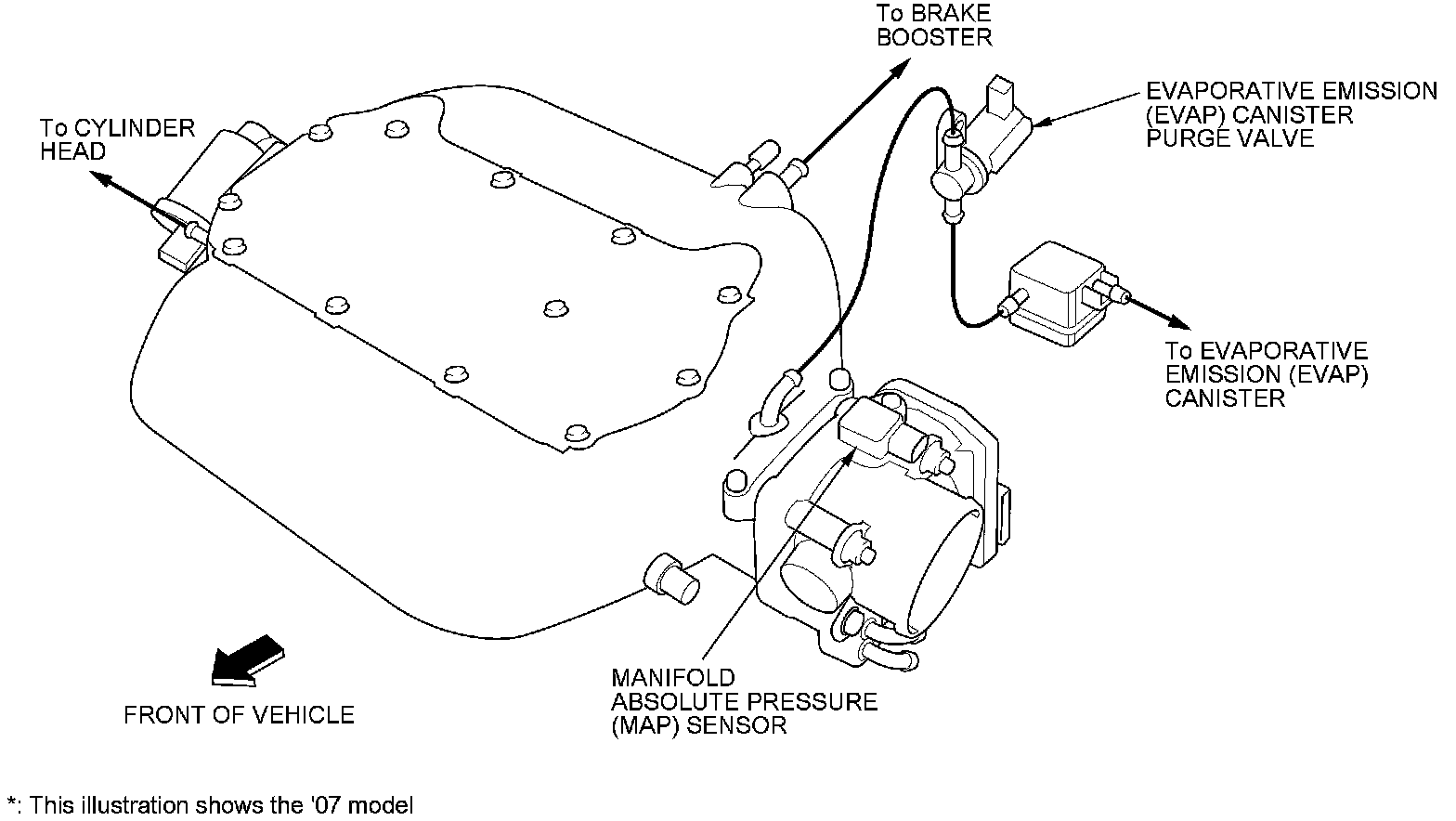

J35A6 engine

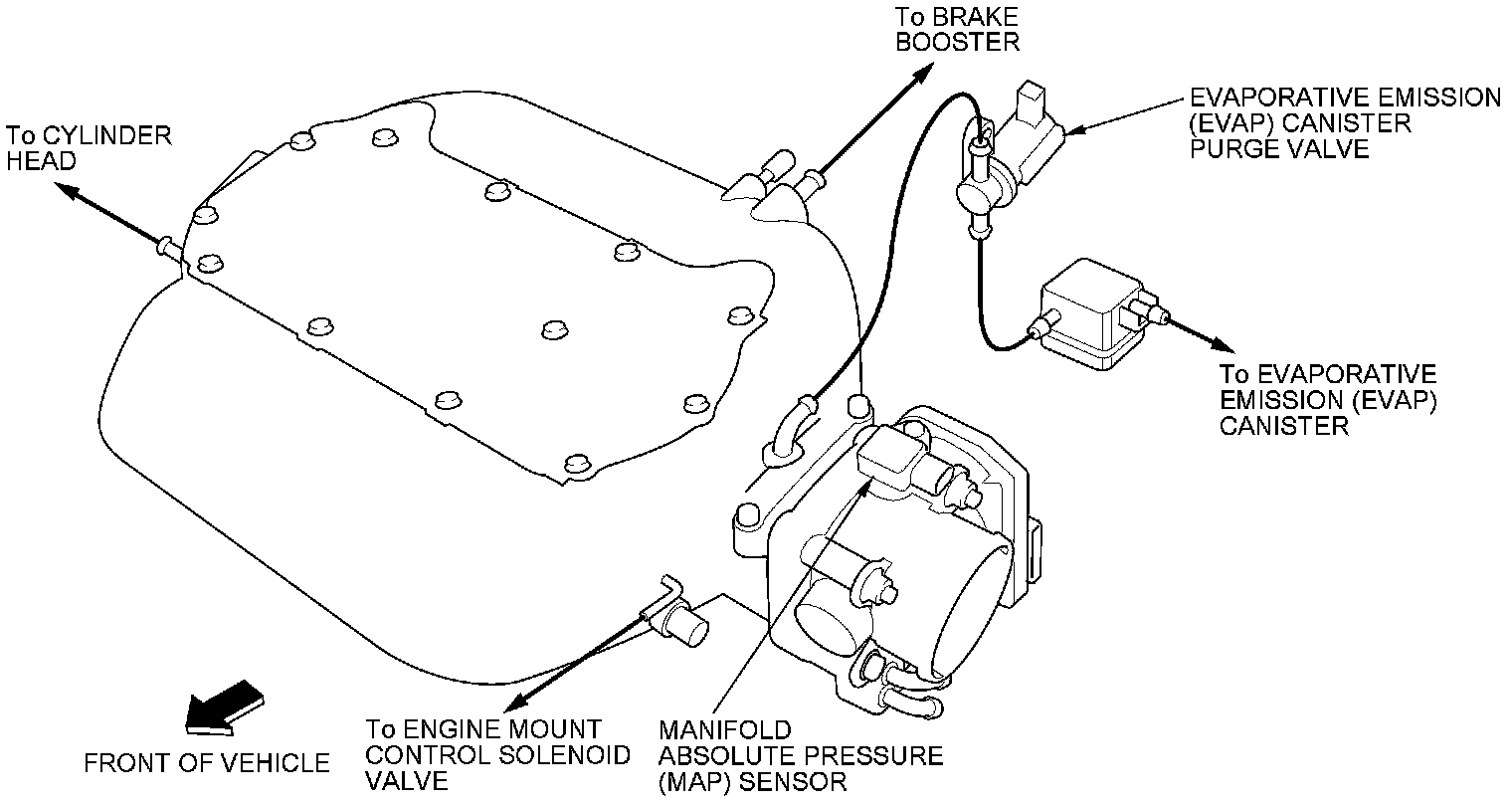

J35A7 engine
